Getting started with fine tuning with TerraTorch

TerraTorch is a package that allows you to easily use and fine tune geospatial foundation models (GeoFMs). This tutorial walks through how to get started with TerraTorch to fine tune a GeoFM on your own data and task, whatever that may be.

Achieving fine tuning and inference using TerraTorch can be achieved in five steps:

1. Organize your data: Make sure your inputs, labels, and splits are organized in a standardized way that TerraTorch generic DataModules can interpret
2. Set up your DataModule: Use TerraTorch generic DataModules to create an object which reads in your data, makes any necessary adjustments, and passes it to your model in the format it expects for training.
3. Set up your Task: Identify your chosen task, choose your model and define hyperparameters
4. Train your model: Use PyTorch Lightning to handle training and logging for a set number of epochs.
5. Run inference: Once training is complete, use your fine-tuned model to make predictions on new data and inspect embeddings.

In this demo, we will show how to fine tune Prithvi on a subset of the EuroSAT benchmark, which classifies 64x64 pixel Sentinel 2 L1C images into one of 10 classes. The demo is written in a general way to help users adapt this code to their specific use case.

Step 0: Setup

HuggingFace cache

Because we are on a shared server with shared conda environment, we need to reorient where huggingface downloads things like model weights and datasets

import os
import pathlib
import torch
import logging
import warnings

# Suppress PIL warnings about multi-band TIFFs (common with satellite imagery)
logging.getLogger('PIL.TiffImagePlugin').setLevel(logging.CRITICAL)

# Suppress other common warnings
warnings.filterwarnings('ignore', category=UserWarning)

# Specify where you want model weights/datasets to be saved
DATA_PATH = '/Users/kellycaylor/dev/geoAI/data'

# Set up environment variables that are used by HuggingFace
os.environ["HF_HOME"] = os.path.join(DATA_PATH, "hfhome")
os.environ["HF_HUB_CACHE"] = os.path.join(DATA_PATH, "hub")
os.environ["HF_DATASETS_CACHE"] = os.path.join(DATA_PATH, "datasets")
os.environ["TRANSFORMERS_CACHE"] = os.path.join(DATA_PATH, "transformers")

Step 1: Get your data in the right format for TerraTorch

TerraTorch makes your life easier if you organize your data in standard ways. Specifically, following these conventions will allow you to use their generic DataModules and save your the trouble of writing your own.

File organization

• Classification: Organize your images into different folders depending on their class (this is how EuroSAT is organized). Alternatively, have a metadata file listing
• Segmentation/regression: Have images and their labels (masks or continuous outputs) have the same name but followed by an image vs. mask or label identifier (e.g. image: Im_1_img.tif and Im_1_mask.tif

EuroSAT classification example

We can retrieve a subsample of the EuroSAT dataset using torchgeo. Luckily, we will show it is already in the format TerraTorch expects for a classification task.

from torchgeo.datasets import EuroSAT100 # 100 image subset from EuroSAT

EuroSAT100(
    root=DATA_PATH, # make sure you have defined the path where you want data saved
    split='train',
    download=True,
)

EuroSAT100(
    root=DATA_PATH,
    split='val',
    download=True,
)

EuroSAT100(
    root=DATA_PATH,
    split='test',
    download=True,
)

Dataset EuroSAT100
    Number of datapoints: 20
    Root location: /Users/kellycaylor/dev/geoAI/data/ds/images/remote_sensing/otherDatasets/sentinel_2/tif

When opening inspecting the downloaded dataset, you will find that the data will be stored at the following path:

# Define the location of the saved EUROSAT data
EUROSAT = DATA_PATH + "/ds/images/remote_sensing/otherDatasets/sentinel_2/tif/"

There is one folder for each class, each containing .tif files with the images to be classified.

# List the folders each containing images for a given EuroSAT class
from pathlib import Path

class_paths = [item for item in Path(EUROSAT).iterdir()]
class_names = [item.name for item in class_paths]
print(class_names)

['Forest', 'River', 'Highway', 'AnnualCrop', 'SeaLake', 'HerbaceousVegetation', 'Industrial', 'Residential', 'PermanentCrop', 'Pasture']

Specify splits

To specify which images belong to which split, you have two options:

• provide .txt files that have the names of the images in each split in them
• organize the splits into different folders

EuroSAT example

In the case of EuroSAT, the names of the images belonging to each split are saved as .txt files.

# Save the paths to each split for use in the DataModule setup

TRAIN_SPLIT = DATA_PATH + '/eurosat-100-train.txt'
VAL_SPLIT = DATA_PATH + '/eurosat-100-val.txt'
TEST_SPLIT = DATA_PATH + '/eurosat-100-test.txt'

Step 2: Get your DataModule set up

Inspect your data

It is important to have a good grasp of the contents of your data in order to set up the DataModule properly. It can therefore be useful to do a bit of exploration and visualization.

# Read in the first image in each class for inspection

import rasterio
import numpy as np
import matplotlib.pyplot as plt
from pathlib import Path

# get the first image in each class
image_sample = [next(folder.iterdir()) for folder in class_paths] # list of 10 images

# read all 10 sample images
ims = [rasterio.open(image).read() for image in image_sample]

Image statistics

By inspecting the first image, we find that we have 13 bands per image (corresponding to the 13 Sentinel-2 L1C bands) and images are 64x64 pixels. Neither of these is what Prithvi expects, so it’s important to know this so we can adjust it in the DataLoader.

We also note that the units are in reflectance values.

# print some statistics for the first image
print("Shape:", ims[1].shape)
print("Means by band:", ims[1].mean(axis=(1,2)))
print("Stds by band:", ims[1].std(axis=(1,2)))

Shape: (13, 64, 64)
Means by band: [1288.97705078 1025.03173828  944.13305664  725.19604492  888.26782227
 1701.43383789 2149.0300293  2014.53515625  424.36669922    8.78369141
 1140.24414062  637.13842773 2281.08129883]
Stds by band: [  50.77284027  110.01204421  197.95281388  304.08487263  371.85495521
  836.55788254 1173.53766023 1202.2317915   191.06255061    1.39687418
  787.56197144  505.03331818 1318.82967564]

Visualization

def to_rgb(img, bands=[3,2,1]):

    # select the r,g,b bands
    rgb = img[bands].astype(float)

    # Follow EuroSAT guidelines for visualization
    # clip to a max of 2750
    # normalize to 0-1
    rgb = np.clip(rgb, 0, 2750) / 2750

    # go from (CxWxH) to (WxHxC)
    rgb = np.transpose(rgb, (1,2,0))

    return rgb

fig, axes = plt.subplots(2, 5, figsize=(15, 6))
axes = axes.ravel()

for i, (ax, img, name) in enumerate(zip(axes, ims, class_names)):
    rgb = to_rgb(img)
    ax.imshow(rgb)
    ax.set_title(name)
    ax.axis("off")

plt.tight_layout()
plt.show()

Define bands, statistics, and transforms

There are a few important parameters we will need to define when setting up our DataModule in addition to the location of the data and splits that we defined in Step 1.

We specifically use the GenericNonGeoClassificationDataModule, though all generic DataModules will need these inputs. You can always learn more about the arguments for a given DataModule by adapting the following code:

from terratorch.datamodules import GenericNonGeoClassificationDataModule
?GenericNonGeoClassificationDataModule

Band names

We need to tell the datamodule which bands we actually want to go into the model.

In our case, we have 13 sentinel 2 bands, but Prithvi is trained on 6 landsay bands, so we need to subset them.

sentinel2_bands = [
    "B1", "B2", "B3", "B4", "B5", "B6", "B7",
    "B8", "B8A", "B9", "B10", "B11", "B12"
]

# The subset of our bands Prithvi will take
prithvi_subset = [1, 2, 3, 8, 11, 12]
prithvi_bands = [sentinel2_bands[i] for i in prithvi_subset]
print(prithvi_bands)

['B2', 'B3', 'B4', 'B8A', 'B11', 'B12']

Means and standard deviations

We need band-level means and standard deviations. Either compute them yourself over your entire dataset, or get general numbers that work well for your data type.

We have S2 L1C data. We can use TerraMesh statistics I grabbed from their huggingface: https://huggingface.co/api/resolve-cache/datasets/ibm-esa-geospatial/TerraMesh/6c548cdacdd70e98a236de9f5b708d4b9dadf253/terramesh.py

statistics = {
    "mean": {
        "S2L1C": [2357.090, 2137.398, 2018.799, 2082.998, 2295.663, 2854.548, 3122.860, 3040.571, 3306.491, 1473.849,
                  506.072, 2472.840, 1838.943],
        "S2L2A": [1390.461, 1503.332, 1718.211, 1853.926, 2199.116, 2779.989, 2987.025, 3083.248, 3132.235, 3162.989,
                  2424.902, 1857.665],
        "S2RGB": [110.349, 99.507, 75.843],
        "S1GRD": [-12.577, -20.265],
        "S1RTC": [-10.93, -17.329],
        "NDVI": [0.327],
        "DEM": [651.663],
    },
    "std": {
        "S2L1C": [1673.639, 1722.641, 1602.205, 1873.138, 1866.055, 1779.839, 1776.496, 1724.114, 1771.041, 1079.786,
                  512.404, 1340.879, 1172.435],
        "S2L2A": [2131.157, 2163.666, 2059.311, 2152.477, 2105.179, 1912.773, 1842.326, 1893.568, 1775.656, 1814.907,
                  1436.282, 1336.155],
        "S2RGB": [69.905, 53.708, 53.378],
        "S1GRD": [5.179, 5.872],
        "S1RTC": [4.391, 4.459],
        "NDVI": [0.322],
        "DEM": [928.168]
    }
}

We specifically need to pass Sentinel 2 L1C means and stds, but only for the 6 bands we are subsetting for input into prithvi.

S2L1C_prithvi_means = [statistics["mean"]["S2L1C"][i] for i in prithvi_subset]
S2L1C_prithvi_stds = [statistics["std"]["S2L1C"][i] for i in prithvi_subset]
print(S2L1C_prithvi_means)
print(S2L1C_prithvi_stds)

[2137.398, 2018.799, 2082.998, 3306.491, 2472.84, 1838.943]
[1722.641, 1602.205, 1873.138, 1771.041, 1340.879, 1172.435]

Transforms

Transforms allow you to make changes to your data on the fly before feeding them to a model for training. There are three important types of transforms:

• Reshaping/resizing/clipping: To get your data into the shape your model expects.
• Data augmentations: If you don’t have a lot of training data, you can “augment” your dataset by presenting changed versions of your images to the model. For example, flip your images. This type of transform generally should only happen to your training data, and not your validation and testing data.
• Make your image a tensor (the data format that GPUs can use)

We can use albumentations to do any of these.

import albumentations

train_transforms = albumentations.Compose([
    albumentations.Resize(224, 224), # go from 64x64 to 224x224 (Prithvi expected size)
    albumentations.HorizontalFlip(), # augmentation
    albumentations.pytorch.transforms.ToTensorV2(),
])

# Same transforms but without augmentations for validation and testing
val_test_transforms = albumentations.Compose([
    albumentations.Resize(224, 224),
    albumentations.pytorch.transforms.ToTensorV2(),
])

Define your DataModule

from terratorch.datamodules import GenericNonGeoClassificationDataModule

datamodule = GenericNonGeoClassificationDataModule(
    batch_size=16, # How many images to give the model at once. More = faster, but more RAM is needed
    num_workers=0, # extra CPU threads for image loading

    # Where is our data? In our case, all splits are in the same folder
    train_data_root=EUROSAT,
    val_data_root=EUROSAT,
    test_data_root=EUROSAT,

    # Because images for all splits are in the same place, we need to specify our split files
    train_split=TRAIN_SPLIT,
    val_split=VAL_SPLIT,
    test_split=TEST_SPLIT,

    # means and standard deviations for the bands being input into the model
    means=S2L1C_prithvi_means,
    stds=S2L1C_prithvi_stds,

    # number of classes
    num_classes=len(class_names),

    # Tranforms, defined using albumentations
    train_transform=train_transforms,
    val_transform=val_test_transforms,
    test_transform=val_test_transforms,

    # Bands of our dataset
    dataset_bands=sentinel2_bands,
    # Bands to input into our model
    output_bands=prithvi_bands,
)

datamodule.setup("fit")

Check your DataModule

To ensure that the data are as we would expect the model to find them, we can manually iterate through a batch of the datamodule to inspect it.

batch = next(iter(datamodule.train_dataloader()))

print(f"Batch keys: {batch.keys()}")
print(f"Image shape: {batch['image'].shape}")
print(
    f"Label shape: {batch['label'].shape if 'label' in batch else batch['labels'].shape}")

# Check the actual values
print(f"\nImage dtype: {batch['image'].dtype}")
print(f"Image min/max: {batch['image'].min()}, {batch['image'].max()}")
print(f"Labels: {batch['label'] if 'label' in batch else batch['labels']}")

Batch keys: dict_keys(['image', 'label', 'filename'])
Image shape: torch.Size([16, 6, 224, 224])
Label shape: torch.Size([16])

Image dtype: torch.float32
Image min/max: 3.015306234359741, 6064.68359375
Labels: tensor([2, 1, 0, 6, 9, 1, 2, 9, 1, 7, 8, 5, 8, 3, 3, 0])

As expected, we have 16 images with 6 bands and resized to the width and height the model expects.

Notice the min and max have not been normalized. This is because normalization occurs during every training and validation step, which happens below.

Step 3: Get your Task set up

TerraTorch has several Lightning Trainers to easily handle model training, and has Tasks defined for each major task type. We will be using the ClassificationTask.

These Tasks are where you can define your model choice and model hyperparameters.

Choose your model from the model factory

If you don’t know which model you would like to use, you can explore what is available in TerraTorch’s model factory.

Explore encoders

from terratorch.registry import BACKBONE_REGISTRY

# List all the available backbones from different sources
for name, source in BACKBONE_REGISTRY._sources.items():
    print(f"\n===={name}=====")
    print(list(source))

====terratorch=====
['dofa_small_patch16_224', 'dofa_base_patch16_224', 'dofa_large_patch16_224', 'prithvi_eo_tiny', 'prithvi_eo_v1_100', 'prithvi_eo_v2_tiny_tl', 'prithvi_eo_v2_100_tl', 'prithvi_eo_v2_300', 'prithvi_eo_v2_600', 'prithvi_eo_v2_300_tl', 'prithvi_eo_v2_600_tl', 'terramind_v1_base', 'terramind_v1_base_tim', 'terramind_v01_base', 'terramind_v01_base_tim', 'terramind_v1_large', 'terramind_v1_large_tim', 'terramind_v1_tiny', 'terramind_v1_tiny_tim', 'terramind_v1_small', 'terramind_v1_small_tim', 'terramind_v1_tokenizer_s2l2a', 'terramind_v1_tokenizer_s1rtc', 'terramind_v1_tokenizer_s1grd', 'terramind_v1_tokenizer_dem', 'terramind_v1_tokenizer_lulc', 'terramind_v1_tokenizer_ndvi', 'ssl4eol_resnet18_landsat_tm_toa_moco', 'ssl4eol_resnet18_landsat_tm_toa_simclr', 'ssl4eol_resnet18_landsat_etm_toa_moco', 'ssl4eol_resnet18_landsat_etm_toa_simclr', 'ssl4eol_resnet18_landsat_etm_sr_moco', 'ssl4eol_resnet18_landsat_etm_sr_simclr', 'ssl4eol_resnet18_landsat_oli_tirs_toa_moco', 'ssl4eol_resnet18_landsat_oli_tirs_toa_simclr', 'ssl4eol_resnet18_landsat_oli_sr_moco', 'ssl4eol_resnet18_landsat_oli_sr_simclr', 'ssl4eos12_resnet18_sentinel2_all_moco', 'ssl4eos12_resnet18_sentinel2_rgb_moco', 'seco_resnet18_sentinel2_rgb_seco', 'fmow_resnet50_fmow_rgb_gassl', 'ssl4eol_resnet50_landsat_tm_toa_moco', 'ssl4eol_resnet50_landsat_tm_toa_simclr', 'ssl4eol_resnet50_landsat_etm_toa_moco', 'ssl4eol_resnet50_landsat_etm_toa_simclr', 'ssl4eol_resnet50_landsat_etm_sr_moco', 'ssl4eol_resnet50_landsat_etm_sr_simclr', 'ssl4eol_resnet50_landsat_oli_tirs_toa_moco', 'ssl4eol_resnet50_landsat_oli_tirs_toa_simclr', 'ssl4eol_resnet50_landsat_oli_sr_moco', 'ssl4eol_resnet50_landsat_oli_sr_simclr', 'ssl4eos12_resnet50_sentinel1_all_decur', 'ssl4eos12_resnet50_sentinel1_all_moco', 'ssl4eos12_resnet50_sentinel2_all_decur', 'ssl4eos12_resnet50_sentinel2_all_dino', 'ssl4eos12_resnet50_sentinel2_all_moco', 'ssl4eos12_resnet50_sentinel2_rgb_moco', 'seco_resnet50_sentinel2_rgb_seco', 'satlas_resnet50_sentinel2_mi_ms_satlas', 'satlas_resnet50_sentinel2_mi_rgb_satlas', 'satlas_resnet50_sentinel2_si_ms_satlas', 'satlas_resnet50_sentinel2_si_rgb_satlas', 'satlas_resnet152_sentinel2_mi_ms', 'satlas_resnet152_sentinel2_mi_rgb', 'satlas_resnet152_sentinel2_si_ms_satlas', 'satlas_resnet152_sentinel2_si_rgb_satlas', 'satlas_swin_t_sentinel2_mi_ms', 'satlas_swin_t_sentinel2_mi_rgb', 'satlas_swin_t_sentinel2_si_ms', 'satlas_swin_t_sentinel2_si_rgb', 'satlas_swin_b_sentinel2_mi_ms', 'satlas_swin_b_sentinel2_mi_rgb', 'satlas_swin_b_sentinel2_si_ms', 'satlas_swin_b_sentinel2_si_rgb', 'satlas_swin_b_naip_mi_rgb', 'satlas_swin_b_naip_si_rgb', 'satlas_swin_b_landsat_mi_ms', 'satlas_swin_b_landsat_mi_rgb', 'satlas_swin_b_sentinel1_mi', 'satlas_swin_b_sentinel1_si', 'ssl4eol_vit_small_patch16_224_landsat_tm_toa_moco', 'ssl4eol_vit_small_patch16_224_landsat_tm_toa_simclr', 'ssl4eol_vit_small_patch16_224_landsat_etm_toa_moco', 'ssl4eol_vit_small_patch16_224_landsat_etm_toa_simclr', 'ssl4eol_vit_small_patch16_224_landsat_etm_sr_moco', 'ssl4eol_vit_small_patch16_224_landsat_etm_sr_simclr', 'ssl4eol_vit_small_patch16_224_landsat_oli_tirs_toa_simclr', 'ssl4eol_vit_small_patch16_224_landsat_oli_sr_moco', 'ssl4eol_vit_small_patch16_224_landsat_oli_sr_simclr', 'ssl4eos12_vit_small_patch16_224_sentinel2_all_dino', 'ssl4eos12_vit_small_patch16_224_sentinel2_all_moco', 'UNet']

====timm=====
['aimv2_1b_patch14_224', 'aimv2_1b_patch14_336', 'aimv2_1b_patch14_448', 'aimv2_3b_patch14_224', 'aimv2_3b_patch14_336', 'aimv2_3b_patch14_448', 'aimv2_huge_patch14_224', 'aimv2_huge_patch14_336', 'aimv2_huge_patch14_448', 'aimv2_large_patch14_224', 'aimv2_large_patch14_336', 'aimv2_large_patch14_448', 'bat_resnext26ts', 'beit3_base_patch16_224', 'beit3_giant_patch14_224', 'beit3_giant_patch14_336', 'beit3_large_patch16_224', 'beit_base_patch16_224', 'beit_base_patch16_384', 'beit_large_patch16_224', 'beit_large_patch16_384', 'beit_large_patch16_512', 'beitv2_base_patch16_224', 'beitv2_large_patch16_224', 'botnet26t_256', 'botnet50ts_256', 'caformer_b36', 'caformer_m36', 'caformer_s18', 'caformer_s36', 'cait_m36_384', 'cait_m48_448', 'cait_s24_224', 'cait_s24_384', 'cait_s36_384', 'cait_xs24_384', 'cait_xxs24_224', 'cait_xxs24_384', 'cait_xxs36_224', 'cait_xxs36_384', 'clay_v1_base', 'coat_lite_medium', 'coat_lite_medium_384', 'coat_lite_mini', 'coat_lite_small', 'coat_lite_tiny', 'coat_mini', 'coat_small', 'coat_tiny', 'coatnet_0_224', 'coatnet_0_rw_224', 'coatnet_1_224', 'coatnet_1_rw_224', 'coatnet_2_224', 'coatnet_2_rw_224', 'coatnet_3_224', 'coatnet_3_rw_224', 'coatnet_4_224', 'coatnet_5_224', 'coatnet_bn_0_rw_224', 'coatnet_nano_cc_224', 'coatnet_nano_rw_224', 'coatnet_pico_rw_224', 'coatnet_rmlp_0_rw_224', 'coatnet_rmlp_1_rw2_224', 'coatnet_rmlp_1_rw_224', 'coatnet_rmlp_2_rw_224', 'coatnet_rmlp_2_rw_384', 'coatnet_rmlp_3_rw_224', 'coatnet_rmlp_nano_rw_224', 'coatnext_nano_rw_224', 'convformer_b36', 'convformer_m36', 'convformer_s18', 'convformer_s36', 'convit_base', 'convit_small', 'convit_tiny', 'convmixer_768_32', 'convmixer_1024_20_ks9_p14', 'convmixer_1536_20', 'convnext_atto', 'convnext_atto_ols', 'convnext_atto_rms', 'convnext_base', 'convnext_femto', 'convnext_femto_ols', 'convnext_large', 'convnext_large_mlp', 'convnext_nano', 'convnext_nano_ols', 'convnext_pico', 'convnext_pico_ols', 'convnext_small', 'convnext_tiny', 'convnext_tiny_hnf', 'convnext_xlarge', 'convnext_xxlarge', 'convnext_zepto_rms', 'convnext_zepto_rms_ols', 'convnextv2_atto', 'convnextv2_base', 'convnextv2_femto', 'convnextv2_huge', 'convnextv2_large', 'convnextv2_nano', 'convnextv2_pico', 'convnextv2_small', 'convnextv2_tiny', 'crossvit_9_240', 'crossvit_9_dagger_240', 'crossvit_15_240', 'crossvit_15_dagger_240', 'crossvit_15_dagger_408', 'crossvit_18_240', 'crossvit_18_dagger_240', 'crossvit_18_dagger_408', 'crossvit_base_240', 'crossvit_small_240', 'crossvit_tiny_240', 'cs3darknet_focus_l', 'cs3darknet_focus_m', 'cs3darknet_focus_s', 'cs3darknet_focus_x', 'cs3darknet_l', 'cs3darknet_m', 'cs3darknet_s', 'cs3darknet_x', 'cs3edgenet_x', 'cs3se_edgenet_x', 'cs3sedarknet_l', 'cs3sedarknet_x', 'cs3sedarknet_xdw', 'cspdarknet53', 'cspresnet50', 'cspresnet50d', 'cspresnet50w', 'cspresnext50', 'darknet17', 'darknet21', 'darknet53', 'darknetaa53', 'davit_base', 'davit_base_fl', 'davit_giant', 'davit_huge', 'davit_huge_fl', 'davit_large', 'davit_small', 'davit_tiny', 'deit3_base_patch16_224', 'deit3_base_patch16_384', 'deit3_huge_patch14_224', 'deit3_large_patch16_224', 'deit3_large_patch16_384', 'deit3_medium_patch16_224', 'deit3_small_patch16_224', 'deit3_small_patch16_384', 'deit_base_distilled_patch16_224', 'deit_base_distilled_patch16_384', 'deit_base_patch16_224', 'deit_base_patch16_384', 'deit_small_distilled_patch16_224', 'deit_small_patch16_224', 'deit_tiny_distilled_patch16_224', 'deit_tiny_patch16_224', 'densenet121', 'densenet161', 'densenet169', 'densenet201', 'densenet264d', 'densenetblur121d', 'dla34', 'dla46_c', 'dla46x_c', 'dla60', 'dla60_res2net', 'dla60_res2next', 'dla60x', 'dla60x_c', 'dla102', 'dla102x', 'dla102x2', 'dla169', 'dm_nfnet_f0', 'dm_nfnet_f1', 'dm_nfnet_f2', 'dm_nfnet_f3', 'dm_nfnet_f4', 'dm_nfnet_f5', 'dm_nfnet_f6', 'dpn48b', 'dpn68', 'dpn68b', 'dpn92', 'dpn98', 'dpn107', 'dpn131', 'eca_botnext26ts_256', 'eca_halonext26ts', 'eca_nfnet_l0', 'eca_nfnet_l1', 'eca_nfnet_l2', 'eca_nfnet_l3', 'eca_resnet33ts', 'eca_resnext26ts', 'eca_vovnet39b', 'ecaresnet26t', 'ecaresnet50d', 'ecaresnet50d_pruned', 'ecaresnet50t', 'ecaresnet101d', 'ecaresnet101d_pruned', 'ecaresnet200d', 'ecaresnet269d', 'ecaresnetlight', 'ecaresnext26t_32x4d', 'ecaresnext50t_32x4d', 'edgenext_base', 'edgenext_small', 'edgenext_small_rw', 'edgenext_x_small', 'edgenext_xx_small', 'efficientformer_l1', 'efficientformer_l3', 'efficientformer_l7', 'efficientformerv2_l', 'efficientformerv2_s0', 'efficientformerv2_s1', 'efficientformerv2_s2', 'efficientnet_b0', 'efficientnet_b0_g8_gn', 'efficientnet_b0_g16_evos', 'efficientnet_b0_gn', 'efficientnet_b1', 'efficientnet_b1_pruned', 'efficientnet_b2', 'efficientnet_b2_pruned', 'efficientnet_b3', 'efficientnet_b3_g8_gn', 'efficientnet_b3_gn', 'efficientnet_b3_pruned', 'efficientnet_b4', 'efficientnet_b5', 'efficientnet_b6', 'efficientnet_b7', 'efficientnet_b8', 'efficientnet_blur_b0', 'efficientnet_cc_b0_4e', 'efficientnet_cc_b0_8e', 'efficientnet_cc_b1_8e', 'efficientnet_el', 'efficientnet_el_pruned', 'efficientnet_em', 'efficientnet_es', 'efficientnet_es_pruned', 'efficientnet_h_b5', 'efficientnet_l2', 'efficientnet_lite0', 'efficientnet_lite1', 'efficientnet_lite2', 'efficientnet_lite3', 'efficientnet_lite4', 'efficientnet_x_b3', 'efficientnet_x_b5', 'efficientnetv2_l', 'efficientnetv2_m', 'efficientnetv2_rw_m', 'efficientnetv2_rw_s', 'efficientnetv2_rw_t', 'efficientnetv2_s', 'efficientnetv2_xl', 'efficientvit_b0', 'efficientvit_b1', 'efficientvit_b2', 'efficientvit_b3', 'efficientvit_l1', 'efficientvit_l2', 'efficientvit_l3', 'efficientvit_m0', 'efficientvit_m1', 'efficientvit_m2', 'efficientvit_m3', 'efficientvit_m4', 'efficientvit_m5', 'ese_vovnet19b_dw', 'ese_vovnet19b_slim', 'ese_vovnet19b_slim_dw', 'ese_vovnet39b', 'ese_vovnet39b_evos', 'ese_vovnet57b', 'ese_vovnet99b', 'eva02_base_patch14_224', 'eva02_base_patch14_448', 'eva02_base_patch16_clip_224', 'eva02_enormous_patch14_clip_224', 'eva02_large_patch14_224', 'eva02_large_patch14_448', 'eva02_large_patch14_clip_224', 'eva02_large_patch14_clip_336', 'eva02_small_patch14_224', 'eva02_small_patch14_336', 'eva02_tiny_patch14_224', 'eva02_tiny_patch14_336', 'eva_giant_patch14_224', 'eva_giant_patch14_336', 'eva_giant_patch14_560', 'eva_giant_patch14_clip_224', 'eva_large_patch14_196', 'eva_large_patch14_336', 'fasternet_l', 'fasternet_m', 'fasternet_s', 'fasternet_t0', 'fasternet_t1', 'fasternet_t2', 'fastvit_ma36', 'fastvit_mci0', 'fastvit_mci1', 'fastvit_mci2', 'fastvit_mci3', 'fastvit_mci4', 'fastvit_s12', 'fastvit_sa12', 'fastvit_sa24', 'fastvit_sa36', 'fastvit_t8', 'fastvit_t12', 'fbnetc_100', 'fbnetv3_b', 'fbnetv3_d', 'fbnetv3_g', 'flexivit_base', 'flexivit_large', 'flexivit_small', 'focalnet_base_lrf', 'focalnet_base_srf', 'focalnet_huge_fl3', 'focalnet_huge_fl4', 'focalnet_large_fl3', 'focalnet_large_fl4', 'focalnet_small_lrf', 'focalnet_small_srf', 'focalnet_tiny_lrf', 'focalnet_tiny_srf', 'focalnet_xlarge_fl3', 'focalnet_xlarge_fl4', 'gc_efficientnetv2_rw_t', 'gcresnet33ts', 'gcresnet50t', 'gcresnext26ts', 'gcresnext50ts', 'gcvit_base', 'gcvit_small', 'gcvit_tiny', 'gcvit_xtiny', 'gcvit_xxtiny', 'gernet_l', 'gernet_m', 'gernet_s', 'ghostnet_050', 'ghostnet_100', 'ghostnet_130', 'ghostnetv2_100', 'ghostnetv2_130', 'ghostnetv2_160', 'ghostnetv3_050', 'ghostnetv3_100', 'ghostnetv3_130', 'ghostnetv3_160', 'gmixer_12_224', 'gmixer_24_224', 'gmlp_b16_224', 'gmlp_s16_224', 'gmlp_ti16_224', 'halo2botnet50ts_256', 'halonet26t', 'halonet50ts', 'halonet_h1', 'haloregnetz_b', 'hardcorenas_a', 'hardcorenas_b', 'hardcorenas_c', 'hardcorenas_d', 'hardcorenas_e', 'hardcorenas_f', 'hgnet_base', 'hgnet_small', 'hgnet_tiny', 'hgnetv2_b0', 'hgnetv2_b1', 'hgnetv2_b2', 'hgnetv2_b3', 'hgnetv2_b4', 'hgnetv2_b5', 'hgnetv2_b6', 'hiera_base_224', 'hiera_base_abswin_256', 'hiera_base_plus_224', 'hiera_huge_224', 'hiera_large_224', 'hiera_small_224', 'hiera_small_abswin_256', 'hiera_tiny_224', 'hieradet_small', 'hrnet_w18', 'hrnet_w18_small', 'hrnet_w18_small_v2', 'hrnet_w18_ssld', 'hrnet_w30', 'hrnet_w32', 'hrnet_w40', 'hrnet_w44', 'hrnet_w48', 'hrnet_w48_ssld', 'hrnet_w64', 'inception_next_atto', 'inception_next_base', 'inception_next_small', 'inception_next_tiny', 'inception_resnet_v2', 'inception_v3', 'inception_v4', 'lambda_resnet26rpt_256', 'lambda_resnet26t', 'lambda_resnet50ts', 'lamhalobotnet50ts_256', 'lcnet_035', 'lcnet_050', 'lcnet_075', 'lcnet_100', 'lcnet_150', 'legacy_senet154', 'legacy_seresnet18', 'legacy_seresnet34', 'legacy_seresnet50', 'legacy_seresnet101', 'legacy_seresnet152', 'legacy_seresnext26_32x4d', 'legacy_seresnext50_32x4d', 'legacy_seresnext101_32x4d', 'legacy_xception', 'levit_128', 'levit_128s', 'levit_192', 'levit_256', 'levit_256d', 'levit_384', 'levit_384_s8', 'levit_512', 'levit_512_s8', 'levit_512d', 'levit_conv_128', 'levit_conv_128s', 'levit_conv_192', 'levit_conv_256', 'levit_conv_256d', 'levit_conv_384', 'levit_conv_384_s8', 'levit_conv_512', 'levit_conv_512_s8', 'levit_conv_512d', 'mambaout_base', 'mambaout_base_plus_rw', 'mambaout_base_short_rw', 'mambaout_base_tall_rw', 'mambaout_base_wide_rw', 'mambaout_femto', 'mambaout_kobe', 'mambaout_small', 'mambaout_small_rw', 'mambaout_tiny', 'maxvit_base_tf_224', 'maxvit_base_tf_384', 'maxvit_base_tf_512', 'maxvit_large_tf_224', 'maxvit_large_tf_384', 'maxvit_large_tf_512', 'maxvit_nano_rw_256', 'maxvit_pico_rw_256', 'maxvit_rmlp_base_rw_224', 'maxvit_rmlp_base_rw_384', 'maxvit_rmlp_nano_rw_256', 'maxvit_rmlp_pico_rw_256', 'maxvit_rmlp_small_rw_224', 'maxvit_rmlp_small_rw_256', 'maxvit_rmlp_tiny_rw_256', 'maxvit_small_tf_224', 'maxvit_small_tf_384', 'maxvit_small_tf_512', 'maxvit_tiny_pm_256', 'maxvit_tiny_rw_224', 'maxvit_tiny_rw_256', 'maxvit_tiny_tf_224', 'maxvit_tiny_tf_384', 'maxvit_tiny_tf_512', 'maxvit_xlarge_tf_224', 'maxvit_xlarge_tf_384', 'maxvit_xlarge_tf_512', 'maxxvit_rmlp_nano_rw_256', 'maxxvit_rmlp_small_rw_256', 'maxxvit_rmlp_tiny_rw_256', 'maxxvitv2_nano_rw_256', 'maxxvitv2_rmlp_base_rw_224', 'maxxvitv2_rmlp_base_rw_384', 'maxxvitv2_rmlp_large_rw_224', 'mixer_b16_224', 'mixer_b32_224', 'mixer_l16_224', 'mixer_l32_224', 'mixer_s16_224', 'mixer_s32_224', 'mixnet_l', 'mixnet_m', 'mixnet_s', 'mixnet_xl', 'mixnet_xxl', 'mnasnet_050', 'mnasnet_075', 'mnasnet_100', 'mnasnet_140', 'mnasnet_small', 'mobilenet_edgetpu_100', 'mobilenet_edgetpu_v2_l', 'mobilenet_edgetpu_v2_m', 'mobilenet_edgetpu_v2_s', 'mobilenet_edgetpu_v2_xs', 'mobilenetv1_100', 'mobilenetv1_100h', 'mobilenetv1_125', 'mobilenetv2_035', 'mobilenetv2_050', 'mobilenetv2_075', 'mobilenetv2_100', 'mobilenetv2_110d', 'mobilenetv2_120d', 'mobilenetv2_140', 'mobilenetv3_large_075', 'mobilenetv3_large_100', 'mobilenetv3_large_150d', 'mobilenetv3_rw', 'mobilenetv3_small_050', 'mobilenetv3_small_075', 'mobilenetv3_small_100', 'mobilenetv4_conv_aa_large', 'mobilenetv4_conv_aa_medium', 'mobilenetv4_conv_blur_medium', 'mobilenetv4_conv_large', 'mobilenetv4_conv_medium', 'mobilenetv4_conv_small', 'mobilenetv4_conv_small_035', 'mobilenetv4_conv_small_050', 'mobilenetv4_hybrid_large', 'mobilenetv4_hybrid_large_075', 'mobilenetv4_hybrid_medium', 'mobilenetv4_hybrid_medium_075', 'mobilenetv5_300m', 'mobilenetv5_300m_enc', 'mobilenetv5_base', 'mobileone_s0', 'mobileone_s1', 'mobileone_s2', 'mobileone_s3', 'mobileone_s4', 'mobilevit_s', 'mobilevit_xs', 'mobilevit_xxs', 'mobilevitv2_050', 'mobilevitv2_075', 'mobilevitv2_100', 'mobilevitv2_125', 'mobilevitv2_150', 'mobilevitv2_175', 'mobilevitv2_200', 'mvitv2_base', 'mvitv2_base_cls', 'mvitv2_huge_cls', 'mvitv2_large', 'mvitv2_large_cls', 'mvitv2_small', 'mvitv2_small_cls', 'mvitv2_tiny', 'naflexvit_base_patch16_gap', 'naflexvit_base_patch16_map', 'naflexvit_base_patch16_par_gap', 'naflexvit_base_patch16_parfac_gap', 'naflexvit_base_patch16_siglip', 'naflexvit_so150m2_patch16_reg1_gap', 'naflexvit_so150m2_patch16_reg1_map', 'naflexvit_so400m_patch16_siglip', 'nasnetalarge', 'nest_base', 'nest_base_jx', 'nest_small', 'nest_small_jx', 'nest_tiny', 'nest_tiny_jx', 'nextvit_base', 'nextvit_large', 'nextvit_small', 'nf_ecaresnet26', 'nf_ecaresnet50', 'nf_ecaresnet101', 'nf_regnet_b0', 'nf_regnet_b1', 'nf_regnet_b2', 'nf_regnet_b3', 'nf_regnet_b4', 'nf_regnet_b5', 'nf_resnet26', 'nf_resnet50', 'nf_resnet101', 'nf_seresnet26', 'nf_seresnet50', 'nf_seresnet101', 'nfnet_f0', 'nfnet_f1', 'nfnet_f2', 'nfnet_f3', 'nfnet_f4', 'nfnet_f5', 'nfnet_f6', 'nfnet_f7', 'nfnet_l0', 'pit_b_224', 'pit_b_distilled_224', 'pit_s_224', 'pit_s_distilled_224', 'pit_ti_224', 'pit_ti_distilled_224', 'pit_xs_224', 'pit_xs_distilled_224', 'pnasnet5large', 'poolformer_m36', 'poolformer_m48', 'poolformer_s12', 'poolformer_s24', 'poolformer_s36', 'poolformerv2_m36', 'poolformerv2_m48', 'poolformerv2_s12', 'poolformerv2_s24', 'poolformerv2_s36', 'prithvi_swin_B', 'prithvi_swin_L', 'pvt_v2_b0', 'pvt_v2_b1', 'pvt_v2_b2', 'pvt_v2_b2_li', 'pvt_v2_b3', 'pvt_v2_b4', 'pvt_v2_b5', 'rdnet_base', 'rdnet_large', 'rdnet_small', 'rdnet_tiny', 'regnetv_040', 'regnetv_064', 'regnetx_002', 'regnetx_004', 'regnetx_004_tv', 'regnetx_006', 'regnetx_008', 'regnetx_016', 'regnetx_032', 'regnetx_040', 'regnetx_064', 'regnetx_080', 'regnetx_120', 'regnetx_160', 'regnetx_320', 'regnety_002', 'regnety_004', 'regnety_006', 'regnety_008', 'regnety_008_tv', 'regnety_016', 'regnety_032', 'regnety_040', 'regnety_040_sgn', 'regnety_064', 'regnety_080', 'regnety_080_tv', 'regnety_120', 'regnety_160', 'regnety_320', 'regnety_640', 'regnety_1280', 'regnety_2560', 'regnetz_005', 'regnetz_040', 'regnetz_040_h', 'regnetz_b16', 'regnetz_b16_evos', 'regnetz_c16', 'regnetz_c16_evos', 'regnetz_d8', 'regnetz_d8_evos', 'regnetz_d32', 'regnetz_e8', 'repghostnet_050', 'repghostnet_058', 'repghostnet_080', 'repghostnet_100', 'repghostnet_111', 'repghostnet_130', 'repghostnet_150', 'repghostnet_200', 'repvgg_a0', 'repvgg_a1', 'repvgg_a2', 'repvgg_b0', 'repvgg_b1', 'repvgg_b1g4', 'repvgg_b2', 'repvgg_b2g4', 'repvgg_b3', 'repvgg_b3g4', 'repvgg_d2se', 'repvit_m0_9', 'repvit_m1', 'repvit_m1_0', 'repvit_m1_1', 'repvit_m1_5', 'repvit_m2', 'repvit_m2_3', 'repvit_m3', 'res2net50_14w_8s', 'res2net50_26w_4s', 'res2net50_26w_6s', 'res2net50_26w_8s', 'res2net50_48w_2s', 'res2net50d', 'res2net101_26w_4s', 'res2net101d', 'res2next50', 'resmlp_12_224', 'resmlp_24_224', 'resmlp_36_224', 'resmlp_big_24_224', 'resnest14d', 'resnest26d', 'resnest50d', 'resnest50d_1s4x24d', 'resnest50d_4s2x40d', 'resnest101e', 'resnest200e', 'resnest269e', 'resnet10t', 'resnet14t', 'resnet18', 'resnet18d', 'resnet26', 'resnet26d', 'resnet26t', 'resnet32ts', 'resnet33ts', 'resnet34', 'resnet34d', 'resnet50', 'resnet50_clip', 'resnet50_clip_gap', 'resnet50_gn', 'resnet50_mlp', 'resnet50c', 'resnet50d', 'resnet50s', 'resnet50t', 'resnet50x4_clip', 'resnet50x4_clip_gap', 'resnet50x16_clip', 'resnet50x16_clip_gap', 'resnet50x64_clip', 'resnet50x64_clip_gap', 'resnet51q', 'resnet61q', 'resnet101', 'resnet101_clip', 'resnet101_clip_gap', 'resnet101c', 'resnet101d', 'resnet101s', 'resnet152', 'resnet152c', 'resnet152d', 'resnet152s', 'resnet200', 'resnet200d', 'resnetaa34d', 'resnetaa50', 'resnetaa50d', 'resnetaa101d', 'resnetblur18', 'resnetblur50', 'resnetblur50d', 'resnetblur101d', 'resnetrs50', 'resnetrs101', 'resnetrs152', 'resnetrs200', 'resnetrs270', 'resnetrs350', 'resnetrs420', 'resnetv2_18', 'resnetv2_18d', 'resnetv2_34', 'resnetv2_34d', 'resnetv2_50', 'resnetv2_50d', 'resnetv2_50d_evos', 'resnetv2_50d_frn', 'resnetv2_50d_gn', 'resnetv2_50t', 'resnetv2_50x1_bit', 'resnetv2_50x3_bit', 'resnetv2_101', 'resnetv2_101d', 'resnetv2_101x1_bit', 'resnetv2_101x3_bit', 'resnetv2_152', 'resnetv2_152d', 'resnetv2_152x2_bit', 'resnetv2_152x4_bit', 'resnext26ts', 'resnext50_32x4d', 'resnext50d_32x4d', 'resnext101_32x4d', 'resnext101_32x8d', 'resnext101_32x16d', 'resnext101_32x32d', 'resnext101_64x4d', 'rexnet_100', 'rexnet_130', 'rexnet_150', 'rexnet_200', 'rexnet_300', 'rexnetr_100', 'rexnetr_130', 'rexnetr_150', 'rexnetr_200', 'rexnetr_300', 'sam2_hiera_base_plus', 'sam2_hiera_large', 'sam2_hiera_small', 'sam2_hiera_tiny', 'samvit_base_patch16', 'samvit_base_patch16_224', 'samvit_huge_patch16', 'samvit_large_patch16', 'sebotnet33ts_256', 'sedarknet21', 'sehalonet33ts', 'selecsls42', 'selecsls42b', 'selecsls60', 'selecsls60b', 'selecsls84', 'semnasnet_050', 'semnasnet_075', 'semnasnet_100', 'semnasnet_140', 'senet154', 'sequencer2d_l', 'sequencer2d_m', 'sequencer2d_s', 'seresnet18', 'seresnet33ts', 'seresnet34', 'seresnet50', 'seresnet50t', 'seresnet101', 'seresnet152', 'seresnet152d', 'seresnet200d', 'seresnet269d', 'seresnetaa50d', 'seresnext26d_32x4d', 'seresnext26t_32x4d', 'seresnext26ts', 'seresnext50_32x4d', 'seresnext101_32x4d', 'seresnext101_32x8d', 'seresnext101_64x4d', 'seresnext101d_32x8d', 'seresnextaa101d_32x8d', 'seresnextaa201d_32x8d', 'shvit_s1', 'shvit_s2', 'shvit_s3', 'shvit_s4', 'skresnet18', 'skresnet34', 'skresnet50', 'skresnet50d', 'skresnext50_32x4d', 'spnasnet_100', 'starnet_s1', 'starnet_s2', 'starnet_s3', 'starnet_s4', 'starnet_s050', 'starnet_s100', 'starnet_s150', 'swiftformer_l1', 'swiftformer_l3', 'swiftformer_s', 'swiftformer_xs', 'swin_base_patch4_window7_224', 'swin_base_patch4_window12_384', 'swin_large_patch4_window7_224', 'swin_large_patch4_window12_384', 'swin_s3_base_224', 'swin_s3_small_224', 'swin_s3_tiny_224', 'swin_small_patch4_window7_224', 'swin_tiny_patch4_window7_224', 'swinv2_base_window8_256', 'swinv2_base_window12_192', 'swinv2_base_window12to16_192to256', 'swinv2_base_window12to24_192to384', 'swinv2_base_window16_256', 'swinv2_cr_base_224', 'swinv2_cr_base_384', 'swinv2_cr_base_ns_224', 'swinv2_cr_giant_224', 'swinv2_cr_giant_384', 'swinv2_cr_huge_224', 'swinv2_cr_huge_384', 'swinv2_cr_large_224', 'swinv2_cr_large_384', 'swinv2_cr_small_224', 'swinv2_cr_small_384', 'swinv2_cr_small_ns_224', 'swinv2_cr_small_ns_256', 'swinv2_cr_tiny_224', 'swinv2_cr_tiny_384', 'swinv2_cr_tiny_ns_224', 'swinv2_large_window12_192', 'swinv2_large_window12to16_192to256', 'swinv2_large_window12to24_192to384', 'swinv2_small_window8_256', 'swinv2_small_window16_256', 'swinv2_tiny_window8_256', 'swinv2_tiny_window16_256', 'test_byobnet', 'test_convnext', 'test_convnext2', 'test_convnext3', 'test_efficientnet', 'test_efficientnet_evos', 'test_efficientnet_gn', 'test_efficientnet_ln', 'test_mambaout', 'test_nfnet', 'test_resnet', 'test_vit', 'test_vit2', 'test_vit3', 'test_vit4', 'tf_efficientnet_b0', 'tf_efficientnet_b1', 'tf_efficientnet_b2', 'tf_efficientnet_b3', 'tf_efficientnet_b4', 'tf_efficientnet_b5', 'tf_efficientnet_b6', 'tf_efficientnet_b7', 'tf_efficientnet_b8', 'tf_efficientnet_cc_b0_4e', 'tf_efficientnet_cc_b0_8e', 'tf_efficientnet_cc_b1_8e', 'tf_efficientnet_el', 'tf_efficientnet_em', 'tf_efficientnet_es', 'tf_efficientnet_l2', 'tf_efficientnet_lite0', 'tf_efficientnet_lite1', 'tf_efficientnet_lite2', 'tf_efficientnet_lite3', 'tf_efficientnet_lite4', 'tf_efficientnetv2_b0', 'tf_efficientnetv2_b1', 'tf_efficientnetv2_b2', 'tf_efficientnetv2_b3', 'tf_efficientnetv2_l', 'tf_efficientnetv2_m', 'tf_efficientnetv2_s', 'tf_efficientnetv2_xl', 'tf_mixnet_l', 'tf_mixnet_m', 'tf_mixnet_s', 'tf_mobilenetv3_large_075', 'tf_mobilenetv3_large_100', 'tf_mobilenetv3_large_minimal_100', 'tf_mobilenetv3_small_075', 'tf_mobilenetv3_small_100', 'tf_mobilenetv3_small_minimal_100', 'tiny_vit_5m_224', 'tiny_vit_11m_224', 'tiny_vit_21m_224', 'tiny_vit_21m_384', 'tiny_vit_21m_512', 'tinynet_a', 'tinynet_b', 'tinynet_c', 'tinynet_d', 'tinynet_e', 'tnt_b_patch16_224', 'tnt_s_legacy_patch16_224', 'tnt_s_patch16_224', 'tresnet_l', 'tresnet_m', 'tresnet_v2_l', 'tresnet_xl', 'twins_pcpvt_base', 'twins_pcpvt_large', 'twins_pcpvt_small', 'twins_svt_base', 'twins_svt_large', 'twins_svt_small', 'vgg11', 'vgg11_bn', 'vgg13', 'vgg13_bn', 'vgg16', 'vgg16_bn', 'vgg19', 'vgg19_bn', 'visformer_small', 'visformer_tiny', 'vit_7b_patch16_dinov3', 'vit_base_mci_224', 'vit_base_patch8_224', 'vit_base_patch14_dinov2', 'vit_base_patch14_reg4_dinov2', 'vit_base_patch16_18x2_224', 'vit_base_patch16_224', 'vit_base_patch16_224_miil', 'vit_base_patch16_384', 'vit_base_patch16_clip_224', 'vit_base_patch16_clip_384', 'vit_base_patch16_clip_quickgelu_224', 'vit_base_patch16_dinov3', 'vit_base_patch16_dinov3_qkvb', 'vit_base_patch16_gap_224', 'vit_base_patch16_plus_240', 'vit_base_patch16_plus_clip_240', 'vit_base_patch16_reg4_gap_256', 'vit_base_patch16_rope_224', 'vit_base_patch16_rope_ape_224', 'vit_base_patch16_rope_mixed_224', 'vit_base_patch16_rope_mixed_ape_224', 'vit_base_patch16_rope_reg1_gap_256', 'vit_base_patch16_rpn_224', 'vit_base_patch16_siglip_224', 'vit_base_patch16_siglip_256', 'vit_base_patch16_siglip_384', 'vit_base_patch16_siglip_512', 'vit_base_patch16_siglip_gap_224', 'vit_base_patch16_siglip_gap_256', 'vit_base_patch16_siglip_gap_384', 'vit_base_patch16_siglip_gap_512', 'vit_base_patch16_xp_224', 'vit_base_patch32_224', 'vit_base_patch32_384', 'vit_base_patch32_clip_224', 'vit_base_patch32_clip_256', 'vit_base_patch32_clip_384', 'vit_base_patch32_clip_448', 'vit_base_patch32_clip_quickgelu_224', 'vit_base_patch32_plus_256', 'vit_base_patch32_siglip_256', 'vit_base_patch32_siglip_gap_256', 'vit_base_r26_s32_224', 'vit_base_r50_s16_224', 'vit_base_r50_s16_384', 'vit_base_resnet26d_224', 'vit_base_resnet50d_224', 'vit_betwixt_patch16_gap_256', 'vit_betwixt_patch16_reg1_gap_256', 'vit_betwixt_patch16_reg4_gap_256', 'vit_betwixt_patch16_reg4_gap_384', 'vit_betwixt_patch16_rope_reg4_gap_256', 'vit_betwixt_patch32_clip_224', 'vit_giant_patch14_224', 'vit_giant_patch14_clip_224', 'vit_giant_patch14_dinov2', 'vit_giant_patch14_reg4_dinov2', 'vit_giant_patch16_gap_224', 'vit_giantopt_patch16_siglip_256', 'vit_giantopt_patch16_siglip_384', 'vit_giantopt_patch16_siglip_gap_256', 'vit_giantopt_patch16_siglip_gap_384', 'vit_gigantic_patch14_224', 'vit_gigantic_patch14_clip_224', 'vit_gigantic_patch14_clip_378', 'vit_gigantic_patch14_clip_quickgelu_224', 'vit_huge_patch14_224', 'vit_huge_patch14_clip_224', 'vit_huge_patch14_clip_336', 'vit_huge_patch14_clip_378', 'vit_huge_patch14_clip_quickgelu_224', 'vit_huge_patch14_clip_quickgelu_378', 'vit_huge_patch14_gap_224', 'vit_huge_patch14_xp_224', 'vit_huge_patch16_gap_448', 'vit_huge_plus_patch16_dinov3', 'vit_huge_plus_patch16_dinov3_qkvb', 'vit_intern300m_patch14_448', 'vit_large_patch14_224', 'vit_large_patch14_clip_224', 'vit_large_patch14_clip_336', 'vit_large_patch14_clip_quickgelu_224', 'vit_large_patch14_clip_quickgelu_336', 'vit_large_patch14_dinov2', 'vit_large_patch14_reg4_dinov2', 'vit_large_patch14_xp_224', 'vit_large_patch16_224', 'vit_large_patch16_384', 'vit_large_patch16_dinov3', 'vit_large_patch16_dinov3_qkvb', 'vit_large_patch16_rope_224', 'vit_large_patch16_rope_ape_224', 'vit_large_patch16_rope_mixed_224', 'vit_large_patch16_rope_mixed_ape_224', 'vit_large_patch16_siglip_256', 'vit_large_patch16_siglip_384', 'vit_large_patch16_siglip_512', 'vit_large_patch16_siglip_gap_256', 'vit_large_patch16_siglip_gap_384', 'vit_large_patch16_siglip_gap_512', 'vit_large_patch32_224', 'vit_large_patch32_384', 'vit_large_r50_s32_224', 'vit_large_r50_s32_384', 'vit_little_patch16_reg1_gap_256', 'vit_little_patch16_reg4_gap_256', 'vit_medium_patch16_clip_224', 'vit_medium_patch16_gap_240', 'vit_medium_patch16_gap_256', 'vit_medium_patch16_gap_384', 'vit_medium_patch16_reg1_gap_256', 'vit_medium_patch16_reg4_gap_256', 'vit_medium_patch16_rope_reg1_gap_256', 'vit_medium_patch32_clip_224', 'vit_mediumd_patch16_reg4_gap_256', 'vit_mediumd_patch16_reg4_gap_384', 'vit_mediumd_patch16_rope_reg1_gap_256', 'vit_pe_core_base_patch16_224', 'vit_pe_core_gigantic_patch14_448', 'vit_pe_core_large_patch14_336', 'vit_pe_core_small_patch16_384', 'vit_pe_core_tiny_patch16_384', 'vit_pe_lang_gigantic_patch14_448', 'vit_pe_lang_large_patch14_448', 'vit_pe_spatial_base_patch16_512', 'vit_pe_spatial_gigantic_patch14_448', 'vit_pe_spatial_large_patch14_448', 'vit_pe_spatial_small_patch16_512', 'vit_pe_spatial_tiny_patch16_512', 'vit_pwee_patch16_reg1_gap_256', 'vit_relpos_base_patch16_224', 'vit_relpos_base_patch16_cls_224', 'vit_relpos_base_patch16_clsgap_224', 'vit_relpos_base_patch16_plus_240', 'vit_relpos_base_patch16_rpn_224', 'vit_relpos_base_patch32_plus_rpn_256', 'vit_relpos_medium_patch16_224', 'vit_relpos_medium_patch16_cls_224', 'vit_relpos_medium_patch16_rpn_224', 'vit_relpos_small_patch16_224', 'vit_relpos_small_patch16_rpn_224', 'vit_small_patch8_224', 'vit_small_patch14_dinov2', 'vit_small_patch14_reg4_dinov2', 'vit_small_patch16_18x2_224', 'vit_small_patch16_36x1_224', 'vit_small_patch16_224', 'vit_small_patch16_384', 'vit_small_patch16_dinov3', 'vit_small_patch16_dinov3_qkvb', 'vit_small_patch16_rope_224', 'vit_small_patch16_rope_ape_224', 'vit_small_patch16_rope_mixed_224', 'vit_small_patch16_rope_mixed_ape_224', 'vit_small_patch32_224', 'vit_small_patch32_384', 'vit_small_plus_patch16_dinov3', 'vit_small_plus_patch16_dinov3_qkvb', 'vit_small_r26_s32_224', 'vit_small_r26_s32_384', 'vit_small_resnet26d_224', 'vit_small_resnet50d_s16_224', 'vit_so150m2_patch16_reg1_gap_256', 'vit_so150m2_patch16_reg1_gap_384', 'vit_so150m2_patch16_reg1_gap_448', 'vit_so150m_patch16_reg4_gap_256', 'vit_so150m_patch16_reg4_gap_384', 'vit_so150m_patch16_reg4_map_256', 'vit_so400m_patch14_siglip_224', 'vit_so400m_patch14_siglip_378', 'vit_so400m_patch14_siglip_384', 'vit_so400m_patch14_siglip_gap_224', 'vit_so400m_patch14_siglip_gap_378', 'vit_so400m_patch14_siglip_gap_384', 'vit_so400m_patch14_siglip_gap_448', 'vit_so400m_patch14_siglip_gap_896', 'vit_so400m_patch16_siglip_256', 'vit_so400m_patch16_siglip_384', 'vit_so400m_patch16_siglip_512', 'vit_so400m_patch16_siglip_gap_256', 'vit_so400m_patch16_siglip_gap_384', 'vit_so400m_patch16_siglip_gap_512', 'vit_srelpos_medium_patch16_224', 'vit_srelpos_small_patch16_224', 'vit_tiny_patch16_224', 'vit_tiny_patch16_384', 'vit_tiny_r_s16_p8_224', 'vit_tiny_r_s16_p8_384', 'vit_wee_patch16_reg1_gap_256', 'vit_xsmall_patch16_clip_224', 'vitamin_base_224', 'vitamin_large2_224', 'vitamin_large2_256', 'vitamin_large2_336', 'vitamin_large2_384', 'vitamin_large_224', 'vitamin_large_256', 'vitamin_large_336', 'vitamin_large_384', 'vitamin_small_224', 'vitamin_xlarge_256', 'vitamin_xlarge_336', 'vitamin_xlarge_384', 'volo_d1_224', 'volo_d1_384', 'volo_d2_224', 'volo_d2_384', 'volo_d3_224', 'volo_d3_448', 'volo_d4_224', 'volo_d4_448', 'volo_d5_224', 'volo_d5_448', 'volo_d5_512', 'vovnet39a', 'vovnet57a', 'wide_resnet50_2', 'wide_resnet101_2', 'xception41', 'xception41p', 'xception65', 'xception65p', 'xception71', 'xcit_large_24_p8_224', 'xcit_large_24_p8_384', 'xcit_large_24_p16_224', 'xcit_large_24_p16_384', 'xcit_medium_24_p8_224', 'xcit_medium_24_p8_384', 'xcit_medium_24_p16_224', 'xcit_medium_24_p16_384', 'xcit_nano_12_p8_224', 'xcit_nano_12_p8_384', 'xcit_nano_12_p16_224', 'xcit_nano_12_p16_384', 'xcit_small_12_p8_224', 'xcit_small_12_p8_384', 'xcit_small_12_p16_224', 'xcit_small_12_p16_384', 'xcit_small_24_p8_224', 'xcit_small_24_p8_384', 'xcit_small_24_p16_224', 'xcit_small_24_p16_384', 'xcit_tiny_12_p8_224', 'xcit_tiny_12_p8_384', 'xcit_tiny_12_p16_224', 'xcit_tiny_12_p16_384', 'xcit_tiny_24_p8_224', 'xcit_tiny_24_p8_384', 'xcit_tiny_24_p16_224', 'xcit_tiny_24_p16_384']

# let's just list out the Prithvi models in the terratorch source

print([mod for mod in BACKBONE_REGISTRY._sources['terratorch'] if 'prithvi' in mod])

['prithvi_eo_tiny', 'prithvi_eo_v1_100', 'prithvi_eo_v2_tiny_tl', 'prithvi_eo_v2_100_tl', 'prithvi_eo_v2_300', 'prithvi_eo_v2_600', 'prithvi_eo_v2_300_tl', 'prithvi_eo_v2_600_tl']

There are many different prithvi versions to select from – for this demo we will choose the smaller prithvi_eo_v1_100.

Explore decoders

from terratorch.registry import DECODER_REGISTRY

# Check available decoders
for name, source in DECODER_REGISTRY._sources.items():
    print(f"\n===={name}=====")
    print(list(source))

====terratorch=====
['ASPPModule', 'ASPPHead', 'ASPPSegmentationHead', 'ASPPRegressionHead', 'FCNDecoder', 'IdentityDecoder', 'LinearDecoder', 'MLPDecoder', 'SatMAEHead', 'UNetDecoder', 'UperNetDecoder']

====smp=====
['DeepLabV3Plus', 'FPN', 'PSPNet', 'UPerNet', 'Segformer', 'Linknet', 'PAN', 'DeepLabV3', 'Unet', 'UnetPlusPlus', 'MAnet']

We choose the FCNDecoder because it is good for Classification tasks.

Define your Task

from terratorch.tasks import ClassificationTask

task = ClassificationTask(

    # Define your model
    model_factory="EncoderDecoderFactory", # TerraTorch's EncoderDecoderFactory, where we found our models
    model_args={
        'backbone': 'prithvi_eo_v1_100', # Smaller Prithvi model for demo
        'backbone_pretrained': True, # Train from scratch or use pre-trained weights?
        'decoder': 'FCNDecoder', # Chosen decoder for classification
        'num_classes': len(class_names),
    },

    # What would you like to train?
    freeze_backbone=True, # Do not update prithvi weights for demo
    freeze_decoder=False, # Train the decoder

    # Optionally, change hyperparameters from the defaults
    loss='ce',
    lr=1e-4
)

WARNING:root:Decoder FCNDecoder does not have an `includes_head` attribute. Falling back to the value of the registry.

Step 4: Train your model

Now that we have our Task and DataModule, we can easily use PyTorch Lightning to train our model.

We also use Weights and Biases to check our progress during training.

from lightning.pytorch.loggers import WandbLogger
from lightning.pytorch import Trainer
from lightning.pytorch.callbacks import EarlyStopping, ModelCheckpoint, RichProgressBar, LearningRateMonitor

# Auto-detect best precision based on available hardware
if torch.cuda.is_available():
    precision = "16-mixed"  # CUDA supports mixed precision well
elif torch.backends.mps.is_available():
    precision = "32"  # MPS has limited 16-bit support
else:
    precision = "32"  # CPU doesn't benefit from mixed precision


# Initialize callbacks
# Save the best and the last model
checkpoint_callback = ModelCheckpoint(
    monitor=task.monitor, save_top_k=1, save_last=True)
# Stop training if validation metrics stop improving for a certain number of epochs
early_stopping_callback = EarlyStopping(
    monitor=task.monitor, min_delta=0.00, patience=20)

# Set this to None so we can load the best model from checkpoint later
checkpoint_callback.best_model_path = None

Now we can define our Trainer.

# Check your progress and results during training using Weights and Biases.
# You'll have to make an account but it's very useful.
# Just click the link it gives you to watch your training progress plotted in real time.

wandb_logger = WandbLogger(log_model="all")

# Define your Trainer
trainer = Trainer(
    accelerator="auto",
    devices=1,  # Number of GPUs. Interactive mode recommended with 1 device
    precision=precision,  # Mac MPS has limited support for 16-bit floats
    # precision="16-mixed", # Use 16-bit floats as opposed to 32-bit (higher precision) when it's safe to save on time and memory
    callbacks=[
        RichProgressBar(),
        checkpoint_callback,
        early_stopping_callback,
        LearningRateMonitor(logging_interval="epoch"),
    ],
    logger=wandb_logger,
    max_epochs=100,  # Train for up to 100 epochs
    default_root_dir='output/tutorial',  # where checkpoints/logs go.
    log_every_n_steps=1,
    check_val_every_n_epoch=1  # How frequently to calcualte validation performance
)

# Fit your model!
# _ = trainer.fit(model=task, datamodule=datamodule)

Step 5: Run inference with your trained model

Now that we have a trained model, let’s see how to use it for predictions on new images.

Load the best checkpoint

After training, the best model is saved. Let’s load it.

Note: If you just trained your model, the checkpoint_callback.best_model_path should already be set to the path of the best model. If you didn’t run the training step, you will need to set the best_model_path to the path of the best model.

# Load the best model from checkpoint
if checkpoint_callback.best_model_path is not None:
    # If the best model path is not None, use it
    best_model_path = checkpoint_callback.best_model_path
else:
    # If the best model path is None, use a default path (must already exist!)
    best_model_path = 'lightning_logs/ym9pbv87/checkpoints/epoch=51-step=156.ckpt'
print(f"Best model saved at: {best_model_path}")

Best model saved at: lightning_logs/ym9pbv87/checkpoints/epoch=51-step=156.ckpt

# Load the model for inference
from terratorch.tasks import ClassificationTask

# Load the model for inference using the ClassificationTask class
# This is the same class we used to train the model
trained_task = ClassificationTask.load_from_checkpoint(best_model_path)

# Set the model to evaluation mode
# This is important to ensure the model is in the correct mode for inference
trained_task.eval() # set to evaluation mode

WARNING:root:Decoder FCNDecoder does not have an `includes_head` attribute. Falling back to the value of the registry.

ClassificationTask(
  (model): ScalarOutputModel(
    (encoder): PrithviViT(
      (patch_embed): PatchEmbed(
        (proj): Conv3d(6, 768, kernel_size=(1, 16, 16), stride=(1, 16, 16))
        (norm): Identity()
      )
      (blocks): ModuleList(
        (0-11): 12 x Block(
          (norm1): LayerNorm((768,), eps=1e-05, elementwise_affine=True)
          (attn): Attention(
            (qkv): Linear(in_features=768, out_features=2304, bias=True)
            (q_norm): Identity()
            (k_norm): Identity()
            (attn_drop): Dropout(p=0.0, inplace=False)
            (norm): Identity()
            (proj): Linear(in_features=768, out_features=768, bias=True)
            (proj_drop): Dropout(p=0.0, inplace=False)
          )
          (ls1): Identity()
          (drop_path1): Identity()
          (norm2): LayerNorm((768,), eps=1e-05, elementwise_affine=True)
          (mlp): Mlp(
            (fc1): Linear(in_features=768, out_features=3072, bias=True)
            (act): GELU(approximate='none')
            (drop1): Dropout(p=0.0, inplace=False)
            (norm): Identity()
            (fc2): Linear(in_features=3072, out_features=768, bias=True)
            (drop2): Dropout(p=0.0, inplace=False)
          )
          (ls2): Identity()
          (drop_path2): Identity()
        )
      )
      (norm): LayerNorm((768,), eps=1e-05, elementwise_affine=True)
    )
    (decoder): FCNDecoder(
      (convs): Sequential(
        (0): Sequential(
          (0): ConvTranspose2d(768, 256, kernel_size=(2, 2), stride=(2, 2))
          (1): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
          (2): Norm2d(
            (ln): LayerNorm((256,), eps=1e-06, elementwise_affine=True)
          )
          (3): GELU(approximate='none')
        )
        (1): Sequential(
          (0): ConvTranspose2d(256, 256, kernel_size=(2, 2), stride=(2, 2))
          (1): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
          (2): Norm2d(
            (ln): LayerNorm((256,), eps=1e-06, elementwise_affine=True)
          )
          (3): GELU(approximate='none')
        )
        (2): Sequential(
          (0): ConvTranspose2d(256, 256, kernel_size=(2, 2), stride=(2, 2))
          (1): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
          (2): Norm2d(
            (ln): LayerNorm((256,), eps=1e-06, elementwise_affine=True)
          )
          (3): GELU(approximate='none')
        )
        (3): Sequential(
          (0): ConvTranspose2d(256, 256, kernel_size=(2, 2), stride=(2, 2))
          (1): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
          (2): Norm2d(
            (ln): LayerNorm((256,), eps=1e-06, elementwise_affine=True)
          )
          (3): GELU(approximate='none')
        )
      )
    )
    (head): ClassificationHead(
      (head): Sequential(
        (0): Identity()
        (1): Identity()
        (2): Linear(in_features=256, out_features=10, bias=True)
      )
    )
    (aux_heads): ModuleDict()
  )
  (criterion): CrossEntropyLoss()
  (train_metrics): MetricCollection(
    (Accuracy): MulticlassAccuracy()
    (Accuracy_Micro): MulticlassAccuracy()
    (Class_Accuracy): ClasswiseWrapper(
      (metric): MulticlassAccuracy()
    )
    (Class_F1): ClasswiseWrapper(
      (metric): MulticlassF1Score()
    )
    (F1_Score): MulticlassF1Score()
    (Precision): MulticlassPrecision()
    (Recall): MulticlassRecall(),
    prefix=train/
  )
  (val_metrics): MetricCollection(
    (Accuracy): MulticlassAccuracy()
    (Accuracy_Micro): MulticlassAccuracy()
    (Class_Accuracy): ClasswiseWrapper(
      (metric): MulticlassAccuracy()
    )
    (Class_F1): ClasswiseWrapper(
      (metric): MulticlassF1Score()
    )
    (F1_Score): MulticlassF1Score()
    (Precision): MulticlassPrecision()
    (Recall): MulticlassRecall(),
    prefix=val/
  )
  (test_metrics): ModuleList(
    (0): MetricCollection(
      (Accuracy): MulticlassAccuracy()
      (Accuracy_Micro): MulticlassAccuracy()
      (Class_Accuracy): ClasswiseWrapper(
        (metric): MulticlassAccuracy()
      )
      (Class_F1): ClasswiseWrapper(
        (metric): MulticlassF1Score()
      )
      (F1_Score): MulticlassF1Score()
      (Precision): MulticlassPrecision()
      (Recall): MulticlassRecall(),
      prefix=test/
    )
  )
)

Get some test images

Run predictions

# Get a single batch from the validation dataloader (not yet transformed)
val_batch = next(iter(datamodule.val_dataloader()))

# Clone the images to avoid modifying the original data
# We will use these unnormalized images to visualize the predictions later
unnormalized_images = val_batch['image'].clone()

# Apply the same transforms used during training/validation
# This is important to ensure the images are in the same format as during training
val_images = datamodule.aug(val_batch)
# Get the labels for the batch, which are the ground truth labels
val_labels = val_batch['label']

# CHeck stats on images to see if they are normalized
print(f"Image min: {val_images['image'].min()}")
print(f"Image max: {val_images['image'].max()}")
print(f"Image mean: {val_images['image'].mean()}")
print(f"Image std: {val_images['image'].std()}")

# Now conduct inference using the transformed images:
trained_task.eval()
with torch.no_grad():
    outputs = trained_task(val_images['image'])
    # outputs.output is a tensor of shape (batch_size, num_classes)
    # We want to get the class with the highest probability
    # So we take the argmax of the output tensor
    # This gives us the predicted class for each image in the batch
    predictions = outputs.output.argmax(dim=1)

Image min: -1.7845385074615479
Image max: 3.436638355255127
Image mean: -0.5142390131950378
Image std: 0.8566247820854187

# Check accuracy on this batch
correct = (predictions == val_labels).sum().item()
accuracy = correct / len(val_labels)

print(f"Batch accuracy: {accuracy:.2%}")
print(f"Predicted: {predictions}")
print(f"True:      {val_labels}")

Batch accuracy: 31.25%
Predicted: tensor([0, 5, 5, 1, 7, 2, 7, 7, 3, 3, 5, 0, 1, 6, 4, 8])
True:      tensor([0, 0, 1, 1, 2, 2, 3, 3, 4, 4, 5, 5, 6, 6, 7, 7])

Visualize predictions

import matplotlib.pyplot as plt
import numpy as np
# Pick first 4 images to visualize
n_images = 4

# Re-define class names to match the order of the predictions and ground truth labels:
class_names = [
    "AnnualCrop",
    "Forest",
    "HerbaceousVegetation",
    "Highway",
    "Industrial",
    "Pasture",
    "PermanentCrop",
    "Residential",
    "River",
    "SeaLake"
]

fig, axes = plt.subplots(1, n_images, figsize=(15, 4))

for i in range(n_images):
    # val_images['images'] is now a [batch, 6, 224, 224] tensor
    # Get the i-th 6-channel image
    img_numpy = unnormalized_images[i].cpu().numpy()

    # to_rgb expects a 6-channel CHW numpy image as input
    rgb = to_rgb(img_numpy, bands=[2, 1, 0])

    axes[i].imshow(rgb)

    true_label = class_names[val_labels[i]]
    # predictions is used for predicted classes
    pred_label = class_names[predictions[i]]

    # Color code: green if correct, red if wrong
    color = 'green' if val_labels[i] == predictions[i] else 'red'

    axes[i].set_title(f"True: {true_label}\nPred: {pred_label}", color=color)
    axes[i].axis('off')

plt.tight_layout()
plt.show()

Get prediction probabilities

# Use the `predict` function to get predictions and probabilities
# Make sure to apply the same transforms to the image as during training

with torch.no_grad():
    # Use the validation dataloader to get predictions and probabilities for a batch
    val_loader = datamodule.val_dataloader()
    # Get a single batch from the validation dataloader (not yet transformed)
    val_batch = next(iter(val_loader))
    # Apply the same transforms used during training/validation
    transformed_batch = datamodule.aug(val_batch)
    # Take first image, keep batch dimension [1, C, H, W]
    transformed_image = transformed_batch['image'][0:1]  # Now properly normalized
    true_label = val_batch['label'][0]

    # Get predictions using forward pass
    trained_task.eval()
    output = trained_task(transformed_image)
    logits = output.output

    # Get predicted class
    preds = logits.argmax(dim=1)

    # Get probabilities using softmax
    import torch.nn.functional as F
    probs = F.softmax(logits, dim=1)

# `probs` is a tensor of shape (batch_size, num_classes)

# Look at the probabilities for the first image in the batch
print("First image probabilities:")
for i, class_name in enumerate(class_names):
    print(f"{class_name}: {probs[0, i]:.3f}")

First image probabilities:
AnnualCrop: 0.752
Forest: 0.004
HerbaceousVegetation: 0.004
Highway: 0.134
Industrial: 0.004
Pasture: 0.010
PermanentCrop: 0.076
Residential: 0.004
River: 0.010
SeaLake: 0.003

Bonus: Exploring model embeddings

Let’s visualize the embeddings of the pretrained and fine-tuned models to see how the classification head might have learned to separate classes, even though the backbone embeddings remain unchanged.

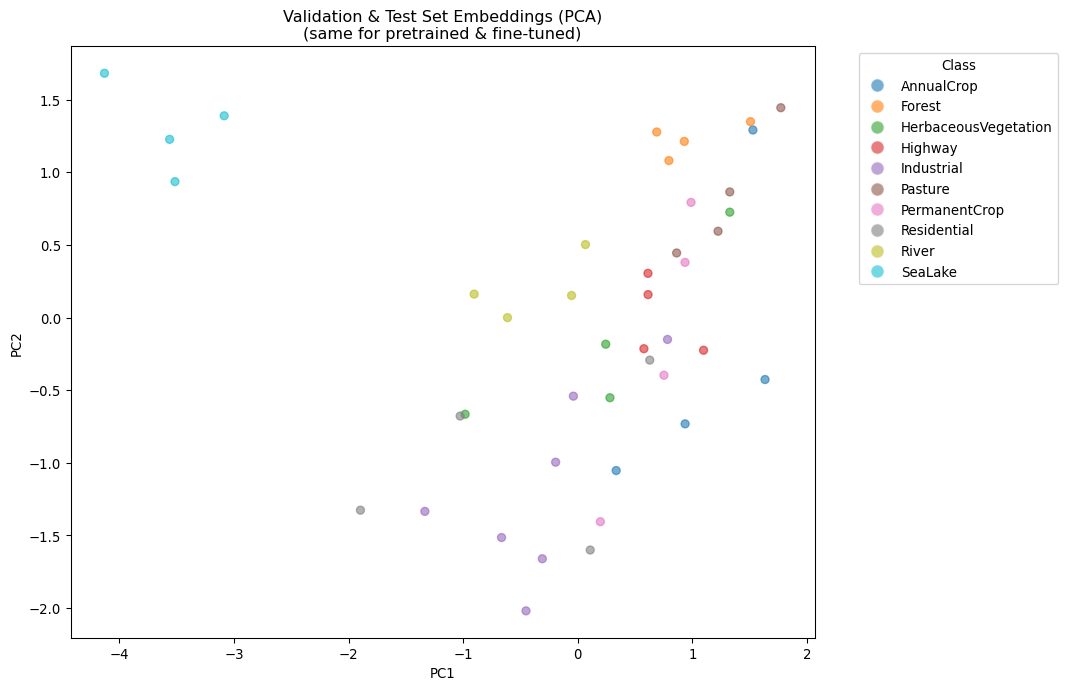

Visualize embedding space with PCA

from sklearn.decomposition import PCA
import matplotlib.pyplot as plt

# Increase the number of points by using both validation and test images
all_embeddings = []
all_labels = []

with torch.no_grad():
    # Set up test dataset if available
    datamodule.setup('test')
    loaders = [datamodule.val_dataloader(), datamodule.test_dataloader()]

    # Use validation (and test if available) sets for more points in PCA
    for loader in loaders:
        for batch in loader:
            # Apply the same transforms used during training/validation
            transformed_batch = datamodule.aug(batch)
            images = transformed_batch['image']  # Now properly normalized
            labels = batch['label']

            emb = trained_task.model.encoder(images)[-1]
            emb_flat = emb.mean(dim=1)  # Global average pooling

            all_embeddings.append(emb_flat.cpu())
            all_labels.append(labels.cpu())

all_embeddings = torch.cat(all_embeddings).numpy()
all_labels = torch.cat(all_labels).numpy()

# PCA to 2D
pca = PCA(n_components=2)
embeddings_2d = pca.fit_transform(all_embeddings)

# Plot with class names as legend entries
plt.figure(figsize=(10, 8))
scatter = plt.scatter(
    embeddings_2d[:, 0], embeddings_2d[:, 1],
    c=all_labels, cmap='tab10', alpha=0.6
)

# Build legend mapping colors back to class names
from matplotlib.lines import Line2D
import numpy as np

handles = []
unique_labels = np.unique(all_labels)
for label in unique_labels:
    color = scatter.cmap(scatter.norm(label))
    handles.append(Line2D(
        [0], [0], marker='o', color='w', label=class_names[label],
        markerfacecolor=color, markersize=10, alpha=0.6
    ))
plt.legend(handles=handles, title="Class", bbox_to_anchor=(1.05, 1), loc='upper left')

plt.title('Validation & Test Set Embeddings (PCA)\n(same for pretrained & fine-tuned)')
plt.xlabel('PC1')
plt.ylabel('PC2')
plt.show()
