Geospatial Patch Extraction for Foundation Models

From Satellite Imagery to Vision Transformer Inputs

Introduction: Why Patches Matter in Geospatial AI

When working with satellite imagery and geospatial foundation models (GFMs), one of the most critical preprocessing steps is patch extraction — the process of dividing large satellite images into smaller, manageable pieces that can be fed into neural networks. This isn’t just a technical necessity; it’s a fundamental design choice that affects everything from computational efficiency to model performance.

The Scale Challenge in Remote Sensing

Satellite images present unique challenges compared to natural images used in computer vision:

  • Massive dimensions: A single Landsat scene covers 185×185 kilometers at 30m resolution, resulting in images with dimensions of approximately 6,000×6,000 pixels per band
  • Multi-spectral complexity: Satellite imagery often contains 7-13 spectral bands (compared to 3 RGB channels in natural images)
  • Memory constraints: Loading a full Sentinel-2 scene (10,980×10,980 pixels × 13 bands) would require over 6GB of RAM as float32 arrays
  • Computational limits: Most GPUs cannot process such large images in a single forward pass

How Vision Transformers Process Images

Vision Transformers (ViTs), the architecture underlying most geospatial foundation models, don’t process images as continuous arrays like Convolutional Neural Networks (CNNs). Instead, they:

  1. Divide images into fixed-size patches (typically 8×8, 16×16, or 32×32 pixels)
  2. Flatten each patch into a 1D vector (e.g., a 16×16×3 patch becomes a 768-element vector)
  3. Apply linear projection to transform patch vectors into embedding space
  4. Add positional encodings so the model knows where each patch came from spatially
  5. Process patches as a sequence using self-attention mechanisms

This patch-based approach is why understanding patch extraction is crucial for working with GFMs — the quality of your patches directly impacts model performance.

Fundamental Concepts: From Images to Tokens

The Patch Extraction Pipeline

%%{init: { 'logLevel': 'debug' } }%%
graph TD
    A[Satellite Image<br/>H x W x C] --> B[Spatial Tiling<br/>Divide into regions]
    B --> C[Patch Extraction<br/>Fixed-size windows]
    C --> D[Patch Flattening<br/>3D to 1D vectors]
    D --> E[Linear Projection<br/>To embedding space]
    E --> F[Add Positional Encoding<br/>Spatial awareness]
    F --> G[Token Sequence<br/>Ready for Transformer]

    style A fill:#e1f5fe
    style G fill:#f3e5f5

Let’s work through this pipeline step by step using real examples.

Step 1: Understanding Image Dimensions and Memory

First, let’s examine what we’re working with when we load satellite imagery and why patches are necessary.

import numpy as np
import matplotlib.pyplot as plt

# Simulate dimensions of common satellite image types
satellite_scenarios = {
    'Landsat-8 Scene': {'height': 7611, 'width': 7791, 'bands': 11, 'pixel_size': 30},
    'Sentinel-2 Tile': {'height': 10980, 'width': 10980, 'bands': 13, 'pixel_size': 10},
    'MODIS Daily': {'height': 1200, 'width': 1200, 'bands': 36, 'pixel_size': 500},
    'High-res Drone': {'height': 20000, 'width': 20000, 'bands': 3, 'pixel_size': 0.1}
}

print("Memory Requirements for Full Images (as float32):")
print("="*60)

for name, specs in satellite_scenarios.items():
    # Calculate total pixels
    total_pixels = specs['height'] * specs['width'] * specs['bands']

    # Memory in bytes (float32 = 4 bytes per value)
    memory_bytes = total_pixels * 4
    memory_gb = memory_bytes / (1024**3)

    # Coverage area
    area_m2 = (specs['height'] * specs['pixel_size']) * (specs['width'] * specs['pixel_size'])
    area_km2 = area_m2 / (1000**2)

    print(f"{name:20} | {specs['height']:5}×{specs['width']:5}×{specs['bands']:2} | {memory_gb:5.2f} GB | {area_km2:8.1f} km²")

print("\n💡 Key Insight: Even 'small' satellite images require gigabytes of memory!")
print("   Most GPUs have 8-24GB VRAM, so we must process images in smaller pieces.")
Memory Requirements for Full Images (as float32):
============================================================
Landsat-8 Scene      |  7611× 7791×11 |  2.43 GB |  53367.6 km²
Sentinel-2 Tile      | 10980×10980×13 |  5.84 GB |  12056.0 km²
MODIS Daily          |  1200× 1200×36 |  0.19 GB | 360000.0 km²
High-res Drone       | 20000×20000× 3 |  4.47 GB |      4.0 km²

💡 Key Insight: Even 'small' satellite images require gigabytes of memory!
   Most GPUs have 8-24GB VRAM, so we must process images in smaller pieces.

This memory constraint is the primary practical reason for patch extraction, but there are also theoretical advantages:

  • Spatial attention: Transformers can learn relationships between different spatial regions
  • Scale invariance: Models trained on patches can potentially handle images of any size
  • Data augmentation: Each patch can be augmented independently, increasing training diversity

Step 2: Basic Patch Extraction Mechanics

Let’s start with a simple example to understand the mechanics. We’ll create a synthetic satellite-like image and show how patches are extracted:

# Create a synthetic multi-spectral "satellite" image with realistic structure
np.random.seed(42)

# Simulate different land cover types with distinct spectral signatures
height, width = 120, 180
bands = 4  # Red, Green, Blue, NIR (Near-Infrared)

# Initialize image array
satellite_img = np.zeros((height, width, bands))

# Create realistic land cover patterns
# Forest areas (low red, moderate green, low blue, high NIR)
forest_mask = np.random.random((height, width)) < 0.3
satellite_img[forest_mask] = [0.1, 0.4, 0.1, 0.8]

# Agricultural fields (moderate red, high green, low blue, very high NIR)
ag_mask = (~forest_mask) & (np.random.random((height, width)) < 0.4)
satellite_img[ag_mask] = [0.3, 0.6, 0.2, 0.9]

# Urban areas (moderate all visible, low NIR)
urban_mask = (~forest_mask) & (~ag_mask) & (np.random.random((height, width)) < 0.5)
satellite_img[urban_mask] = [0.4, 0.4, 0.4, 0.2]

# Water bodies (low red, low green, moderate blue, very low NIR)
water_mask = (~forest_mask) & (~ag_mask) & (~urban_mask)
satellite_img[water_mask] = [0.1, 0.2, 0.5, 0.1]

# Add some noise to make it more realistic
satellite_img += np.random.normal(0, 0.02, satellite_img.shape)
satellite_img = np.clip(satellite_img, 0, 1)

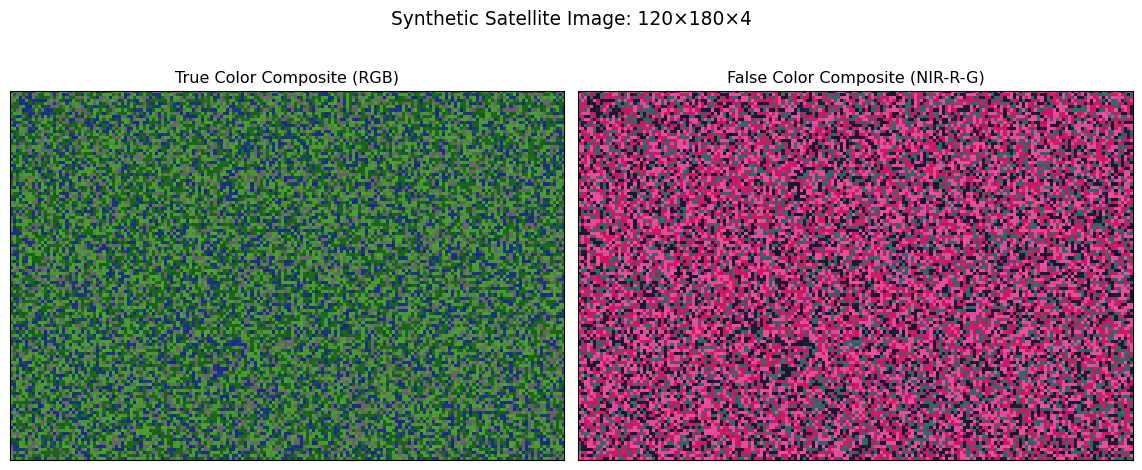

# Visualize using false color composite (NIR-Red-Green)
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(12, 5))

# True color (RGB)
ax1.imshow(satellite_img[:, :, [0, 1, 2]])  # Red, Green, Blue
ax1.set_title('True Color Composite (RGB)')
ax1.set_xticks([])
ax1.set_yticks([])

# False color (NIR-Red-Green) - vegetation appears red
false_color = satellite_img[:, :, [3, 0, 1]]  # NIR, Red, Green
ax2.imshow(false_color)
ax2.set_title('False Color Composite (NIR-R-G)')
ax2.set_xticks([])
ax2.set_yticks([])

plt.suptitle(f'Synthetic Satellite Image: {height}×{width}×{bands}', fontsize=14, y=1.02)
plt.tight_layout()
plt.show()

print(f"Image shape: {satellite_img.shape}")
print(f"Memory usage: {satellite_img.nbytes / (1024**2):.2f} MB")
print(f"Spectral bands: Red, Green, Blue, Near-Infrared")

Image shape: (120, 180, 4)
Memory usage: 0.66 MB
Spectral bands: Red, Green, Blue, Near-Infrared

Now let’s extract patches from this image and understand what happens at each step:

def extract_patches_with_visualization(image, patch_size, stride=None):
    """
    Extract patches from a multi-spectral image and visualize the process.

    Args:
        image: numpy array of shape (H, W, C)
        patch_size: int, size of square patches
        stride: int, step size between patches (defaults to patch_size for non-overlapping)

    Returns:
        patches: array of shape (n_patches, patch_size, patch_size, C)
        patch_positions: list of (x, y) coordinates for each patch
    """
    if stride is None:
        stride = patch_size

    H, W, C = image.shape
    patches = []
    patch_positions = []

    # Calculate how many patches fit
    n_patches_y = (H - patch_size) // stride + 1
    n_patches_x = (W - patch_size) // stride + 1

    # Extract patches
    for i in range(n_patches_y):
        for j in range(n_patches_x):
            y = i * stride
            x = j * stride

            # Ensure patch doesn't exceed image boundaries
            if y + patch_size <= H and x + patch_size <= W:
                patch = image[y:y+patch_size, x:x+patch_size, :]
                patches.append(patch)
                patch_positions.append((x, y))

    return np.array(patches), patch_positions

# Extract patches
patch_size = 30
stride = 30  # Non-overlapping patches

patches, positions = extract_patches_with_visualization(satellite_img, patch_size, stride)

print(f"Original image: {satellite_img.shape}")
print(f"Patch size: {patch_size}×{patch_size}")
print(f"Stride: {stride} (overlap: {patch_size-stride} pixels)")
print(f"Patches extracted: {patches.shape[0]}")
print(f"Patch array shape: {patches.shape}")
print(f"Memory per patch: {patches[0].nbytes / 1024:.2f} KB")
print(f"Total patch memory: {patches.nbytes / (1024**2):.2f} MB")
Original image: (120, 180, 4)
Patch size: 30×30
Stride: 30 (overlap: 0 pixels)
Patches extracted: 24
Patch array shape: (24, 30, 30, 4)
Memory per patch: 28.12 KB
Total patch memory: 0.66 MB

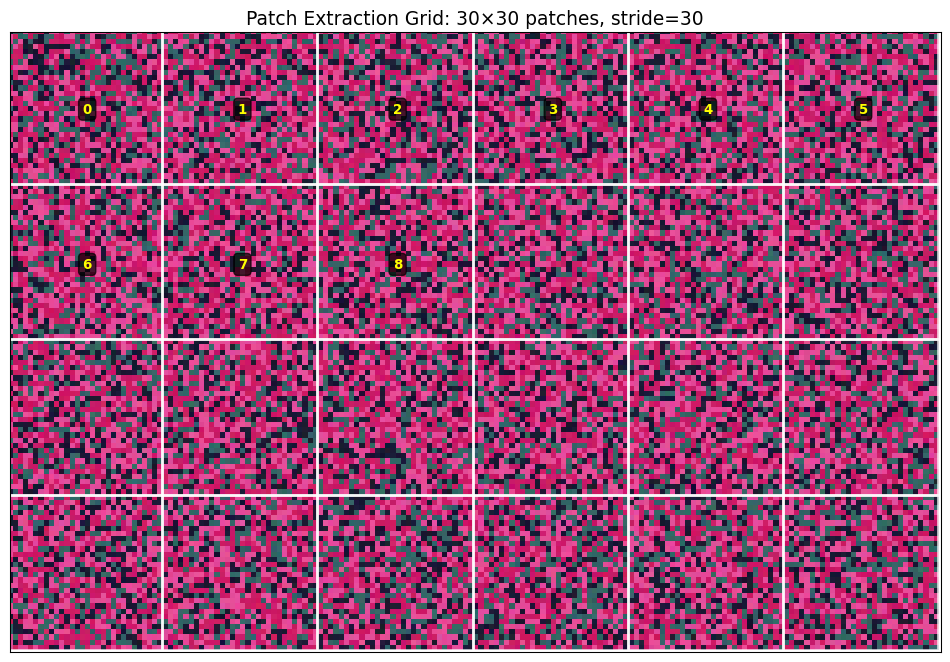

Visualizing the Patch Grid

Understanding where patches come from spatially is crucial for interpreting model outputs later:

# Visualize patch extraction grid on the original image
fig, ax = plt.subplots(figsize=(10, 7))

# Show the false color composite as background
ax.imshow(satellite_img[:, :, [3, 0, 1]])  # NIR-Red-Green

# Draw patch boundaries
for i, (x, y) in enumerate(positions):
    # Draw patch boundary
    rect = plt.Rectangle((x-0.5, y-0.5), patch_size, patch_size,
                        linewidth=2, edgecolor='white', facecolor='none', alpha=0.8)
    ax.add_patch(rect)

    # Label first few patches to show indexing
    if i < 9:  # Only label first 9 patches to avoid clutter
        center_x, center_y = x + patch_size//2, y + patch_size//2
        ax.text(center_x, center_y, str(i), ha='center', va='center',
                fontsize=10, color='yellow', weight='bold',
                bbox=dict(boxstyle="round,pad=0.3", facecolor='black', alpha=0.7))

ax.set_xlim(0, satellite_img.shape[1])
ax.set_ylim(satellite_img.shape[0], 0)
ax.set_xticks([])
ax.set_yticks([])
ax.set_title(f'Patch Extraction Grid: {patch_size}×{patch_size} patches, stride={stride}', fontsize=14)

plt.tight_layout()
plt.show()

Step 3: From Patches to Tokens

Now let’s demonstrate how these patches become the input tokens that Vision Transformers process:

def patches_to_tokens_demo(patches, embed_dim=256):
    """
    Demonstrate the conversion from image patches to transformer tokens.
    This simulates what happens inside a Vision Transformer.
    """
    n_patches, patch_h, patch_w, channels = patches.shape

    # Step 1: Flatten each patch into a 1D vector
    # This is what ViTs do: treat each patch as a "word" in a sequence
    flattened_patches = patches.reshape(n_patches, patch_h * patch_w * channels)

    print("Token Creation Process:")
    print("="*40)
    print(f"1. Input patches shape: {patches.shape}")
    print(f"   - {n_patches} patches")
    print(f"   - Each patch: {patch_h}×{patch_w}×{channels} = {patch_h*patch_w*channels} values")
    print(f"2. Flattened patches: {flattened_patches.shape}")
    print(f"   - Each patch becomes a {flattened_patches.shape[1]}-dimensional vector")

    # Step 2: Linear projection to embedding space (simplified simulation)
    # In real ViTs, this is a learnable linear layer: nn.Linear(patch_dim, embed_dim)
    np.random.seed(42)  # For reproducible "projection"
    projection_matrix = np.random.randn(flattened_patches.shape[1], embed_dim) * 0.1
    token_embeddings = flattened_patches @ projection_matrix

    print(f"3. Linear projection to embeddings: {token_embeddings.shape}")
    print(f"   - Each token now has {embed_dim} dimensions")
    print(f"   - These embeddings will be processed by transformer layers")

    # Step 3: Add positional encodings (simplified)
    # This tells the model where each patch came from spatially
    positions_2d = np.array([(i % int(np.sqrt(n_patches)), i // int(np.sqrt(n_patches)))
                            for i in range(n_patches)])

    print(f"4. Spatial positions: {positions_2d.shape}")
    print(f"   - Each token gets x,y coordinates of its source patch")
    print(f"   - This preserves spatial relationships")

    return token_embeddings, positions_2d

# Convert our extracted patches to tokens
token_embeddings, spatial_positions = patches_to_tokens_demo(patches)

# Visualize token statistics
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(12, 5))

# Distribution of token embedding values
ax1.hist(token_embeddings.flatten(), bins=50, alpha=0.7, color='skyblue', edgecolor='black')
ax1.set_xlabel('Embedding Value')
ax1.set_ylabel('Frequency')
ax1.set_title('Distribution of Token Embedding Values')
ax1.grid(True, alpha=0.3)

# Show spatial positions
ax2.scatter(spatial_positions[:, 0], spatial_positions[:, 1],
           c=range(len(spatial_positions)), cmap='viridis', s=100)
ax2.set_xlabel('Patch X Position')
ax2.set_ylabel('Patch Y Position')
ax2.set_title('Spatial Positions of Tokens')
ax2.grid(True, alpha=0.3)
for i, (x, y) in enumerate(spatial_positions[:9]):  # Label first 9
    ax2.annotate(str(i), (x, y), xytext=(5, 5), textcoords='offset points', fontsize=8)

plt.tight_layout()
plt.show()
Token Creation Process:
========================================
1. Input patches shape: (24, 30, 30, 4)
   - 24 patches
   - Each patch: 30×30×4 = 3600 values
2. Flattened patches: (24, 3600)
   - Each patch becomes a 3600-dimensional vector
3. Linear projection to embeddings: (24, 256)
   - Each token now has 256 dimensions
   - These embeddings will be processed by transformer layers
4. Spatial positions: (24, 2)
   - Each token gets x,y coordinates of its source patch
   - This preserves spatial relationships

Real-World Considerations: Memory, Computation, and Scale

Computational Requirements Analysis

Before diving into advanced techniques, let’s understand the computational trade-offs involved in different patch extraction strategies:

def analyze_computational_requirements():
    """
    Analyze memory and computational requirements for different patch strategies
    with real satellite imagery scenarios.
    """

    # Common GFM patch sizes used in literature
    patch_sizes = [8, 16, 32, 64]

    # Realistic satellite image scenarios
    scenarios = {
        'Sentinel-2 10m': {'height': 10980, 'width': 10980, 'bands': 4},  # RGB + NIR
        'Landsat-8': {'height': 7791, 'width': 7611, 'bands': 7},  # Selected bands
        'MODIS 250m': {'height': 4800, 'width': 4800, 'bands': 2},  # Red + NIR
        'Drone RGB': {'height': 8000, 'width': 8000, 'bands': 3}   # High-res RGB
    }

    print("Computational Analysis: Patches per Image")
    print("="*80)
    print(f"{'Scenario':15} {'Image Size':12} {'Patch':5} {'Patches':8} {'Memory/Batch':12} {'GPU Batches':10}")
    print("-"*80)

    for scenario_name, specs in scenarios.items():
        h, w, c = specs['height'], specs['width'], specs['bands']

        for patch_size in patch_sizes:
            # Calculate non-overlapping patches
            patches_y = h // patch_size
            patches_x = w // patch_size
            total_patches = patches_y * patches_x

            # Memory per patch in MB (float32)
            patch_memory_mb = (patch_size * patch_size * c * 4) / (1024**2)

            # Typical GPU memory limit (assume 16GB for analysis)
            gpu_memory_gb = 16
            # Reserve 4GB for model weights and intermediate activations
            available_memory_gb = gpu_memory_gb - 4
            available_memory_mb = available_memory_gb * 1024

            # Maximum patches per batch
            max_batch_size = int(available_memory_mb / patch_memory_mb)

            # How many GPU batches needed to process full image
            batches_needed = (total_patches + max_batch_size - 1) // max_batch_size

            print(f"{scenario_name:15} {h:4}×{w:4} {patch_size:3} {total_patches:8,} "
                  f"{patch_memory_mb:7.2f} MB {batches_needed:8}")

analyze_computational_requirements()

print("\n💡 Key Insights:")
print("   • Smaller patches = more patches = more GPU batches needed")
print("   • Larger patches = fewer patches but higher memory per patch")
print("   • Most real scenarios require multiple GPU batches for inference")
print("   • Memory-compute trade-off is crucial for deployment planning")
Computational Analysis: Patches per Image
================================================================================
Scenario        Image Size   Patch Patches  Memory/Batch GPU Batches
--------------------------------------------------------------------------------
Sentinel-2 10m  10980×10980   8 1,882,384    0.00 MB        1
Sentinel-2 10m  10980×10980  16  470,596    0.00 MB        1
Sentinel-2 10m  10980×10980  32  117,649    0.02 MB        1
Sentinel-2 10m  10980×10980  64   29,241    0.06 MB        1
Landsat-8       7791×7611   8  925,323    0.00 MB        1
Landsat-8       7791×7611  16  230,850    0.01 MB        1
Landsat-8       7791×7611  32   57,591    0.03 MB        1
Landsat-8       7791×7611  64   14,278    0.11 MB        1
MODIS 250m      4800×4800   8  360,000    0.00 MB        1
MODIS 250m      4800×4800  16   90,000    0.00 MB        1
MODIS 250m      4800×4800  32   22,500    0.01 MB        1
MODIS 250m      4800×4800  64    5,625    0.03 MB        1
Drone RGB       8000×8000   8 1,000,000    0.00 MB        1
Drone RGB       8000×8000  16  250,000    0.00 MB        1
Drone RGB       8000×8000  32   62,500    0.01 MB        1
Drone RGB       8000×8000  64   15,625    0.05 MB        1

💡 Key Insights:
   • Smaller patches = more patches = more GPU batches needed
   • Larger patches = fewer patches but higher memory per patch
   • Most real scenarios require multiple GPU batches for inference
   • Memory-compute trade-off is crucial for deployment planning

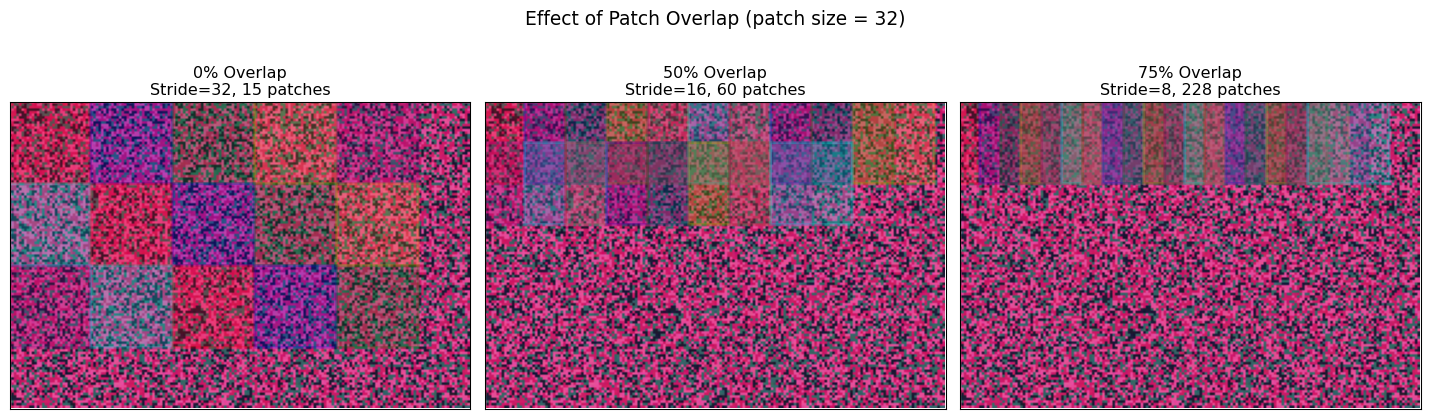

Overlapping Patches: Information vs. Computation Trade-offs

Many GFMs use overlapping patches to capture more spatial context and improve boundary handling. Let’s explore this trade-off:

def demonstrate_overlap_effects(image, patch_size=32):
    """
    Show how different stride values affect patch overlap and information coverage.
    """

    stride_values = [32, 16, 8]  # 0%, 50%, 75% overlap
    overlap_percentages = [0, 50, 75]

    fig, axes = plt.subplots(1, 3, figsize=(15, 5))

    for idx, (stride, overlap_pct) in enumerate(zip(stride_values, overlap_percentages)):
        ax = axes[idx]

        # Extract patches with this stride
        patches, positions = extract_patches_with_visualization(image, patch_size, stride)

        # Show image background
        ax.imshow(image[:, :, [3, 0, 1]])  # False color

        # Draw patch boundaries with different colors to show overlap
        colors = ['red', 'blue', 'green', 'orange', 'purple', 'cyan']
        for i, (x, y) in enumerate(positions[:18]):  # Show first 18 patches
            color = colors[i % len(colors)]
            rect = plt.Rectangle((x-0.5, y-0.5), patch_size, patch_size,
                               linewidth=2, edgecolor=color, facecolor=color,
                               alpha=0.2)
            ax.add_patch(rect)

        ax.set_xlim(0, image.shape[1])
        ax.set_ylim(image.shape[0], 0)
        ax.set_xticks([])
        ax.set_yticks([])
        ax.set_title(f'{overlap_pct}% Overlap\nStride={stride}, {len(positions)} patches')

    plt.suptitle(f'Effect of Patch Overlap (patch size = {patch_size})', fontsize=14)
    plt.tight_layout()
    plt.show()

    # Quantitative analysis
    print("Overlap Analysis:")
    print("="*50)
    for stride, overlap_pct in zip(stride_values, overlap_percentages):
        patches, _ = extract_patches_with_visualization(image, patch_size, stride)
        memory_mb = patches.nbytes / (1024**2)
        print(f"Overlap {overlap_pct:2}%: {len(patches):3} patches, {memory_mb:5.1f} MB")

demonstrate_overlap_effects(satellite_img)

print("\n💡 Overlap Trade-offs:")
print("   • More overlap = better spatial context + boundary handling")
print("   • More overlap = more patches = higher computational cost")
print("   • Optimal overlap depends on your specific task requirements")
print("   • Change detection often benefits from overlap")
print("   • Classification tasks may not need much overlap")

Overlap Analysis:
==================================================
Overlap  0%:  15 patches,   0.5 MB
Overlap 50%:  60 patches,   1.9 MB
Overlap 75%: 228 patches,   7.1 MB

💡 Overlap Trade-offs:
   • More overlap = better spatial context + boundary handling
   • More overlap = more patches = higher computational cost
   • Optimal overlap depends on your specific task requirements
   • Change detection often benefits from overlap
   • Classification tasks may not need much overlap

Handling Edge Cases: Padding Strategies for Real-World Data

When working with satellite imagery, images rarely divide evenly into patches. Different padding strategies offer different trade-offs between information preservation, computational efficiency, and model performance.

The Edge Problem

Let’s create a realistic scenario where image dimensions don’t divide evenly by patch size:

# Create a satellite image with dimensions that don't divide evenly
np.random.seed(42)
irregular_img = np.random.rand(155, 237, 4)  # Irregular dimensions
irregular_img = irregular_img * 0.3 + 0.4  # Moderate intensity values

patch_size = 32

# Calculate the mismatch
patches_y = irregular_img.shape[0] // patch_size
patches_x = irregular_img.shape[1] // patch_size
leftover_y = irregular_img.shape[0] % patch_size
leftover_x = irregular_img.shape[1] % patch_size

print("Edge Problem Analysis:")
print("="*40)
print(f"Image dimensions: {irregular_img.shape[0]}×{irregular_img.shape[1]}")
print(f"Patch size: {patch_size}×{patch_size}")
print(f"Complete patches fit: {patches_y}×{patches_x}")
print(f"Leftover pixels: {leftover_y} rows, {leftover_x} columns")
print(f"Unusable area: {(leftover_y * irregular_img.shape[1] + leftover_x * irregular_img.shape[0] - leftover_y * leftover_x):.0f} pixels")
print(f"Information loss: {100 * (leftover_y * irregular_img.shape[1] + leftover_x * irregular_img.shape[0] - leftover_y * leftover_x) / (irregular_img.shape[0] * irregular_img.shape[1]):.1f}%")
Edge Problem Analysis:
========================================
Image dimensions: 155×237
Patch size: 32×32
Complete patches fit: 4×7
Leftover pixels: 27 rows, 13 columns
Unusable area: 8063 pixels
Information loss: 21.9%

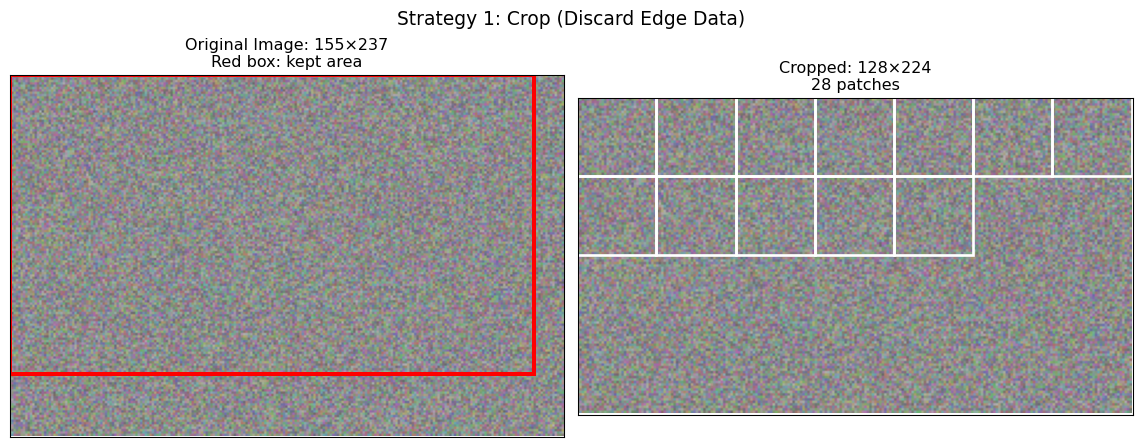

Strategy 1: Crop (Discard Incomplete Patches)

When to use: Speed is critical, edge information is less important, or when using overlapping patches that provide edge coverage.

def demonstrate_crop_strategy(image, patch_size):
    """
    Show crop strategy: discard patches that don't fit completely.
    """
    H, W, C = image.shape

    # Calculate largest area that fits complete patches
    crop_h = (H // patch_size) * patch_size
    crop_w = (W // patch_size) * patch_size

    # Crop image
    cropped_img = image[:crop_h, :crop_w, :]

    # Extract patches from cropped image
    patches, positions = extract_patches_with_visualization(cropped_img, patch_size)

    # Visualize
    fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(12, 5))

    # Original image with crop boundary
    ax1.imshow(image[:, :, :3])
    crop_rect = plt.Rectangle((0, 0), crop_w, crop_h,
                             linewidth=3, edgecolor='red', facecolor='none')
    ax1.add_patch(crop_rect)
    ax1.set_xlim(0, W)
    ax1.set_ylim(H, 0)
    ax1.set_title(f'Original Image: {H}×{W}\nRed box: kept area')
    ax1.set_xticks([])
    ax1.set_yticks([])

    # Cropped image with patches
    ax2.imshow(cropped_img[:, :, :3])
    for x, y in positions[:12]:  # Show first 12 patch boundaries
        rect = plt.Rectangle((x-0.5, y-0.5), patch_size, patch_size,
                           linewidth=2, edgecolor='white', facecolor='none')
        ax2.add_patch(rect)
    ax2.set_xlim(0, crop_w)
    ax2.set_ylim(crop_h, 0)
    ax2.set_title(f'Cropped: {crop_h}×{crop_w}\n{len(patches)} patches')
    ax2.set_xticks([])
    ax2.set_yticks([])

    plt.suptitle('Strategy 1: Crop (Discard Edge Data)', fontsize=14)
    plt.tight_layout()
    plt.show()

    # Statistics
    pixels_lost = H * W - crop_h * crop_w
    loss_percentage = 100 * pixels_lost / (H * W)

    print(f"Crop Strategy Results:")
    print(f"  Original: {H}×{W} = {H*W:,} pixels")
    print(f"  Cropped:  {crop_h}×{crop_w} = {crop_h*crop_w:,} pixels")
    print(f"  Lost:     {pixels_lost:,} pixels ({loss_percentage:.1f}%)")
    print(f"  Patches:  {len(patches)}")

    return cropped_img, patches

cropped_img, crop_patches = demonstrate_crop_strategy(irregular_img, patch_size)

Crop Strategy Results:
  Original: 155×237 = 36,735 pixels
  Cropped:  128×224 = 28,672 pixels
  Lost:     8,063 pixels (21.9%)
  Patches:  28

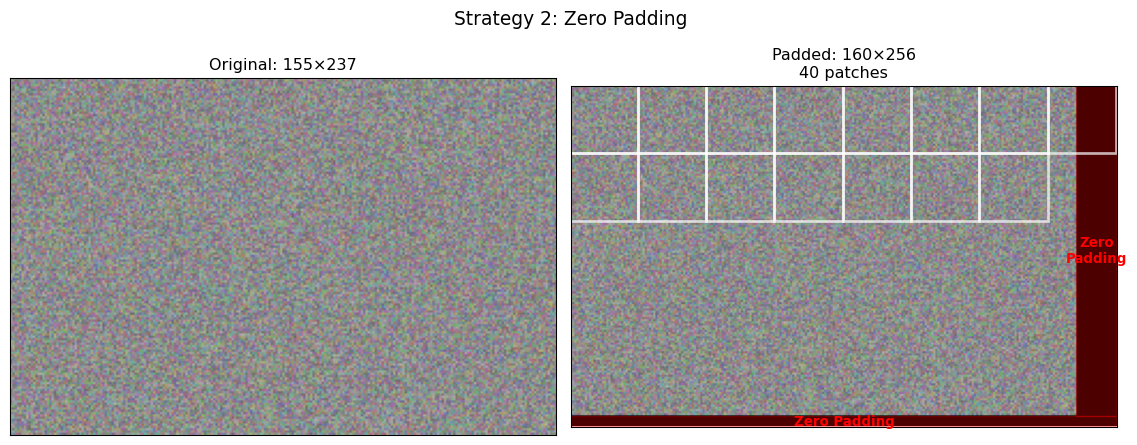

Strategy 2: Zero Padding

When to use: Complete coverage is essential, working with models robust to boundary artifacts, or when post-processing can handle padding effects.

def demonstrate_zero_padding(image, patch_size):
    """
    Show zero padding strategy: extend image with zeros to fit complete patches.
    """
    H, W, C = image.shape

    # Calculate padding needed
    pad_h = patch_size - (H % patch_size) if H % patch_size != 0 else 0
    pad_w = patch_size - (W % patch_size) if W % patch_size != 0 else 0

    # Apply zero padding
    padded_img = np.pad(image, ((0, pad_h), (0, pad_w), (0, 0)),
                        mode='constant', constant_values=0)

    # Extract patches
    patches, positions = extract_patches_with_visualization(padded_img, patch_size)

    # Visualize
    fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(12, 5))

    # Original image
    ax1.imshow(image[:, :, :3])
    ax1.set_title(f'Original: {H}×{W}')
    ax1.set_xticks([])
    ax1.set_yticks([])

    # Padded image with patches
    ax2.imshow(padded_img[:, :, :3])

    # Highlight padding areas
    if pad_w > 0:
        padding_rect = plt.Rectangle((W-0.5, -0.5), pad_w, H,
                                   facecolor='red', alpha=0.3, edgecolor='red')
        ax2.add_patch(padding_rect)
        ax2.text(W + pad_w/2, H/2, 'Zero\nPadding', ha='center', va='center',
                fontsize=10, color='red', weight='bold')

    if pad_h > 0:
        padding_rect = plt.Rectangle((-0.5, H-0.5), W + pad_w, pad_h,
                                   facecolor='red', alpha=0.3, edgecolor='red')
        ax2.add_patch(padding_rect)
        ax2.text((W + pad_w)/2, H + pad_h/2, 'Zero Padding', ha='center', va='center',
                fontsize=10, color='red', weight='bold')

    # Show some patch boundaries
    for x, y in positions[:15]:  # First 15 patches
        rect = plt.Rectangle((x-0.5, y-0.5), patch_size, patch_size,
                           linewidth=2, edgecolor='white', facecolor='none', alpha=0.7)
        ax2.add_patch(rect)

    ax2.set_xlim(0, padded_img.shape[1])
    ax2.set_ylim(padded_img.shape[0], 0)
    ax2.set_title(f'Padded: {padded_img.shape[0]}×{padded_img.shape[1]}\n{len(patches)} patches')
    ax2.set_xticks([])
    ax2.set_yticks([])

    plt.suptitle('Strategy 2: Zero Padding', fontsize=14)
    plt.tight_layout()
    plt.show()

    print(f"Zero Padding Results:")
    print(f"  Original: {H}×{W}")
    print(f"  Padding:  +{pad_h} rows, +{pad_w} columns")
    print(f"  Padded:   {padded_img.shape[0]}×{padded_img.shape[1]}")
    print(f"  Patches:  {len(patches)}")

    return padded_img, patches

padded_img, pad_patches = demonstrate_zero_padding(irregular_img, patch_size)

Zero Padding Results:
  Original: 155×237
  Padding:  +5 rows, +19 columns
  Padded:   160×256
  Patches:  40

Strategy 3: Reflect Padding

When to use: Image quality is critical, working with natural imagery where structure matters, or when models are sensitive to boundary artifacts.

def demonstrate_reflect_padding(image, patch_size):
    """
    Show reflect padding: mirror edge pixels for natural boundaries.
    """
    H, W, C = image.shape

    # Calculate padding needed
    pad_h = patch_size - (H % patch_size) if H % patch_size != 0 else 0
    pad_w = patch_size - (W % patch_size) if W % patch_size != 0 else 0

    # Apply reflection padding
    padded_img = np.pad(image, ((0, pad_h), (0, pad_w), (0, 0)), mode='reflect')

    # Extract patches
    patches, positions = extract_patches_with_visualization(padded_img, patch_size)

    # Visualize
    fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(12, 5))

    # Original
    ax1.imshow(image[:, :, :3])
    ax1.set_title(f'Original: {H}×{W}')
    ax1.set_xticks([])
    ax1.set_yticks([])

    # Padded with reflection highlighting
    ax2.imshow(padded_img[:, :, :3])

    # Draw boundary between original and reflected content
    if pad_w > 0:
        ax2.axvline(W-0.5, color='cyan', linewidth=3, alpha=0.8)
        ax2.text(W + pad_w/2, H/2, 'Reflected\nContent', ha='center', va='center',
                fontsize=10, color='cyan', weight='bold',
                bbox=dict(boxstyle="round,pad=0.3", facecolor='white', alpha=0.8))

    if pad_h > 0:
        ax2.axhline(H-0.5, color='cyan', linewidth=3, alpha=0.8)
        ax2.text((W + pad_w)/2, H + pad_h/2, 'Reflected Content', ha='center', va='center',
                fontsize=10, color='cyan', weight='bold',
                bbox=dict(boxstyle="round,pad=0.3", facecolor='white', alpha=0.8))

    # Show patch boundaries
    for x, y in positions[:15]:
        rect = plt.Rectangle((x-0.5, y-0.5), patch_size, patch_size,
                           linewidth=2, edgecolor='yellow', facecolor='none', alpha=0.7)
        ax2.add_patch(rect)

    ax2.set_xlim(0, padded_img.shape[1])
    ax2.set_ylim(padded_img.shape[0], 0)
    ax2.set_title(f'Reflect Padded: {padded_img.shape[0]}×{padded_img.shape[1]}\n{len(patches)} patches')
    ax2.set_xticks([])
    ax2.set_yticks([])

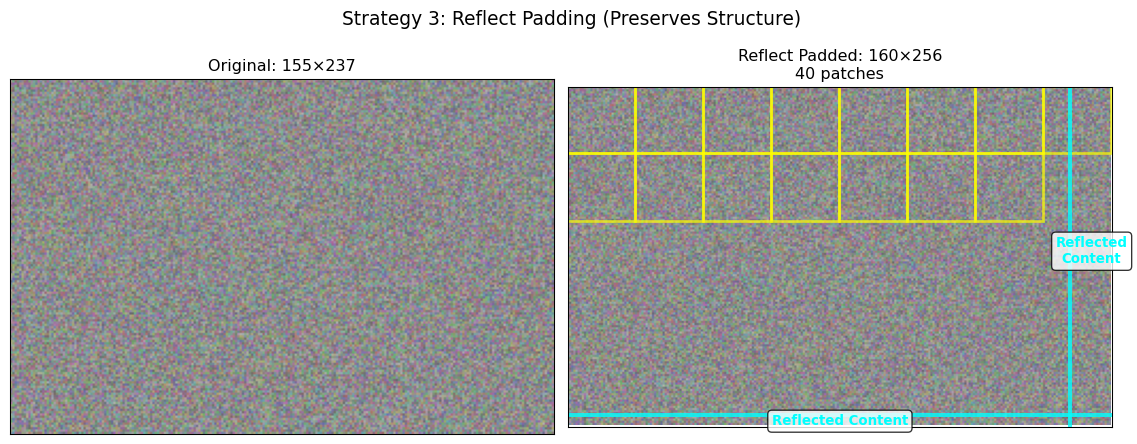

    plt.suptitle('Strategy 3: Reflect Padding (Preserves Structure)', fontsize=14)
    plt.tight_layout()
    plt.show()

    print(f"Reflect Padding Results:")
    print(f"  Original: {H}×{W}")
    print(f"  Padding:  +{pad_h} rows, +{pad_w} columns")
    print(f"  Padded:   {padded_img.shape[0]}×{padded_img.shape[1]}")
    print(f"  Patches:  {len(patches)}")
    print(f"  Note: Reflected content preserves local image structure")

    return padded_img, patches

reflect_img, reflect_patches = demonstrate_reflect_padding(irregular_img, patch_size)

Reflect Padding Results:
  Original: 155×237
  Padding:  +5 rows, +19 columns
  Padded:   160×256
  Patches:  40
  Note: Reflected content preserves local image structure

Comparing Padding Strategies

Let’s quantitatively compare how these strategies affect the actual patch content:

def compare_padding_strategies():
    """
    Compare the three padding strategies quantitatively.
    """
    print("Padding Strategy Comparison")
    print("="*60)
    print(f"{'Strategy':<15} {'Patches':<8} {'Memory (MB)':<12} {'Edge Coverage':<15} {'Artifacts'}")
    print("-"*60)

    strategies = [
        ('Crop', crop_patches, 'Incomplete', 'None'),
        ('Zero Pad', pad_patches, 'Complete', 'Boundary jumps'),
        ('Reflect Pad', reflect_patches, 'Complete', 'Minimal')
    ]

    for name, patches, coverage, artifacts in strategies:
        memory_mb = patches.nbytes / (1024**2)
        print(f"{name:<15} {len(patches):<8} {memory_mb:<12.1f} {coverage:<15} {artifacts}")

    # Visual comparison of edge patches
    fig, axes = plt.subplots(2, 3, figsize=(15, 10))

    # Top row: show full padded images
    images = [cropped_img, padded_img, reflect_img]
    titles = ['Cropped', 'Zero Padded', 'Reflect Padded']

    for i, (img, title) in enumerate(zip(images, titles)):
        axes[0, i].imshow(img[:, :, :3])
        axes[0, i].set_title(title)
        axes[0, i].set_xticks([])
        axes[0, i].set_yticks([])

    # Bottom row: show edge patches that contain padding
    patch_sets = [crop_patches, pad_patches, reflect_patches]

    for i, (patches, title) in enumerate(zip(patch_sets, titles)):
        if i == 0:  # Crop strategy - show a regular patch
            edge_patch = patches[-1]  # Last patch (still contains real data)
            axes[1, i].imshow(edge_patch[:, :, :3])
            axes[1, i].set_title(f'{title}: Regular patch')
        else:  # Padding strategies - show patch with padding
            edge_patch = patches[-1]  # Last patch (contains padding)
            axes[1, i].imshow(edge_patch[:, :, :3])
            axes[1, i].set_title(f'{title}: Edge patch')

        axes[1, i].set_xticks([])
        axes[1, i].set_yticks([])

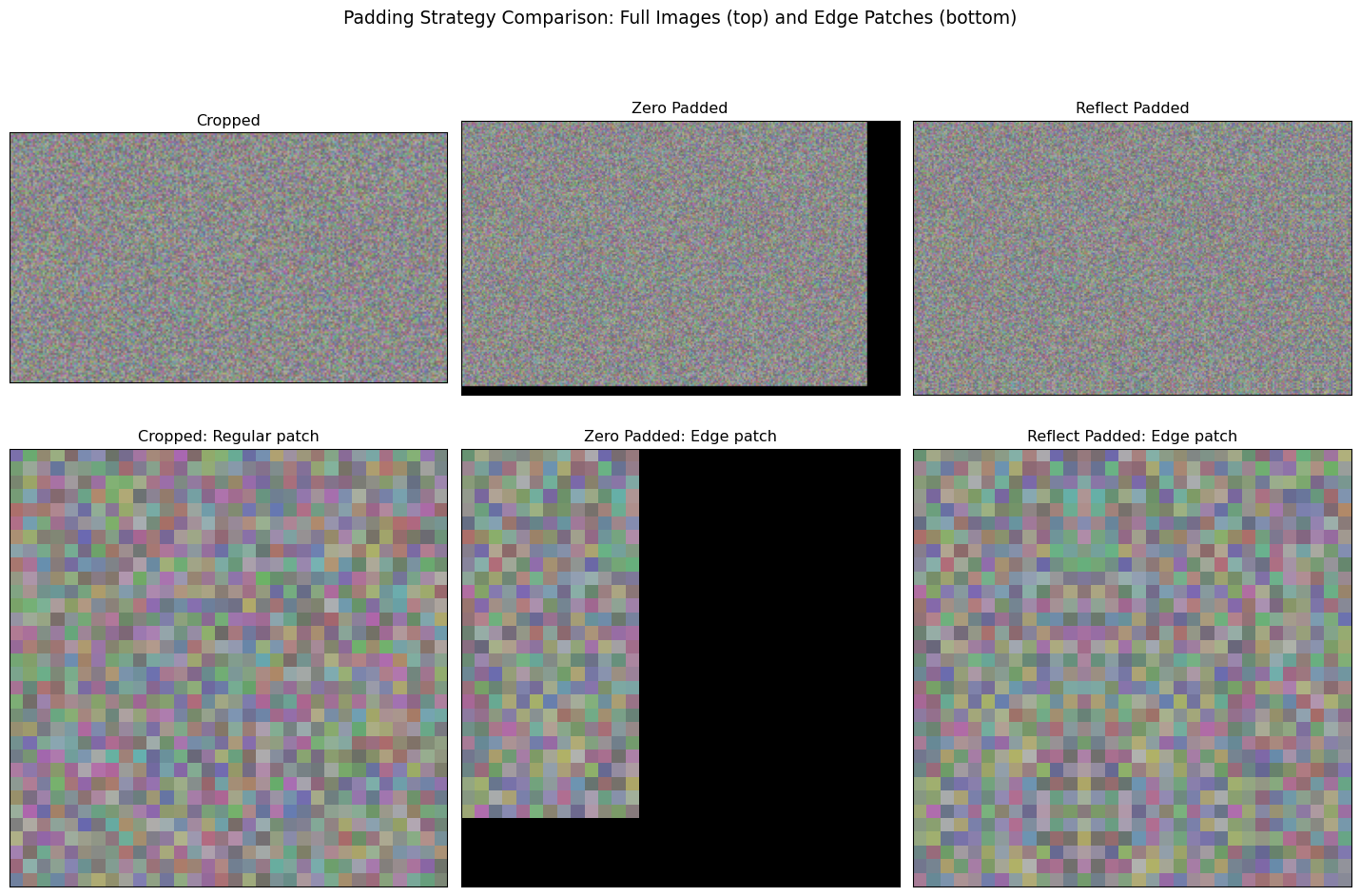

    plt.suptitle('Padding Strategy Comparison: Full Images (top) and Edge Patches (bottom)',
                 fontsize=14)
    plt.tight_layout()
    plt.show()

compare_padding_strategies()

print("\n🎯 Strategy Selection Guidelines:")
print("   • CROP: Use for large-scale analysis where speed > completeness")
print("   • ZERO PAD: Use when complete coverage is mandatory")
print("   • REFLECT PAD: Use for high-quality analysis of natural imagery")
print("   • Consider your downstream task requirements")
print("   • Test different strategies on your specific data")
Padding Strategy Comparison
============================================================
Strategy        Patches  Memory (MB)  Edge Coverage   Artifacts
------------------------------------------------------------
Crop            28       0.9          Incomplete      None
Zero Pad        40       1.2          Complete        Boundary jumps
Reflect Pad     40       1.2          Complete        Minimal


🎯 Strategy Selection Guidelines:
   • CROP: Use for large-scale analysis where speed > completeness
   • ZERO PAD: Use when complete coverage is mandatory
   • REFLECT PAD: Use for high-quality analysis of natural imagery
   • Consider your downstream task requirements
   • Test different strategies on your specific data

Advanced Topics: Multi-Scale and Multi-Temporal Processing

Multi-Scale Patch Extraction

Real-world satellite analysis often requires processing the same area at multiple scales. For example, identifying broad land cover patterns (large patches) while also detecting detailed features (small patches):

def multi_scale_patch_extraction(image, patch_sizes=[16, 32, 64]):
    """
    Demonstrate multi-scale patch extraction for hierarchical analysis.
    This approach is used in some advanced GFMs.
    """

    print("Multi-Scale Analysis:")
    print("="*40)

    fig, axes = plt.subplots(1, len(patch_sizes), figsize=(15, 5))

    for idx, patch_size in enumerate(patch_sizes):
        patches, positions = extract_patches_with_visualization(image, patch_size)

        # Calculate scale-dependent information
        patches_per_area = len(patches) / (image.shape[0] * image.shape[1])
        detail_level = 1000 * patches_per_area  # Patches per 1000 pixels

        print(f"Scale {idx+1}: {patch_size}×{patch_size} patches")
        print(f"  Total patches: {len(patches)}")
        print(f"  Detail level: {detail_level:.2f} patches/1000px²")
        print(f"  Use case: {'Fine details' if patch_size <= 32 else 'Broad patterns'}")

        # Visualize
        ax = axes[idx]
        ax.imshow(image[:, :, [3, 0, 1]])  # False color

        # Show subset of patches to avoid clutter
        show_patches = positions[::max(1, len(positions)//12)]  # Show ~12 patches
        for x, y in show_patches:
            rect = plt.Rectangle((x-0.5, y-0.5), patch_size, patch_size,
                               linewidth=2, edgecolor='white', facecolor='none', alpha=0.8)
            ax.add_patch(rect)

        ax.set_xlim(0, image.shape[1])
        ax.set_ylim(image.shape[0], 0)
        ax.set_xticks([])
        ax.set_yticks([])
        ax.set_title(f'{patch_size}×{patch_size}\n{len(patches)} patches')

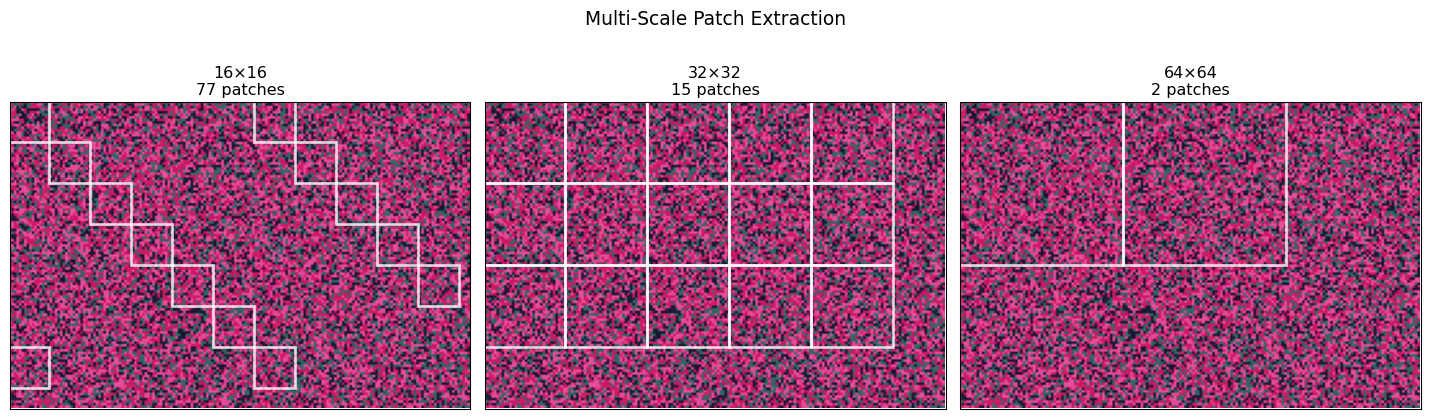

    plt.suptitle('Multi-Scale Patch Extraction', fontsize=14)
    plt.tight_layout()
    plt.show()

multi_scale_patch_extraction(satellite_img)

print("\n💡 Multi-Scale Benefits:")
print("   • Small patches: Capture fine details, textures, edges")
print("   • Large patches: Capture spatial context, broad patterns")
print("   • Combined: Enable hierarchical understanding")
print("   • Used in: Change detection, multi-resolution analysis")
Multi-Scale Analysis:
========================================
Scale 1: 16×16 patches
  Total patches: 77
  Detail level: 3.56 patches/1000px²
  Use case: Fine details
Scale 2: 32×32 patches
  Total patches: 15
  Detail level: 0.69 patches/1000px²
  Use case: Fine details
Scale 3: 64×64 patches
  Total patches: 2
  Detail level: 0.09 patches/1000px²
  Use case: Broad patterns


💡 Multi-Scale Benefits:
   • Small patches: Capture fine details, textures, edges
   • Large patches: Capture spatial context, broad patterns
   • Combined: Enable hierarchical understanding
   • Used in: Change detection, multi-resolution analysis

Multi-Temporal Patch Processing

Many GFMs process time series of satellite imagery. Here’s how patch extraction works across time:

def demonstrate_temporal_patches():
    """
    Show how patches are extracted from multi-temporal imagery.
    Critical for change detection and phenology monitoring.
    """

    # Simulate time series (3 dates)
    np.random.seed(42)
    dates = ['2021-06-01', '2022-06-01', '2023-06-01']

    # Create temporal changes (simulate seasonal/land use changes)
    temporal_images = []
    base_img = satellite_img.copy()

    for i, date in enumerate(dates):
        # Simulate temporal changes
        temp_img = base_img.copy()

        # Simulate seasonal vegetation changes (NIR band changes)
        vegetation_change = np.sin(i * np.pi / 2) * 0.3  # Seasonal variation
        temp_img[:, :, 3] = np.clip(temp_img[:, :, 3] + vegetation_change, 0, 1)

        # Simulate some land cover change in a region
        if i > 0:  # Changes start from second date
            change_region = slice(40, 80), slice(60, 100)
            temp_img[change_region] = [0.2, 0.3, 0.4, 0.1]  # Urban development

        temporal_images.append(temp_img)

    # Extract patches from each time point
    patch_size = 40
    temporal_patch_sets = []

    fig, axes = plt.subplots(2, 3, figsize=(15, 10))

    for i, (img, date) in enumerate(zip(temporal_images, dates)):
        patches, positions = extract_patches_with_visualization(img, patch_size)
        temporal_patch_sets.append(patches)

        # Show full image
        axes[0, i].imshow(img[:, :, [3, 0, 1]])  # False color
        axes[0, i].set_title(f'{date}\n{len(patches)} patches')
        axes[0, i].set_xticks([])
        axes[0, i].set_yticks([])

        # Highlight a specific patch across time
        highlight_patch_idx = 6  # Same spatial location across all dates
        x, y = positions[highlight_patch_idx]
        rect = plt.Rectangle((x-0.5, y-0.5), patch_size, patch_size,
                           linewidth=3, edgecolor='yellow', facecolor='none')
        axes[0, i].add_patch(rect)

        # Show the highlighted patch
        highlighted_patch = patches[highlight_patch_idx]
        axes[1, i].imshow(highlighted_patch[:, :, [3, 0, 1]])
        axes[1, i].set_title(f'Patch {highlight_patch_idx}\n{date}')
        axes[1, i].set_xticks([])
        axes[1, i].set_yticks([])

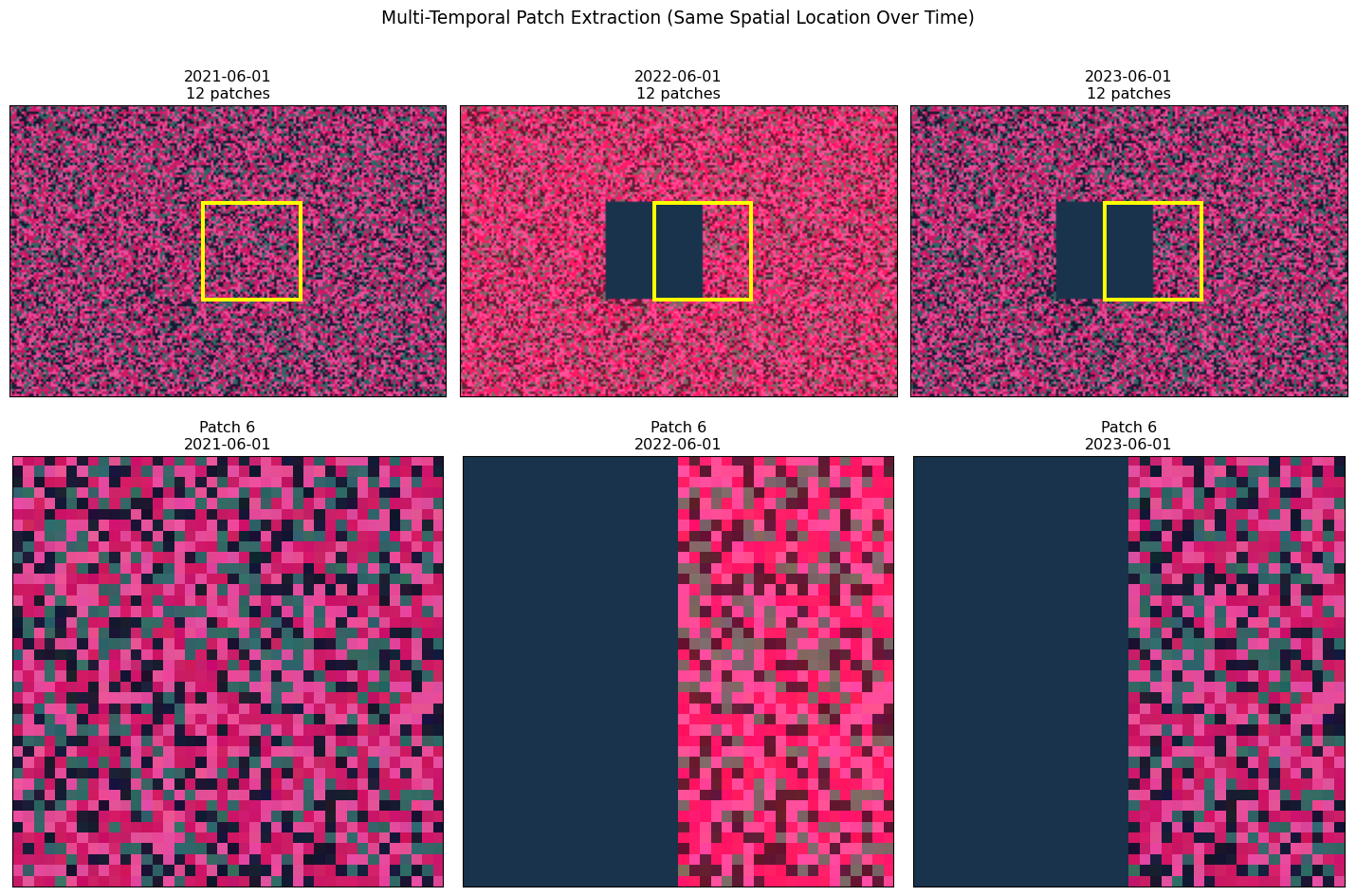

    plt.suptitle('Multi-Temporal Patch Extraction (Same Spatial Location Over Time)', fontsize=14)
    plt.tight_layout()
    plt.show()

    # Analyze temporal patch consistency
    print("Temporal Patch Analysis:")
    print("="*30)
    print(f"Patch size: {patch_size}×{patch_size}")
    print(f"Time points: {len(dates)}")
    print(f"Patches per date: {len(temporal_patch_sets[0])}")

    # Calculate change magnitude for the highlighted patch
    patch_0 = temporal_patch_sets[0][highlight_patch_idx]
    patch_1 = temporal_patch_sets[1][highlight_patch_idx]
    patch_2 = temporal_patch_sets[2][highlight_patch_idx]

    change_1 = np.mean(np.abs(patch_1 - patch_0))
    change_2 = np.mean(np.abs(patch_2 - patch_1))

    print(f"\nChange Analysis (Patch {highlight_patch_idx}):")
    print(f"  {dates[0]} → {dates[1]}: {change_1:.3f} mean absolute change")
    print(f"  {dates[1]} → {dates[2]}: {change_2:.3f} mean absolute change")

    return temporal_patch_sets

temporal_patches = demonstrate_temporal_patches()

print("\n🕐 Temporal Processing Insights:")
print("   • Same spatial patches tracked over time")
print("   • Enables change detection and trend analysis")
print("   • Requires careful image registration (alignment)")
print("   • Used in: Crop monitoring, deforestation detection, urban growth")

Temporal Patch Analysis:
==============================
Patch size: 40×40
Time points: 3
Patches per date: 12

Change Analysis (Patch 6):
  2021-06-01 → 2022-06-01: 0.141 mean absolute change
  2022-06-01 → 2023-06-01: 0.027 mean absolute change

🕐 Temporal Processing Insights:
   • Same spatial patches tracked over time
   • Enables change detection and trend analysis
   • Requires careful image registration (alignment)
   • Used in: Crop monitoring, deforestation detection, urban growth

Connection to Foundation Model Architectures

How Different GFMs Handle Patches

Different geospatial foundation models make different choices about patch processing. Let’s examine some real examples:

def compare_gfm_architectures():
    """
    Compare patch handling across different geospatial foundation models.
    """

    gfm_configs = {
        'Prithvi (IBM)': {
            'patch_size': 16,
            'bands': 6,  # HLS bands
            'embed_dim': 768,
            'use_case': 'Multi-spectral analysis',
            'notes': 'Pre-trained on HLS (Landsat + Sentinel-2)'
        },
        'SatMAE (Microsoft)': {
            'patch_size': 16,
            'bands': 4,  # RGB + NIR
            'embed_dim': 1024,
            'use_case': 'Self-supervised pretraining',
            'notes': 'Masked autoencoder approach'
        },
        'Scale-MAE': {
            'patch_size': 8,
            'bands': 10,  # Sentinel-2 bands
            'embed_dim': 512,
            'use_case': 'Multi-scale analysis',
            'notes': 'Handles multiple resolutions'
        },
        'Our Custom GFM': {
            'patch_size': 32,
            'bands': 4,
            'embed_dim': 256,
            'use_case': 'Tutorial example',
            'notes': 'Designed for this course'
        }
    }

    print("Geospatial Foundation Model Architectures")
    print("="*60)
    print(f"{'Model':<20} {'Patch':<8} {'Bands':<6} {'Embed':<8} {'Use Case'}")
    print("-"*60)

    for model, config in gfm_configs.items():
        patch_str = f"{config['patch_size']}×{config['patch_size']}"
        print(f"{model:<20} {patch_str:<8} {config['bands']:<6} {config['embed_dim']:<8} {config['use_case']}")

    # Calculate tokens per image for each model
    print(f"\nTokens per Landsat Scene (7791×7611 pixels):")
    print("-"*50)

    landsat_h, landsat_w = 7791, 7611

    for model, config in gfm_configs.items():
        patch_size = config['patch_size']
        patches_y = landsat_h // patch_size
        patches_x = landsat_w // patch_size
        total_tokens = patches_y * patches_x

        print(f"{model:<20}: {total_tokens:>8,} tokens")

    # Visualize patch sizes
    fig, axes = plt.subplots(1, 4, figsize=(16, 4))

    models = list(gfm_configs.keys())
    for idx, model in enumerate(models):
        config = gfm_configs[model]
        patch_size = config['patch_size']

        # Create a sample image region
        sample_size = 128
        sample_img = satellite_img[:sample_size, :sample_size, [0, 1, 2]]

        ax = axes[idx]
        ax.imshow(sample_img)

        # Draw patch grid
        for x in range(0, sample_size, patch_size):
            for y in range(0, sample_size, patch_size):
                if x + patch_size <= sample_size and y + patch_size <= sample_size:
                    rect = plt.Rectangle((x-0.5, y-0.5), patch_size, patch_size,
                                       linewidth=2, edgecolor='white', facecolor='none')
                    ax.add_patch(rect)

        ax.set_xlim(0, sample_size)
        ax.set_ylim(sample_size, 0)
        ax.set_xticks([])
        ax.set_yticks([])
        ax.set_title(f'{model}\n{patch_size}×{patch_size} patches')

    plt.suptitle('Patch Sizes in Different GFMs', fontsize=14)
    plt.tight_layout()
    plt.show()

compare_gfm_architectures()
Geospatial Foundation Model Architectures
============================================================
Model                Patch    Bands  Embed    Use Case
------------------------------------------------------------
Prithvi (IBM)        16×16    6      768      Multi-spectral analysis
SatMAE (Microsoft)   16×16    4      1024     Self-supervised pretraining
Scale-MAE            8×8      10     512      Multi-scale analysis
Our Custom GFM       32×32    4      256      Tutorial example

Tokens per Landsat Scene (7791×7611 pixels):
--------------------------------------------------
Prithvi (IBM)       :  230,850 tokens
SatMAE (Microsoft)  :  230,850 tokens
Scale-MAE           :  925,323 tokens
Our Custom GFM      :   57,591 tokens

Masked Autoencoder Training

Many modern GFMs use masked autoencoder (MAE) training. Let’s demonstrate how masking works with patches:

def demonstrate_mae_masking(patches, mask_ratio=0.75):
    """
    Show how masked autoencoder training works with satellite image patches.
    This is the core training strategy for many modern GFMs.
    """

    n_patches = len(patches)
    n_masked = int(n_patches * mask_ratio)

    print("Masked Autoencoder (MAE) Training")
    print("="*40)
    print(f"Total patches: {n_patches}")
    print(f"Mask ratio: {mask_ratio} ({n_masked}/{n_patches} patches masked)")
    print(f"Visible patches: {n_patches - n_masked}")

    # Create random mask
    np.random.seed(42)
    mask_indices = np.random.choice(n_patches, n_masked, replace=False)

    # Reconstruct image grid for visualization
    grid_size = int(np.ceil(np.sqrt(n_patches)))
    # Infer patch size and handle channel ordering robustly when visualizing
    patch = patches[0]
    if patch.ndim == 3 and patch.shape[-1] >= 3:
        patch_size = patch.shape[0]
    elif patch.ndim == 3 and patch.shape[0] >= 3:
        patch_size = patch.shape[1]
    else:
        patch_size = patches.shape[1]

    # Create full image from patches
    full_img = np.zeros((grid_size * patch_size, grid_size * patch_size, 3))
    masked_img = full_img.copy()

    for i in range(n_patches):
        row = i // grid_size
        col = i % grid_size

        start_y = row * patch_size
        end_y = start_y + patch_size
        start_x = col * patch_size
        end_x = start_x + patch_size

        # Extract an RGB visualization with channels-last ordering
        patch_i = patches[i]
        if patch_i.ndim == 3 and patch_i.shape[-1] >= 3:
            patch_rgb = patch_i[..., :3]
        elif patch_i.ndim == 3 and patch_i.shape[0] >= 3:
            patch_rgb = np.transpose(patch_i[:3, ...], (1, 2, 0))
        else:
            # Fallback for single-channel patches: replicate to 3 channels
            if patch_i.ndim == 3 and patch_i.shape[-1] == 1:
                patch_rgb = np.repeat(patch_i, 3, axis=-1)
            elif patch_i.ndim == 3 and patch_i.shape[0] == 1:
                patch_rgb = np.repeat(np.transpose(patch_i, (1, 2, 0)), 3, axis=-1)
            else:
                # Last resort: ensure shape (H, W, 3)
                h = patch_i.shape[0]
                w = patch_i.shape[1]
                patch_rgb = np.zeros((h, w, 3))

        full_img[start_y:end_y, start_x:end_x] = patch_rgb

        # Mask selected patches
        if i not in mask_indices:
            masked_img[start_y:end_y, start_x:end_x] = patch_rgb

    # Visualize MAE process

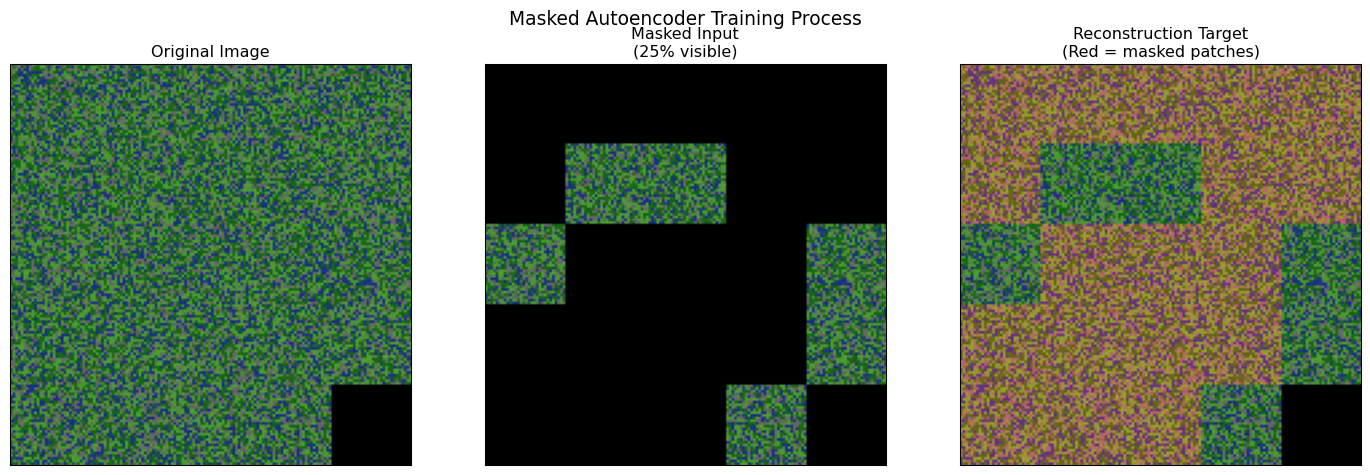

    fig, (ax1, ax2, ax3) = plt.subplots(1, 3, figsize=(15, 5))

    # Original image
    ax1.imshow(full_img)
    ax1.set_title('Original Image')
    ax1.set_xticks([])
    ax1.set_yticks([])

    # Masked image (input to encoder)
    ax2.imshow(masked_img)
    ax2.set_title(f'Masked Input\n({100*(1-mask_ratio):.0f}% visible)')
    ax2.set_xticks([])
    ax2.set_yticks([])

    # Highlight masked regions
    reconstruction_img = full_img.copy()
    for i in range(n_patches):
        if i in mask_indices:
            row = i // grid_size
            col = i % grid_size
            start_y = row * patch_size
            end_y = start_y + patch_size
            start_x = col * patch_size
            end_x = start_x + patch_size

            # Add red tint to show what needs reconstruction
            reconstruction_img[start_y:end_y, start_x:end_x, 0] = np.minimum(
                reconstruction_img[start_y:end_y, start_x:end_x, 0] + 0.3, 1.0)

    ax3.imshow(reconstruction_img)
    ax3.set_title('Reconstruction Target\n(Red = masked patches)')
    ax3.set_xticks([])
    ax3.set_yticks([])

    plt.suptitle('Masked Autoencoder Training Process', fontsize=14)
    plt.tight_layout()
    plt.show()

    print(f"\n🎯 MAE Training Process:")
    print(f"   1. Randomly mask {mask_ratio:.0%} of patches")
    print(f"   2. Encoder processes only visible patches")
    print(f"   3. Decoder reconstructs all patches")
    print(f"   4. Loss computed only on masked patches")
    print(f"   5. Model learns spatial relationships and context")

    return mask_indices

mask_indices = demonstrate_mae_masking(patches)

print("\n🔍 Why MAE Works for Satellite Imagery:")
print("   • Forces model to understand spatial context")
print("   • Learns spectral relationships between bands")
print("   • Captures seasonal and phenological patterns")
print("   • Creates transferable representations")
print("   • Reduces need for labeled training data")
Masked Autoencoder (MAE) Training
========================================
Total patches: 24
Mask ratio: 0.75 (18/24 patches masked)
Visible patches: 6


🎯 MAE Training Process:
   1. Randomly mask 75% of patches
   2. Encoder processes only visible patches
   3. Decoder reconstructs all patches
   4. Loss computed only on masked patches
   5. Model learns spatial relationships and context

🔍 Why MAE Works for Satellite Imagery:
   • Forces model to understand spatial context
   • Learns spectral relationships between bands
   • Captures seasonal and phenological patterns
   • Creates transferable representations
   • Reduces need for labeled training data

Performance Optimization and Practical Considerations

Memory-Efficient Batch Processing

When working with large satellite images, you need efficient strategies for processing patches in batches:

def demonstrate_efficient_processing():
    """
    Show memory-efficient strategies for processing large numbers of patches.
    """

    # Simulate a large satellite image
    large_img_shape = (2000, 3000, 6)  # Realistic size
    patch_size = 64

    # Calculate patch requirements
    patches_y = large_img_shape[0] // patch_size
    patches_x = large_img_shape[1] // patch_size
    total_patches = patches_y * patches_x

    # Memory calculations
    patch_memory_bytes = patch_size * patch_size * large_img_shape[2] * 4  # float32
    total_patch_memory_gb = (total_patches * patch_memory_bytes) / (1024**3)

    print("Large-Scale Processing Analysis")
    print("="*40)
    print(f"Image size: {large_img_shape[0]}×{large_img_shape[1]}×{large_img_shape[2]}")
    print(f"Patch size: {patch_size}×{patch_size}")
    print(f"Total patches: {total_patches:,}")
    print(f"Memory per patch: {patch_memory_bytes/1024:.1f} KB")
    print(f"Total patch memory: {total_patch_memory_gb:.2f} GB")

    # Batch processing scenarios
    gpu_memory_gb = 16  # Typical GPU
    model_memory_gb = 4  # Reserve for model weights
    available_memory_gb = gpu_memory_gb - model_memory_gb

    max_patches_per_batch = int((available_memory_gb * 1024**3) / patch_memory_bytes)
    n_batches = (total_patches + max_patches_per_batch - 1) // max_patches_per_batch

    print(f"\nBatch Processing Strategy:")
    print(f"  GPU memory: {gpu_memory_gb} GB")
    print(f"  Model memory: {model_memory_gb} GB")
    print(f"  Available: {available_memory_gb} GB")
    print(f"  Max patches/batch: {max_patches_per_batch:,}")
    print(f"  Batches needed: {n_batches}")

    # Show different batch size trade-offs
    batch_sizes = [64, 128, 256, 512, 1024]

    print(f"\nBatch Size Trade-offs:")
    print(f"{'Batch Size':<12} {'Batches':<8} {'Memory (GB)':<12} {'Efficiency'}")
    print("-"*50)

    for batch_size in batch_sizes:
        if batch_size <= max_patches_per_batch:
            n_batches = (total_patches + batch_size - 1) // batch_size
            memory_gb = (batch_size * patch_memory_bytes) / (1024**3)
            efficiency = "Optimal" if batch_size == max_patches_per_batch else "Good"
        else:
            n_batches = "OOM"  # Out of memory
            memory_gb = (batch_size * patch_memory_bytes) / (1024**3)
            efficiency = "Too large"

        print(f"{batch_size:<12} {n_batches:<8} {memory_gb:<12.2f} {efficiency}")

    return max_patches_per_batch

optimal_batch_size = demonstrate_efficient_processing()
Large-Scale Processing Analysis
========================================
Image size: 2000×3000×6
Patch size: 64×64
Total patches: 1,426
Memory per patch: 96.0 KB
Total patch memory: 0.13 GB

Batch Processing Strategy:
  GPU memory: 16 GB
  Model memory: 4 GB
  Available: 12 GB
  Max patches/batch: 131,072
  Batches needed: 1

Batch Size Trade-offs:
Batch Size   Batches  Memory (GB)  Efficiency
--------------------------------------------------
64           23       0.01         Good
128          12       0.01         Good
256          6        0.02         Good
512          3        0.05         Good
1024         2        0.09         Good

Real-World Pipeline Implementation

Let’s put it all together with a realistic implementation that you might use in practice:

def create_production_pipeline():
    """
    Demonstrate a production-ready patch extraction pipeline
    with all the considerations we've discussed.
    """

    class SatelliteImageProcessor:
        def __init__(self, patch_size=32, stride=None, padding='reflect',
                     batch_size=256, overlap_threshold=0.5):
            self.patch_size = patch_size
            self.stride = stride if stride else patch_size
            self.padding = padding
            self.batch_size = batch_size
            self.overlap_threshold = overlap_threshold

        def extract_patches(self, image):
            """Extract patches with specified strategy."""

            H, W, C = image.shape

            # Apply padding if needed
            if self.padding == 'reflect':
                pad_h = self.patch_size - (H % self.patch_size) if H % self.patch_size != 0 else 0
                pad_w = self.patch_size - (W % self.patch_size) if W % self.patch_size != 0 else 0
                if pad_h > 0 or pad_w > 0:
                    image = np.pad(image, ((0, pad_h), (0, pad_w), (0, 0)), mode='reflect')
            elif self.padding == 'crop':
                crop_h = (H // self.patch_size) * self.patch_size
                crop_w = (W // self.patch_size) * self.patch_size
                image = image[:crop_h, :crop_w, :]

            # Extract patches
            patches = []
            positions = []

            H_new, W_new = image.shape[:2]

            for y in range(0, H_new - self.patch_size + 1, self.stride):
                for x in range(0, W_new - self.patch_size + 1, self.stride):
                    patch = image[y:y+self.patch_size, x:x+self.patch_size, :]
                    patches.append(patch)
                    positions.append((x, y))

            return np.array(patches), positions, image.shape

        def process_in_batches(self, patches, processing_func):
            """Process patches in memory-efficient batches."""

            results = []
            n_patches = len(patches)

            for i in range(0, n_patches, self.batch_size):
                batch_end = min(i + self.batch_size, n_patches)
                batch = patches[i:batch_end]

                # Simulate processing (could be model inference)
                batch_results = processing_func(batch)
                results.extend(batch_results)

                print(f"Processed batch {i//self.batch_size + 1}/{(n_patches + self.batch_size - 1)//self.batch_size}")

            return results

    # Demonstrate the pipeline
    processor = SatelliteImageProcessor(
        patch_size=32,
        stride=24,  # 25% overlap
        padding='reflect',
        batch_size=64
    )

    print("Production Pipeline Demonstration")
    print("="*40)

    # Extract patches
    patches, positions, processed_shape = processor.extract_patches(satellite_img)

    print(f"Input image: {satellite_img.shape}")
    print(f"Processed image: {processed_shape}")
    print(f"Patches extracted: {len(patches)}")
    print(f"Patch overlap: {100*(processor.patch_size - processor.stride)/processor.patch_size:.0f}%")

    # Simulate processing function (could be model inference)
    def mock_processing(batch):
        """Simulate model inference or feature extraction."""
        # Return mean spectral values per patch as example
        return [np.mean(patch, axis=(0, 1)) for patch in batch]

    # Process in batches
    print(f"\nProcessing {len(patches)} patches in batches of {processor.batch_size}...")
    results = processor.process_in_batches(patches, mock_processing)

    print(f"Processing complete!")
    print(f"Results shape: {np.array(results).shape}")

    # Visualize results (spectral signatures)
    results_array = np.array(results)

    fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(12, 5))

    # Show patch locations colored by first spectral band average
    x_coords = [pos[0] + processor.patch_size//2 for pos in positions]
    y_coords = [pos[1] + processor.patch_size//2 for pos in positions]

    scatter = ax1.scatter(x_coords, y_coords, c=results_array[:, 0],
                         cmap='viridis', s=50, alpha=0.7)
    ax1.set_xlim(0, satellite_img.shape[1])
    ax1.set_ylim(satellite_img.shape[0], 0)
    ax1.set_title('Patch Results (Red Band Average)')
    ax1.set_xlabel('X Coordinate')
    ax1.set_ylabel('Y Coordinate')
    plt.colorbar(scatter, ax=ax1)

    # Show spectral signatures distribution
    band_names = ['Red', 'Green', 'Blue', 'NIR']
    for i, band in enumerate(band_names):
        ax2.hist(results_array[:, i], bins=20, alpha=0.6, label=band)

    ax2.set_xlabel('Average Band Value')
    ax2.set_ylabel('Frequency')
    ax2.set_title('Distribution of Spectral Values Across Patches')
    ax2.legend()
    ax2.grid(True, alpha=0.3)

    plt.tight_layout()
    plt.show()

    return processor, results

pipeline, processing_results = create_production_pipeline()

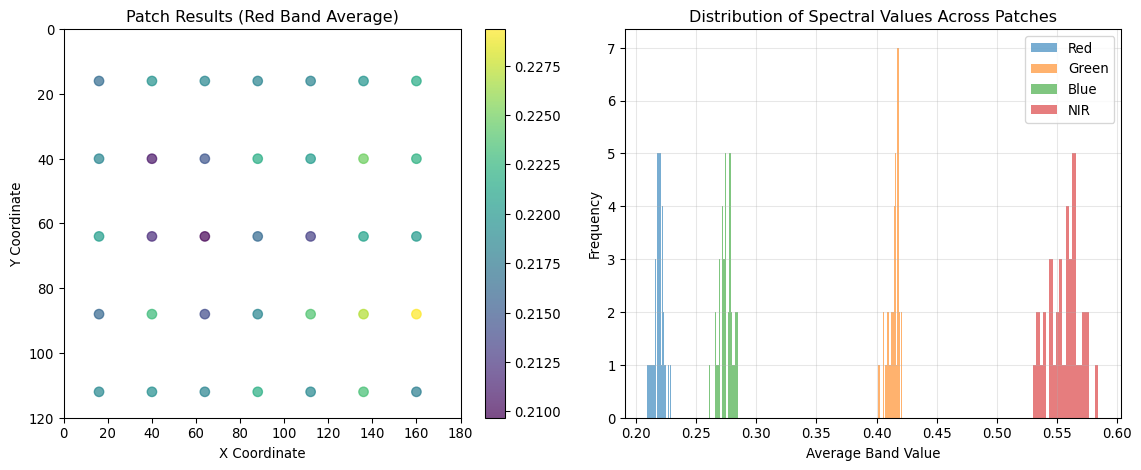

Production Pipeline Demonstration
========================================
Input image: (120, 180, 4)
Processed image: (128, 192, 4)
Patches extracted: 35
Patch overlap: 25%

Processing 35 patches in batches of 64...
Processed batch 1/1
Processing complete!
Results shape: (35, 4)

Key Takeaways and Best Practices

After working through these examples, here are the essential principles for effective patch extraction in geospatial foundation models:

1. Understand Your Memory Constraints

  • Calculate patch memory requirements before processing
  • Use batch processing for large images
  • Consider GPU memory limitations in your pipeline design

2. Choose Patch Size Strategically

  • Small patches (8-16px): Capture fine details, more patches, higher memory
  • Medium patches (32-64px): Balance detail and context, most common choice
  • Large patches (128px+): Capture broad context, fewer patches, less memory

3. Select Padding Strategy Based on Your Use Case

  • Crop: Speed-critical applications, overlapping patches
  • Zero padding: Complete coverage required, simple implementation
  • Reflect padding: Image quality critical, natural imagery

4. Consider Overlap for Better Performance

  • No overlap: Fastest processing, good for classification
  • 25-50% overlap: Better boundary handling, moderate cost increase
  • 75%+ overlap: Maximum context, highest computational cost

5. Plan for Multi-Scale and Multi-Temporal Processing

  • Design pipelines that can handle different patch sizes
  • Ensure spatial alignment across time series
  • Consider temporal consistency in patch extraction

6. Optimize for Your Specific GFM Architecture

  • Match patch sizes to your model’s training configuration
  • Consider spectral band requirements
  • Plan for masked autoencoder training if applicable

Summary

Patch extraction is far more than a simple preprocessing step—it’s a critical design choice that affects every aspect of your geospatial AI pipeline. The strategies we’ve explored provide a foundation for making informed decisions about:

  • Memory management and computational efficiency
  • Information preservation vs. processing speed trade-offs
  • Spatial context and boundary handling
  • Multi-scale and temporal processing requirements
  • Model architecture compatibility

As you develop your own geospatial foundation models, remember that the “best” patch extraction strategy depends entirely on your specific use case, data characteristics, and computational constraints. Use these examples as starting points, but always validate your choices with your own data and requirements.

The techniques demonstrated here form the foundation for the more advanced topics we’ll explore in subsequent chapters, including attention mechanisms, self-supervised learning, and model deployment at scale.
