Geospatial data forms the foundation of Earth observation and environmental monitoring. This cheatsheet covers key concepts for working with satellite imagery, coordinate systems, and remote sensing data.
import numpy as np
import matplotlib.pyplot as plt
import rasterio
from rasterio.transform import from_bounds
from rasterio.warp import reproject, Resampling
import cartopy.crs as ccrs
import cartopy.feature as cfeature
import pandas as pd
from datetime import datetime, timedelta
print(f"Rasterio version: {rasterio.__version__}")Rasterio version: 1.4.3def create_spectral_bands_reference():
"""Reference for common satellite spectral bands"""
# Common Landsat 8/9 bands
landsat_bands = {
'Band 1': {'name': 'Coastal/Aerosol', 'wavelength': '0.43-0.45 μm', 'use': 'Atmospheric correction'},
'Band 2': {'name': 'Blue', 'wavelength': '0.45-0.51 μm', 'use': 'Water mapping, soil/vegetation'},
'Band 3': {'name': 'Green', 'wavelength': '0.53-0.59 μm', 'use': 'Vegetation health, urban'},
'Band 4': {'name': 'Red', 'wavelength': '0.64-0.67 μm', 'use': 'Vegetation discrimination'},
'Band 5': {'name': 'NIR', 'wavelength': '0.85-0.88 μm', 'use': 'Vegetation analysis, water'},
'Band 6': {'name': 'SWIR1', 'wavelength': '1.57-1.65 μm', 'use': 'Moisture, burn mapping'},
'Band 7': {'name': 'SWIR2', 'wavelength': '2.11-2.29 μm', 'use': 'Geology, hydrothermal'},
}
# Sentinel-2 bands (subset)
sentinel2_bands = {
'Band 2': {'name': 'Blue', 'wavelength': '0.49 μm', 'resolution': '10m'},
'Band 3': {'name': 'Green', 'wavelength': '0.56 μm', 'resolution': '10m'},
'Band 4': {'name': 'Red', 'wavelength': '0.665 μm', 'resolution': '10m'},
'Band 8': {'name': 'NIR', 'wavelength': '0.842 μm', 'resolution': '10m'},
'Band 11': {'name': 'SWIR1', 'wavelength': '1.610 μm', 'resolution': '20m'},
'Band 12': {'name': 'SWIR2', 'wavelength': '2.190 μm', 'resolution': '20m'},
}
print("Landsat 8/9 Bands:")
for band, info in landsat_bands.items():
print(f"{band}: {info['name']} ({info['wavelength']}) - {info['use']}")
print("\nSentinel-2 Key Bands:")
for band, info in sentinel2_bands.items():
print(f"{band}: {info['name']} ({info['wavelength']}, {info['resolution']})")
return landsat_bands, sentinel2_bands

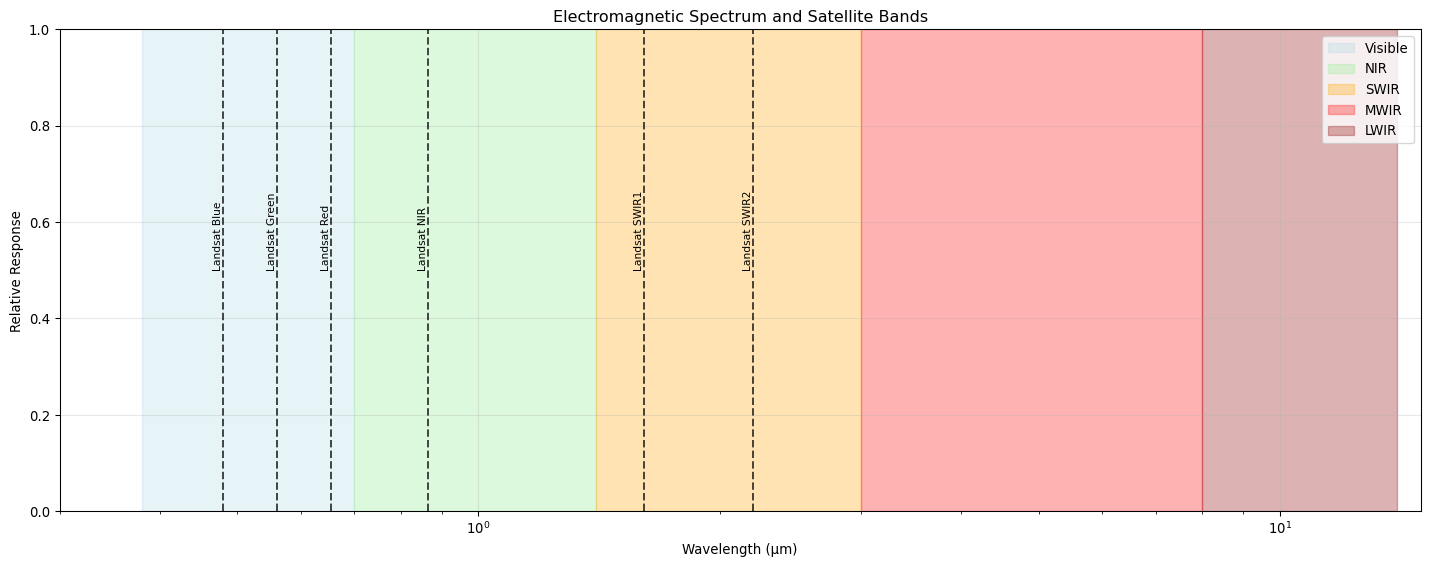

# Visualize electromagnetic spectrum
def plot_electromagnetic_spectrum():
"""Visualize the electromagnetic spectrum with satellite bands"""
# Wavelength ranges (in micrometers)
wavelengths = np.logspace(-2, 2, 1000) # 0.01 to 100 μm
# Define spectral regions
regions = {
'Visible': (0.38, 0.7, 'lightblue'),
'NIR': (0.7, 1.4, 'lightgreen'),
'SWIR': (1.4, 3.0, 'orange'),
'MWIR': (3.0, 8.0, 'red'),
'LWIR': (8.0, 14.0, 'darkred')
}
# Common satellite bands
sat_bands = {
'Landsat Blue': 0.48,
'Landsat Green': 0.56,
'Landsat Red': 0.655,
'Landsat NIR': 0.865,
'Landsat SWIR1': 1.61,
'Landsat SWIR2': 2.2
}
fig, ax = plt.subplots(figsize=(15, 6))
# Plot spectral regions
for region, (start, end, color) in regions.items():
ax.axvspan(start, end, alpha=0.3, color=color, label=region)
# Mark satellite bands
for band_name, wavelength in sat_bands.items():
ax.axvline(wavelength, color='black', linestyle='--', alpha=0.7)
ax.text(wavelength, 0.5, band_name, rotation=90, ha='right', va='bottom', fontsize=8)
ax.set_xlim(0.3, 15)
ax.set_xscale('log')
ax.set_xlabel('Wavelength (μm)')
ax.set_ylabel('Relative Response')
ax.set_title('Electromagnetic Spectrum and Satellite Bands')
ax.legend(loc='upper right')
ax.grid(True, alpha=0.3)
plt.tight_layout()
plt.show()
landsat_bands, sentinel2_bands = create_spectral_bands_reference()
plot_electromagnetic_spectrum()Landsat 8/9 Bands:
Band 1: Coastal/Aerosol (0.43-0.45 μm) - Atmospheric correction
Band 2: Blue (0.45-0.51 μm) - Water mapping, soil/vegetation
Band 3: Green (0.53-0.59 μm) - Vegetation health, urban
Band 4: Red (0.64-0.67 μm) - Vegetation discrimination
Band 5: NIR (0.85-0.88 μm) - Vegetation analysis, water
Band 6: SWIR1 (1.57-1.65 μm) - Moisture, burn mapping
Band 7: SWIR2 (2.11-2.29 μm) - Geology, hydrothermal
Sentinel-2 Key Bands:
Band 2: Blue (0.49 μm, 10m)
Band 3: Green (0.56 μm, 10m)
Band 4: Red (0.665 μm, 10m)
Band 8: NIR (0.842 μm, 10m)
Band 11: SWIR1 (1.610 μm, 20m)
Band 12: SWIR2 (2.190 μm, 20m)
def satellite_orbit_comparison():
"""Compare different satellite orbits and characteristics"""
satellites = {
'Landsat 8/9': {
'orbit': 'Sun-synchronous polar',
'altitude': '705 km',
'revisit': '16 days',
'resolution': '15-30m',
'swath': '185 km',
'launch': '2013/2021'
},
'Sentinel-2A/B': {
'orbit': 'Sun-synchronous polar',
'altitude': '786 km',
'revisit': '5 days (combined)',
'resolution': '10-60m',
'swath': '290 km',
'launch': '2015/2017'
},
'MODIS': {
'orbit': 'Sun-synchronous polar',
'altitude': '705 km',
'revisit': '1-2 days',
'resolution': '250m-1km',
'swath': '2330 km',
'launch': '1999/2002'
},
'Planet': {
'orbit': 'Sun-synchronous',
'altitude': '475 km',
'revisit': 'Daily',
'resolution': '3-5m',
'swath': '24 km',
'launch': '2016+'
}
}
print("Satellite Comparison:")
print("="*80)
for sat, specs in satellites.items():
print(f"\n{sat}:")
for spec, value in specs.items():
print(f" {spec.capitalize()}: {value}")

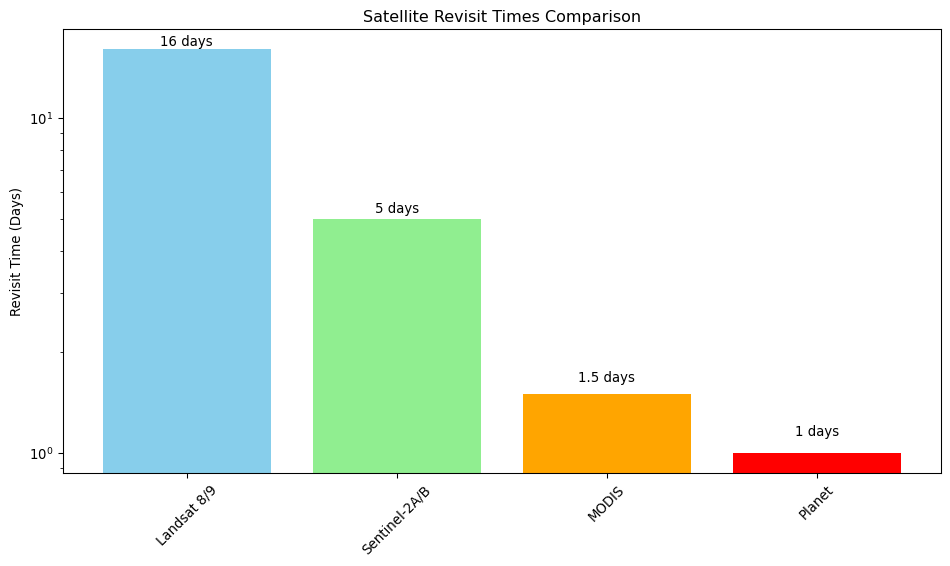

# Visualize revisit times
sat_names = list(satellites.keys())
revisit_days = [16, 5, 1.5, 1] # Approximate revisit times in days
fig, ax = plt.subplots(figsize=(10, 6))
bars = ax.bar(sat_names, revisit_days, color=['skyblue', 'lightgreen', 'orange', 'red'])
# Add value labels on bars
for bar, days in zip(bars, revisit_days):
height = bar.get_height()
ax.text(bar.get_x() + bar.get_width()/2., height + 0.1,
f'{days} days', ha='center', va='bottom')
ax.set_ylabel('Revisit Time (Days)')
ax.set_title('Satellite Revisit Times Comparison')
ax.set_yscale('log')
plt.xticks(rotation=45)
plt.tight_layout()
plt.show()
satellite_orbit_comparison()Satellite Comparison:
================================================================================
Landsat 8/9:
Orbit: Sun-synchronous polar
Altitude: 705 km
Revisit: 16 days
Resolution: 15-30m
Swath: 185 km
Launch: 2013/2021
Sentinel-2A/B:
Orbit: Sun-synchronous polar
Altitude: 786 km
Revisit: 5 days (combined)
Resolution: 10-60m
Swath: 290 km
Launch: 2015/2017
MODIS:
Orbit: Sun-synchronous polar
Altitude: 705 km
Revisit: 1-2 days
Resolution: 250m-1km
Swath: 2330 km
Launch: 1999/2002
Planet:
Orbit: Sun-synchronous
Altitude: 475 km
Revisit: Daily
Resolution: 3-5m
Swath: 24 km
Launch: 2016+
def demonstrate_coordinate_systems():
"""Demonstrate different coordinate reference systems"""
# Common coordinate systems
crs_examples = {
'Geographic (WGS84)': {
'epsg': 4326,
'type': 'Geographic',
'units': 'degrees',
'use_case': 'Global data, GPS coordinates'
},
'Web Mercator': {
'epsg': 3857,
'type': 'Projected',
'units': 'meters',
'use_case': 'Web mapping, Google Maps'
},
'UTM Zone 10N': {
'epsg': 32610,
'type': 'Projected',
'units': 'meters',
'use_case': 'Western US, accurate distance/area'
},
'Albers Equal Area': {
'epsg': 5070,
'type': 'Projected',
'units': 'meters',
'use_case': 'CONUS analysis, area preservation'
}
}
print("Common Coordinate Reference Systems:")
print("="*60)
for crs_name, info in crs_examples.items():
print(f"\n{crs_name} (EPSG:{info['epsg']}):")
print(f" Type: {info['type']}")
print(f" Units: {info['units']}")
print(f" Use case: {info['use_case']}")
# Demonstrate coordinate transformation
def transform_coordinates():
"""Show coordinate transformation example"""
# Sample point in San Francisco
lon, lat = -122.4194, 37.7749 # WGS84 geographic coordinates
print(f"\nCoordinate Transformation Example:")
print(f"Original (WGS84): Longitude = {lon}°, Latitude = {lat}°")
# Mock transformation to UTM (simplified calculation)
# In practice, use proper projection libraries like pyproj
utm_x = (lon + 180) * 111320 * np.cos(np.radians(lat))
utm_y = lat * 110540
print(f"Approximate UTM: X = {utm_x:.0f}m, Y = {utm_y:.0f}m")
print("Note: Use pyproj or rasterio for accurate transformations")
transform_coordinates()
demonstrate_coordinate_systems()Common Coordinate Reference Systems:
============================================================
Geographic (WGS84) (EPSG:4326):
Type: Geographic
Units: degrees
Use case: Global data, GPS coordinates
Web Mercator (EPSG:3857):
Type: Projected
Units: meters
Use case: Web mapping, Google Maps
UTM Zone 10N (EPSG:32610):
Type: Projected
Units: meters
Use case: Western US, accurate distance/area
Albers Equal Area (EPSG:5070):
Type: Projected
Units: meters
Use case: CONUS analysis, area preservation
Coordinate Transformation Example:
Original (WGS84): Longitude = -122.4194°, Latitude = 37.7749°
Approximate UTM: X = 5066513m, Y = 4175637m
Note: Use pyproj or rasterio for accurate transformationsdef create_sample_geospatial_metadata():
"""Create and demonstrate geospatial metadata handling"""
# Create sample raster with proper geospatial metadata
def create_sample_raster():
"""Create a sample GeoTIFF with metadata"""
# Sample data: synthetic NDVI-like values
height, width = 100, 100
data = np.random.beta(2, 2, (height, width)) * 2 - 1 # Values between -1 and 1
# Define geospatial transform (San Francisco Bay Area)
west, south, east, north = -122.5, 37.7, -122.3, 37.9
transform = from_bounds(west, south, east, north, width, height)
# Define coordinate reference system
crs = 'EPSG:4326'
# Metadata
metadata = {
'description': 'Synthetic NDVI data for demonstration',
'creation_date': datetime.now().isoformat(),
'sensor': 'Simulated',
'processing_level': 'L2A',
'spatial_resolution': '30m',
'temporal_coverage': '2023-06-15'
}
return data, transform, crs, metadata
# Create sample data
ndvi_data, geotransform, crs, metadata = create_sample_raster()
print("Geospatial Metadata Example:")
print("="*40)
print(f"Data shape: {ndvi_data.shape}")
print(f"Data type: {ndvi_data.dtype}")
print(f"Value range: [{ndvi_data.min():.3f}, {ndvi_data.max():.3f}]")
print(f"CRS: {crs}")
print(f"Geotransform: {geotransform}")
print("\nMetadata:")
for key, value in metadata.items():
print(f" {key}: {value}")

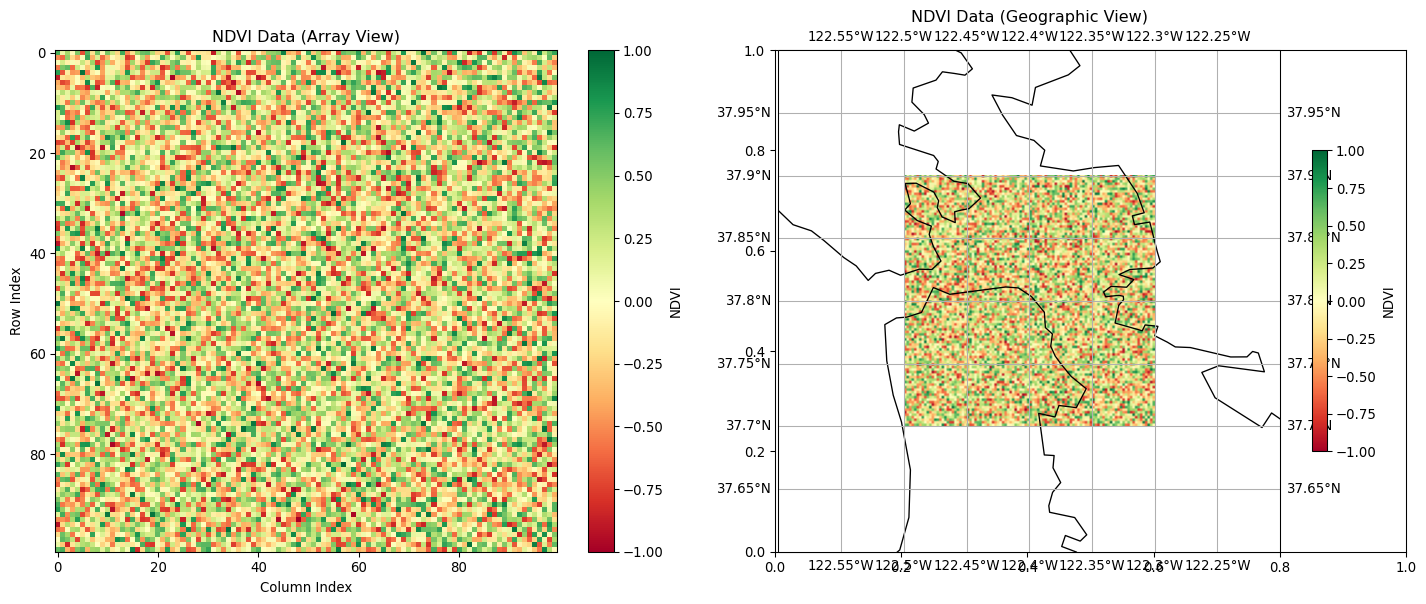

# Visualize with geographic context
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(15, 6))
# Raw data plot
im1 = ax1.imshow(ndvi_data, cmap='RdYlGn', vmin=-1, vmax=1)
ax1.set_title('NDVI Data (Array View)')
ax1.set_xlabel('Column Index')
ax1.set_ylabel('Row Index')
plt.colorbar(im1, ax=ax1, label='NDVI')
# Geographic context plot
ax2 = plt.subplot(1, 2, 2, projection=ccrs.PlateCarree())
# Calculate bounds from geotransform
bounds = rasterio.transform.array_bounds(ndvi_data.shape[0], ndvi_data.shape[1], geotransform)
west, south, east, north = bounds
im2 = ax2.imshow(ndvi_data, extent=[west, east, south, north],
transform=ccrs.PlateCarree(), cmap='RdYlGn', vmin=-1, vmax=1)
# Add geographic features
ax2.add_feature(cfeature.COASTLINE)
ax2.add_feature(cfeature.BORDERS)
ax2.set_extent([west-0.1, east+0.1, south-0.1, north+0.1])
# Add gridlines
ax2.gridlines(draw_labels=True)
ax2.set_title('NDVI Data (Geographic View)')
plt.colorbar(im2, ax=ax2, label='NDVI', shrink=0.6)
plt.tight_layout()
plt.show()
return ndvi_data, geotransform, crs, metadata
sample_data, transform, crs, metadata = create_sample_geospatial_metadata()Geospatial Metadata Example:
========================================
Data shape: (100, 100)
Data type: float64
Value range: [-0.997, 0.981]
CRS: EPSG:4326
Geotransform: | 0.00, 0.00,-122.50|
| 0.00,-0.00, 37.90|
| 0.00, 0.00, 1.00|
Metadata:
description: Synthetic NDVI data for demonstration
creation_date: 2025-08-12T19:01:12.068475
sensor: Simulated
processing_level: L2A
spatial_resolution: 30m
temporal_coverage: 2023-06-15/Users/kellycaylor/mambaforge/envs/geoAI/lib/python3.11/site-packages/shapely/creation.py:730: RuntimeWarning:
invalid value encountered in create_collection
/Users/kellycaylor/mambaforge/envs/geoAI/lib/python3.11/site-packages/shapely/creation.py:730: RuntimeWarning:
invalid value encountered in create_collection
def calculate_spectral_indices():
"""Calculate and demonstrate common spectral indices"""
# Simulate multi-spectral satellite data
np.random.seed(42)
height, width = 200, 200
# Simulate realistic spectral values (scaled 0-1)
bands = {
'blue': np.random.beta(2, 5, (height, width)) * 0.3,
'green': np.random.beta(3, 4, (height, width)) * 0.4,
'red': np.random.beta(2, 3, (height, width)) * 0.5,
'nir': np.random.beta(1.5, 2, (height, width)) * 0.8,
'swir1': np.random.beta(2, 4, (height, width)) * 0.4,
'swir2': np.random.beta(1.5, 4, (height, width)) * 0.3
}
# Add spatial structure to simulate land features
y, x = np.ogrid[:height, :width]
# Water bodies (higher blue, lower NIR)
water_mask = (x - width//3)**2 + (y - height//2)**2 < (width//8)**2
bands['blue'][water_mask] *= 2.0
bands['nir'][water_mask] *= 0.3
# Vegetation areas (higher NIR, lower red)
veg_mask = (x > 2*width//3) & (y < height//2)
bands['nir'][veg_mask] *= 1.5
bands['red'][veg_mask] *= 0.6
# Urban areas (higher SWIR, moderate all bands)
urban_mask = (x < width//3) & (y > height//2)
bands['swir1'][urban_mask] *= 1.3
bands['swir2'][urban_mask] *= 1.2
# Calculate indices
indices = {}
# NDVI (Normalized Difference Vegetation Index)
indices['NDVI'] = (bands['nir'] - bands['red']) / (bands['nir'] + bands['red'] + 1e-8)
# NDWI (Normalized Difference Water Index)
indices['NDWI'] = (bands['green'] - bands['nir']) / (bands['green'] + bands['nir'] + 1e-8)
# NDBI (Normalized Difference Built-up Index)
indices['NDBI'] = (bands['swir1'] - bands['nir']) / (bands['swir1'] + bands['nir'] + 1e-8)
# EVI (Enhanced Vegetation Index)
indices['EVI'] = 2.5 * ((bands['nir'] - bands['red']) /
(bands['nir'] + 6*bands['red'] - 7.5*bands['blue'] + 1))
# SAVI (Soil Adjusted Vegetation Index)
L = 0.5 # Soil brightness correction factor
indices['SAVI'] = ((bands['nir'] - bands['red']) / (bands['nir'] + bands['red'] + L)) * (1 + L)
# NBR (Normalized Burn Ratio)
indices['NBR'] = (bands['nir'] - bands['swir2']) / (bands['nir'] + bands['swir2'] + 1e-8)
# Visualize indices

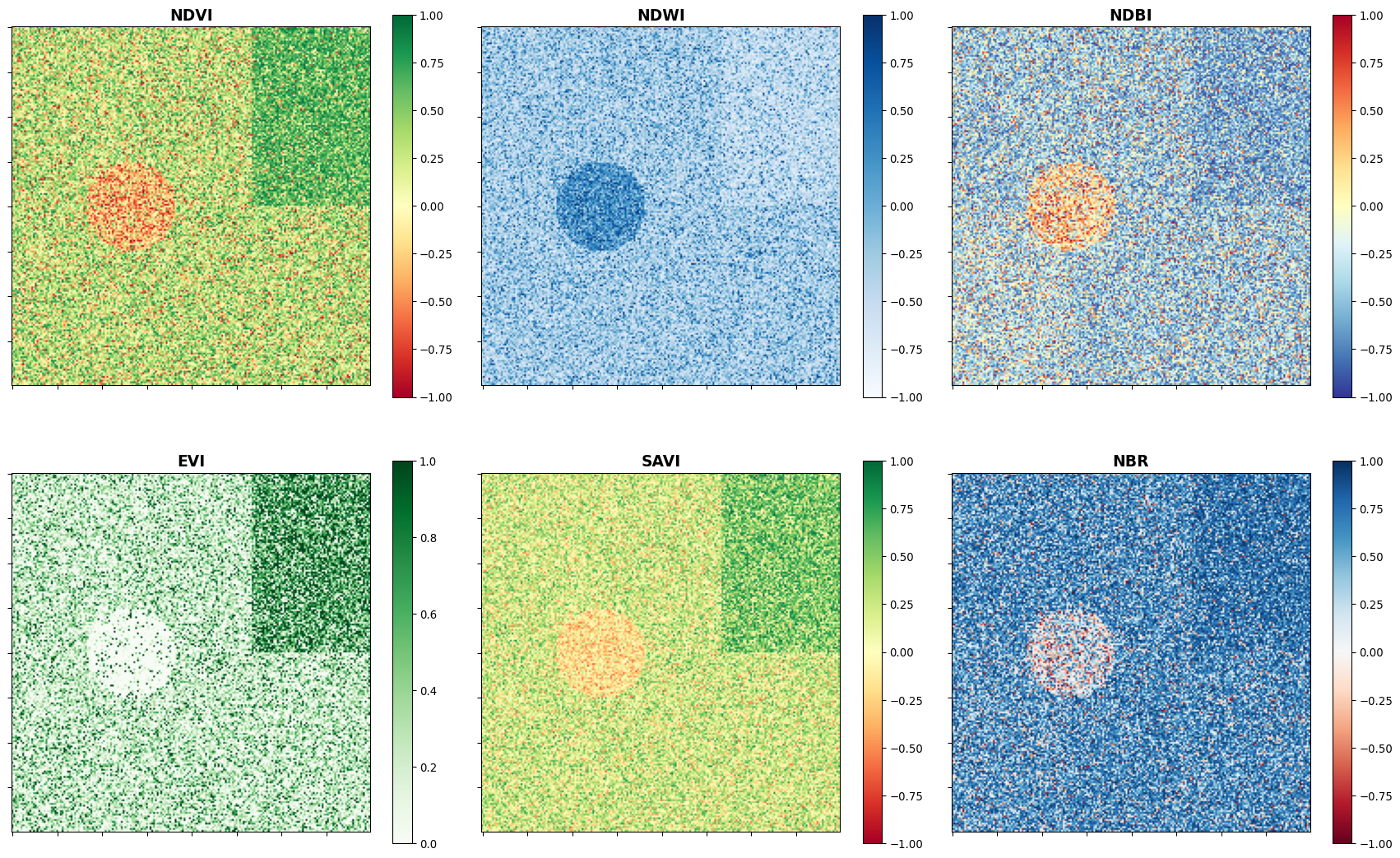

fig, axes = plt.subplots(2, 3, figsize=(18, 12))
axes = axes.ravel()
index_cmaps = {
'NDVI': ('RdYlGn', -1, 1),
'NDWI': ('Blues', -1, 1),
'NDBI': ('RdYlBu_r', -1, 1),
'EVI': ('Greens', 0, 1),
'SAVI': ('RdYlGn', -1, 1),
'NBR': ('RdBu', -1, 1)
}
for i, (index_name, values) in enumerate(indices.items()):
if i < len(axes):
cmap, vmin, vmax = index_cmaps[index_name]
im = axes[i].imshow(values, cmap=cmap, vmin=vmin, vmax=vmax)
axes[i].set_title(f'{index_name}', fontsize=14, fontweight='bold')
axes[i].tick_params(labelbottom=False, labelleft=False)
# Add colorbar
plt.colorbar(im, ax=axes[i], shrink=0.8)
plt.tight_layout()
plt.show()
# Print index statistics
print("Spectral Index Statistics:")
print("="*50)
for index_name, values in indices.items():
print(f"{index_name}:")
print(f" Range: [{values.min():.3f}, {values.max():.3f}]")
print(f" Mean: {values.mean():.3f}")
print(f" Std: {values.std():.3f}")
return bands, indices
bands_data, calculated_indices = calculate_spectral_indices()
Spectral Index Statistics:
==================================================
NDVI:
Range: [-0.998, 0.997]
Mean: 0.233
Std: 0.422
NDWI:
Range: [-0.983, 0.999]
Mean: -0.250
Std: 0.387
NDBI:
Range: [-0.998, 0.999]
Mean: -0.345
Std: 0.400
EVI:
Range: [-1397.065, 2362.418]
Mean: 0.291
Std: 14.919
SAVI:
Range: [-0.706, 1.029]
Mean: 0.207
Std: 0.316
NBR:
Range: [-0.999, 0.999]
Mean: 0.526
Std: 0.370def analyze_spectral_signatures():
"""Analyze spectral signatures for different land cover types"""
# Define wavelengths for common satellite bands
band_info = {
'Blue': {'wavelength': 0.48, 'band_num': 2},
'Green': {'wavelength': 0.56, 'band_num': 3},
'Red': {'wavelength': 0.66, 'band_num': 4},
'NIR': {'wavelength': 0.84, 'band_num': 8},
'SWIR1': {'wavelength': 1.61, 'band_num': 11},
'SWIR2': {'wavelength': 2.19, 'band_num': 12}
}
wavelengths = [info['wavelength'] for info in band_info.values()]
band_names = list(band_info.keys())
# Typical spectral signatures for different land cover types
signatures = {
'Healthy Vegetation': [0.05, 0.08, 0.04, 0.45, 0.25, 0.15],
'Water': [0.10, 0.08, 0.06, 0.02, 0.01, 0.01],
'Urban/Built-up': [0.15, 0.18, 0.20, 0.25, 0.35, 0.28],
'Bare Soil': [0.12, 0.16, 0.22, 0.28, 0.32, 0.30],
'Snow/Ice': [0.85, 0.88, 0.85, 0.75, 0.45, 0.25],
'Dry Vegetation': [0.08, 0.12, 0.18, 0.22, 0.28, 0.32]
}
# Plot spectral signatures

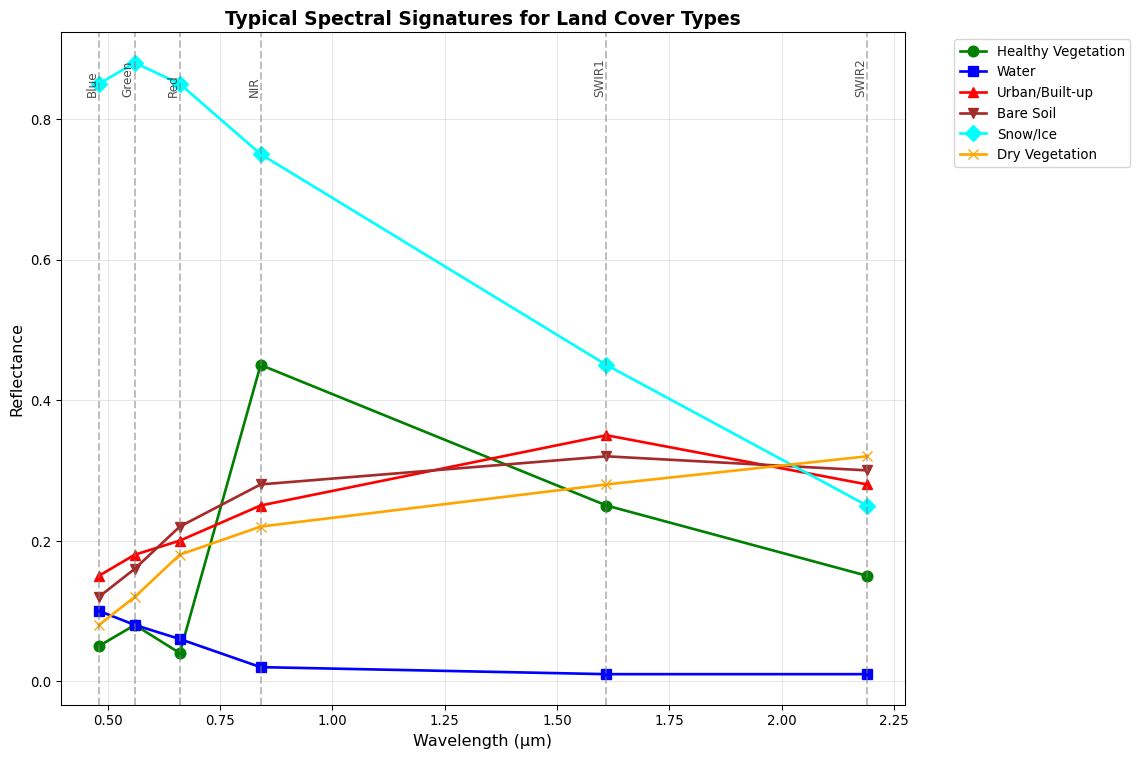

fig, ax = plt.subplots(figsize=(12, 8))
colors = ['green', 'blue', 'red', 'brown', 'cyan', 'orange']
markers = ['o', 's', '^', 'v', 'D', 'x']
for i, (land_cover, reflectance) in enumerate(signatures.items()):
ax.plot(wavelengths, reflectance,
marker=markers[i], color=colors[i],
linewidth=2, markersize=8, label=land_cover)
ax.set_xlabel('Wavelength (μm)', fontsize=12)
ax.set_ylabel('Reflectance', fontsize=12)
ax.set_title('Typical Spectral Signatures for Land Cover Types', fontsize=14, fontweight='bold')
ax.legend(bbox_to_anchor=(1.05, 1), loc='upper left')
ax.grid(True, alpha=0.3)
# Add band labels
for i, (wl, band) in enumerate(zip(wavelengths, band_names)):
ax.axvline(wl, color='gray', linestyle='--', alpha=0.5)
ax.text(wl, ax.get_ylim()[1] * 0.9, band, rotation=90,
ha='right', va='bottom', fontsize=9, alpha=0.7)
plt.tight_layout()
plt.show()
# Calculate spectral separability
def calculate_separability(sig1, sig2):
"""Calculate simple spectral separability metric"""
sig1, sig2 = np.array(sig1), np.array(sig2)
return np.sqrt(np.sum((sig1 - sig2)**2))
print("Spectral Separability Matrix:")
print("="*40)
land_covers = list(signatures.keys())
separability_matrix = np.zeros((len(land_covers), len(land_covers)))
for i, lc1 in enumerate(land_covers):
for j, lc2 in enumerate(land_covers):
if i != j:
sep = calculate_separability(signatures[lc1], signatures[lc2])
separability_matrix[i, j] = sep
# Create separability heatmap

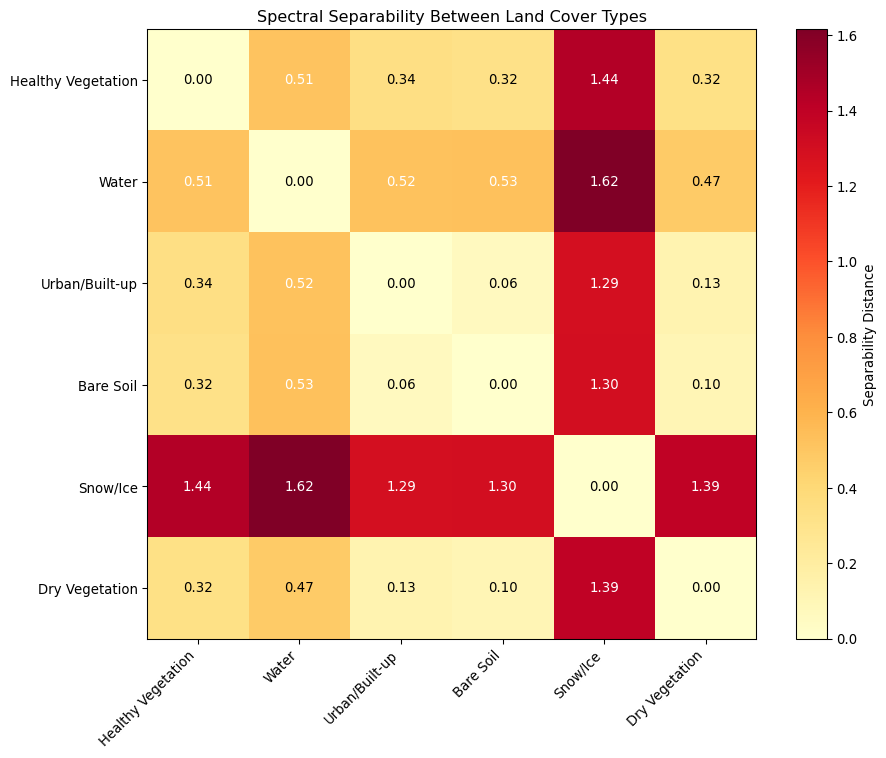

fig, ax = plt.subplots(figsize=(10, 8))
im = ax.imshow(separability_matrix, cmap='YlOrRd')
# Add labels
ax.set_xticks(range(len(land_covers)))
ax.set_yticks(range(len(land_covers)))
ax.set_xticklabels(land_covers, rotation=45, ha='right')
ax.set_yticklabels(land_covers)
# Add values to cells
for i in range(len(land_covers)):
for j in range(len(land_covers)):
text = ax.text(j, i, f'{separability_matrix[i, j]:.2f}',
ha='center', va='center', color='black' if separability_matrix[i, j] < 0.5 else 'white')
ax.set_title('Spectral Separability Between Land Cover Types')
plt.colorbar(im, label='Separability Distance')
plt.tight_layout()
plt.show()
return signatures, separability_matrix
spectral_sigs, sep_matrix = analyze_spectral_signatures()
Spectral Separability Matrix:
========================================
def demonstrate_temporal_analysis():
"""Demonstrate time series analysis of satellite data"""
# Create synthetic time series for different locations
dates = pd.date_range('2020-01-01', '2023-12-31', freq='16D') # Landsat-like revisit
# Simulate seasonal NDVI patterns for different land cover types
def create_ndvi_time_series(land_cover_type, dates):
"""Create realistic NDVI time series for different land covers"""
day_of_year = np.array([d.timetuple().tm_yday for d in dates])
if land_cover_type == 'Cropland':
# Strong seasonal pattern with planting/harvest cycles
base_ndvi = 0.3 + 0.5 * np.sin(2 * np.pi * (day_of_year - 120) / 365)
base_ndvi = np.clip(base_ndvi, 0, 0.9)
# Add harvest drops
harvest_days = [280, 280+365, 280+2*365, 280+3*365]
for harvest_day in harvest_days:
mask = np.abs(day_of_year - harvest_day) < 30
base_ndvi[mask] *= 0.3
elif land_cover_type == 'Forest':
# Stable with slight seasonal variation
base_ndvi = 0.7 + 0.2 * np.sin(2 * np.pi * (day_of_year - 150) / 365)
base_ndvi = np.clip(base_ndvi, 0.5, 0.9)
elif land_cover_type == 'Grassland':
# Moderate seasonal pattern
base_ndvi = 0.4 + 0.3 * np.sin(2 * np.pi * (day_of_year - 120) / 365)
base_ndvi = np.clip(base_ndvi, 0.1, 0.7)
elif land_cover_type == 'Urban':
# Low, stable values with minimal variation
base_ndvi = 0.2 + 0.05 * np.sin(2 * np.pi * (day_of_year - 120) / 365)
base_ndvi = np.clip(base_ndvi, 0.1, 0.3)
# Add noise
noise = np.random.normal(0, 0.05, len(dates))
ndvi_series = base_ndvi + noise
ndvi_series = np.clip(ndvi_series, -1, 1)
return ndvi_series
# Generate time series for different land covers
land_covers = ['Cropland', 'Forest', 'Grassland', 'Urban']
time_series_data = {}
for lc in land_covers:
time_series_data[lc] = create_ndvi_time_series(lc, dates)
# Plot time series

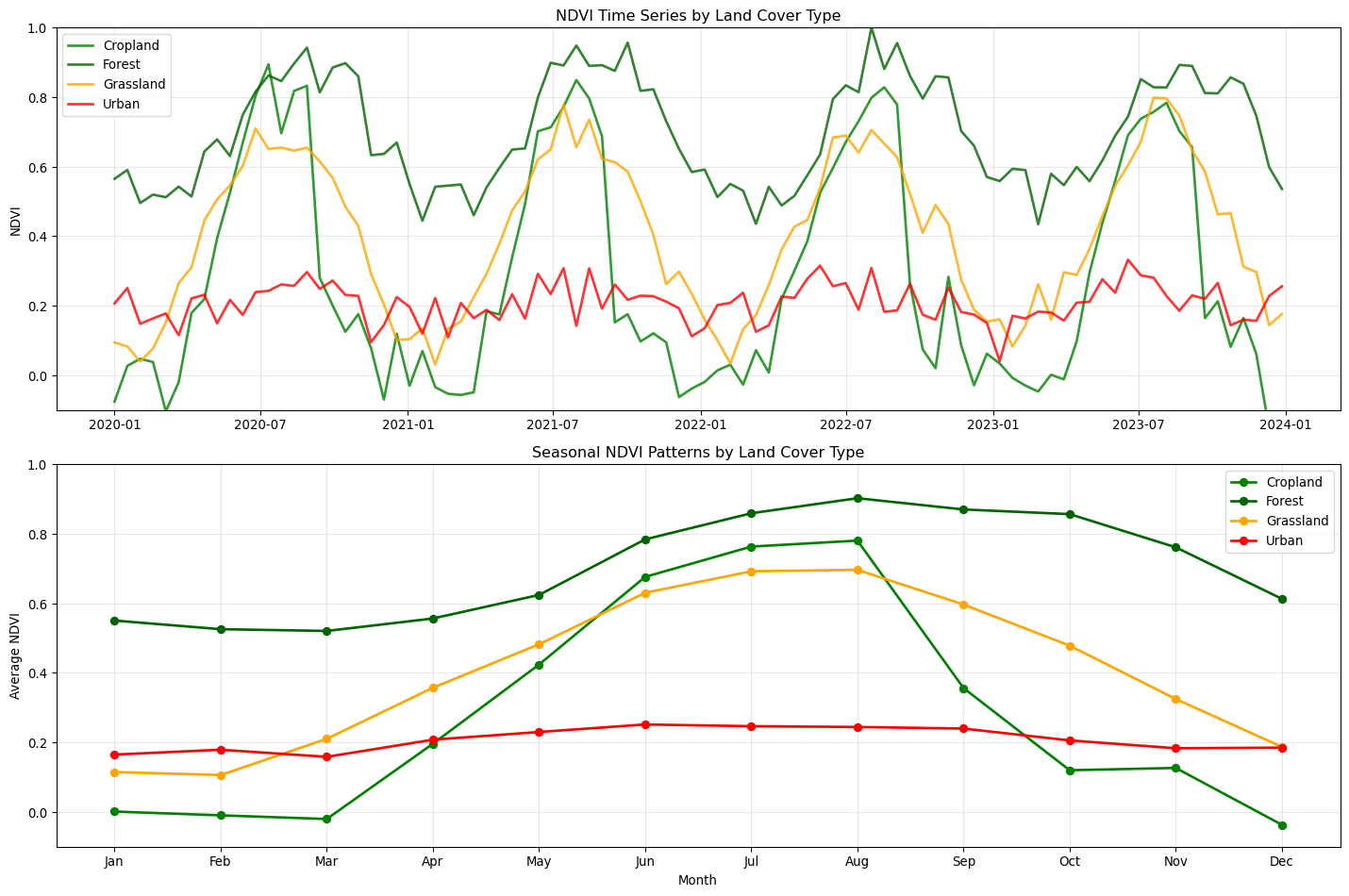

fig, axes = plt.subplots(2, 1, figsize=(15, 10))
# Individual time series
colors = ['green', 'darkgreen', 'orange', 'red']
for i, (lc, ndvi_series) in enumerate(time_series_data.items()):
axes[0].plot(dates, ndvi_series, label=lc, color=colors[i], alpha=0.8, linewidth=2)
axes[0].set_ylabel('NDVI')
axes[0].set_title('NDVI Time Series by Land Cover Type')
axes[0].legend()
axes[0].grid(True, alpha=0.3)
axes[0].set_ylim(-0.1, 1.0)
# Seasonal averages
monthly_data = {}
for lc, ndvi_series in time_series_data.items():
df = pd.DataFrame({'date': dates, 'ndvi': ndvi_series})
df['month'] = df['date'].dt.month
monthly_avg = df.groupby('month')['ndvi'].mean()
monthly_data[lc] = monthly_avg
months = range(1, 13)
month_names = ['Jan', 'Feb', 'Mar', 'Apr', 'May', 'Jun',
'Jul', 'Aug', 'Sep', 'Oct', 'Nov', 'Dec']
for i, (lc, monthly_ndvi) in enumerate(monthly_data.items()):
axes[1].plot(months, monthly_ndvi, marker='o', label=lc,
color=colors[i], linewidth=2, markersize=6)
axes[1].set_xlabel('Month')
axes[1].set_ylabel('Average NDVI')
axes[1].set_title('Seasonal NDVI Patterns by Land Cover Type')
axes[1].set_xticks(months)
axes[1].set_xticklabels(month_names)
axes[1].legend()
axes[1].grid(True, alpha=0.3)
axes[1].set_ylim(-0.1, 1.0)
plt.tight_layout()
plt.show()
# Calculate phenology metrics
def calculate_phenology_metrics(ndvi_series, dates):
"""Calculate basic phenology metrics"""
df = pd.DataFrame({'date': dates, 'ndvi': ndvi_series})
df['doy'] = df['date'].dt.dayofyear
# Annual cycle (use first complete year)
year_data = df[df['date'].dt.year == 2020].copy()
if len(year_data) == 0:
return None
# Basic metrics
max_ndvi = year_data['ndvi'].max()
min_ndvi = year_data['ndvi'].min()
amplitude = max_ndvi - min_ndvi
# Find peak of season
peak_doy = year_data.loc[year_data['ndvi'].idxmax(), 'doy']
# Growing season metrics (simplified)
threshold = min_ndvi + 0.2 * amplitude
growing_season = year_data[year_data['ndvi'] > threshold]
if len(growing_season) > 0:
sos = growing_season['doy'].min() # Start of season
eos = growing_season['doy'].max() # End of season
los = eos - sos # Length of season
else:
sos, eos, los = None, None, None
return {
'max_ndvi': max_ndvi,
'min_ndvi': min_ndvi,
'amplitude': amplitude,
'peak_doy': peak_doy,
'start_of_season': sos,
'end_of_season': eos,
'length_of_season': los
}
print("Phenology Metrics (2020):")
print("="*50)
for lc, ndvi_series in time_series_data.items():
metrics = calculate_phenology_metrics(ndvi_series, dates)
if metrics:
print(f"\n{lc}:")
for metric, value in metrics.items():
if value is not None:
if 'doy' in metric or 'season' in metric:
print(f" {metric}: {value:.0f} (day of year)")
else:
print(f" {metric}: {value:.3f}")
return time_series_data, monthly_data
ts_data, monthly_data = demonstrate_temporal_analysis()
Phenology Metrics (2020):
==================================================
Cropland:
max_ndvi: 0.894
min_ndvi: -0.104
amplitude: 0.998
peak_doy: 193 (day of year)
start_of_season: 97 (day of year)
end_of_season: 353 (day of year)
length_of_season: 256 (day of year)
Forest:
max_ndvi: 0.942
min_ndvi: 0.495
amplitude: 0.447
peak_doy: 241 (day of year)
start_of_season: 17 (day of year)
end_of_season: 353 (day of year)
length_of_season: 336 (day of year)
Grassland:
max_ndvi: 0.710
min_ndvi: 0.039
amplitude: 0.671
peak_doy: 177 (day of year)
start_of_season: 81 (day of year)
end_of_season: 337 (day of year)
length_of_season: 256 (day of year)
Urban:
max_ndvi: 0.297
min_ndvi: 0.095
amplitude: 0.202
peak_doy: 241 (day of year)
start_of_season: 1 (day of year)
end_of_season: 353 (day of year)
length_of_season: 352 (day of year)def demonstrate_cloud_masking():
"""Demonstrate cloud detection and masking techniques"""
# Create synthetic satellite image with clouds
height, width = 200, 200
# Base surface reflectance
np.random.seed(42)
surface_reflectance = {
'blue': np.random.beta(2, 5, (height, width)) * 0.3,
'green': np.random.beta(3, 4, (height, width)) * 0.4,
'red': np.random.beta(2, 3, (height, width)) * 0.5,
'nir': np.random.beta(1.5, 2, (height, width)) * 0.8,
}
# Add clouds
# Create cloud shapes
y, x = np.ogrid[:height, :width]
# Multiple cloud areas
cloud_centers = [(50, 60), (150, 40), (120, 150)]
cloud_sizes = [30, 25, 35]
cloud_mask = np.zeros((height, width), dtype=bool)
cloud_shadow_mask = np.zeros((height, width), dtype=bool)
for (cy, cx), size in zip(cloud_centers, cloud_sizes):
# Cloud area
cloud_area = (x - cx)**2 + (y - cy)**2 < size**2
cloud_mask |= cloud_area
# Cloud shadow (offset)
shadow_offset_x, shadow_offset_y = 10, 15
shadow_area = ((x - (cx + shadow_offset_x))**2 +
(y - (cy + shadow_offset_y))**2 < (size * 0.7)**2)
cloud_shadow_mask |= shadow_area
# Apply cloud effects to reflectance
cloudy_reflectance = surface_reflectance.copy()
# Clouds: high reflectance in visible, low in NIR
for band in ['blue', 'green', 'red']:
cloudy_reflectance[band][cloud_mask] = 0.8 + 0.1 * np.random.random(cloud_mask.sum())
cloudy_reflectance['nir'][cloud_mask] = 0.3 + 0.1 * np.random.random(cloud_mask.sum())
# Cloud shadows: reduced reflectance
for band in cloudy_reflectance:
cloudy_reflectance[band][cloud_shadow_mask] *= 0.7
# Cloud detection algorithms
def simple_cloud_detection(bands):
"""Simple cloud detection based on spectral criteria"""
# Calculate indices useful for cloud detection
# Normalized Difference Snow Index (can detect bright clouds)
ndsi = (bands['green'] - bands['nir']) / (bands['green'] + bands['nir'] + 1e-8)
# Blue-NIR ratio (clouds are bright in blue, dark in NIR)
blue_nir_ratio = bands['blue'] / (bands['nir'] + 1e-8)
# Simple thresholding
cloud_detected = (
(bands['blue'] > 0.3) & # High blue reflectance
(blue_nir_ratio > 1.5) & # High blue/NIR ratio
(ndsi > -0.1) # Modified NDSI threshold
)
return cloud_detected, {'ndsi': ndsi, 'blue_nir_ratio': blue_nir_ratio}
# Detect clouds
detected_clouds, detection_indices = simple_cloud_detection(cloudy_reflectance)
# Visualize cloud detection

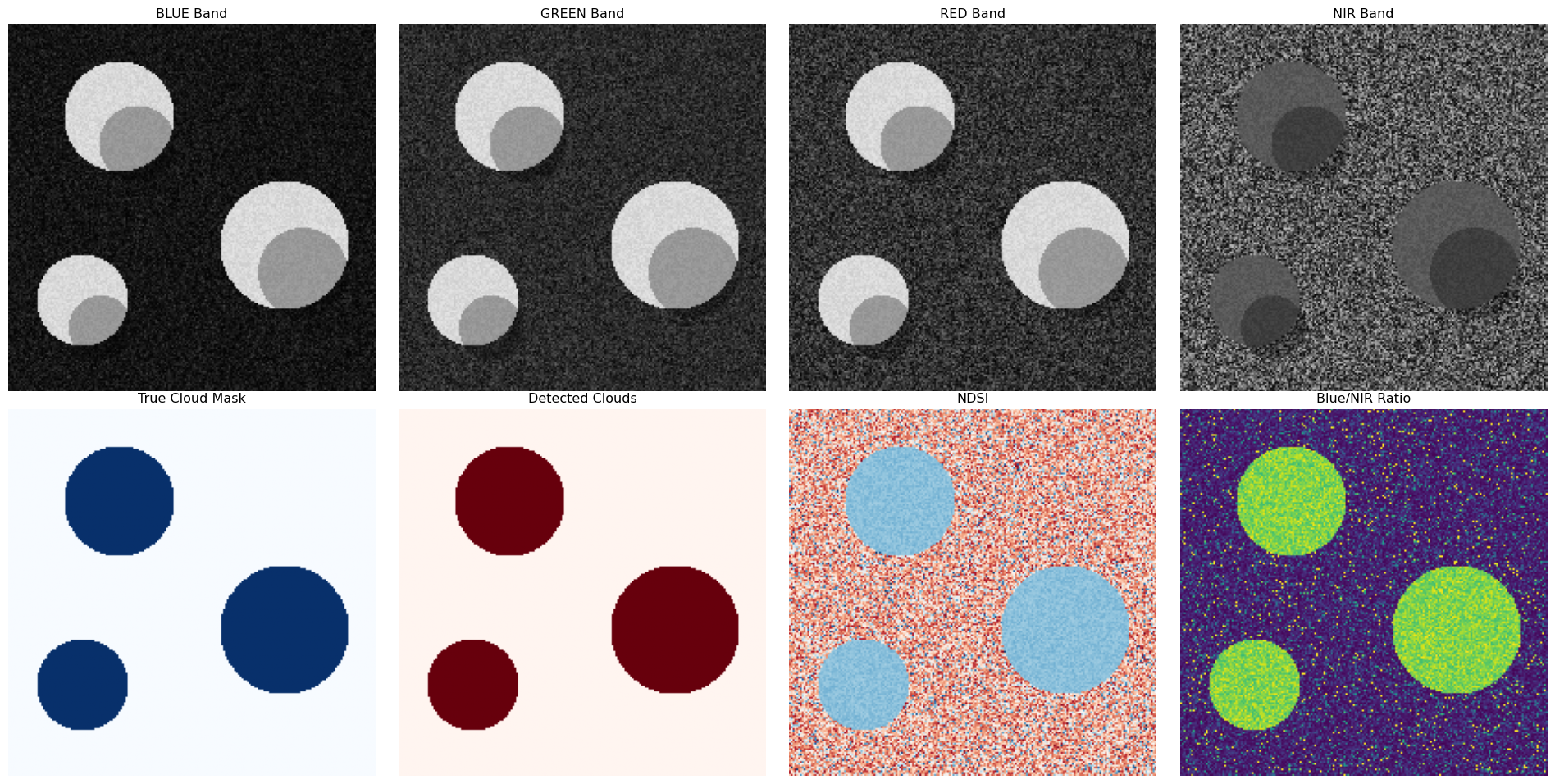

fig, axes = plt.subplots(2, 4, figsize=(20, 10))
# Original bands
band_names = ['blue', 'green', 'red', 'nir']
for i, band in enumerate(band_names):
axes[0, i].imshow(cloudy_reflectance[band], cmap='gray', vmin=0, vmax=1)
axes[0, i].set_title(f'{band.upper()} Band')
axes[0, i].axis('off')
# Detection results
axes[1, 0].imshow(cloud_mask, cmap='Blues')
axes[1, 0].set_title('True Cloud Mask')
axes[1, 0].axis('off')
axes[1, 1].imshow(detected_clouds, cmap='Reds')
axes[1, 1].set_title('Detected Clouds')
axes[1, 1].axis('off')
axes[1, 2].imshow(detection_indices['ndsi'], cmap='RdBu', vmin=-1, vmax=1)
axes[1, 2].set_title('NDSI')
axes[1, 2].axis('off')
axes[1, 3].imshow(detection_indices['blue_nir_ratio'], cmap='viridis', vmin=0, vmax=3)
axes[1, 3].set_title('Blue/NIR Ratio')
axes[1, 3].axis('off')
plt.tight_layout()
plt.show()
# Calculate detection accuracy
true_positives = (cloud_mask & detected_clouds).sum()
false_positives = (~cloud_mask & detected_clouds).sum()
false_negatives = (cloud_mask & ~detected_clouds).sum()
true_negatives = (~cloud_mask & ~detected_clouds).sum()
precision = true_positives / (true_positives + false_positives) if (true_positives + false_positives) > 0 else 0
recall = true_positives / (true_positives + false_negatives) if (true_positives + false_negatives) > 0 else 0
f1_score = 2 * precision * recall / (precision + recall) if (precision + recall) > 0 else 0
print("Cloud Detection Performance:")
print("="*35)
print(f"True Positives: {true_positives}")
print(f"False Positives: {false_positives}")
print(f"False Negatives: {false_negatives}")
print(f"Precision: {precision:.3f}")
print(f"Recall: {recall:.3f}")
print(f"F1 Score: {f1_score:.3f}")
return cloudy_reflectance, cloud_mask, detected_clouds
cloudy_data, true_clouds, detected_clouds = demonstrate_cloud_masking()
Cloud Detection Performance:
===================================
True Positives: 8591
False Positives: 0
False Negatives: 0
Precision: 1.000
Recall: 1.000
F1 Score: 1.000Key concepts for geospatial data and remote sensing: - Sensor Fundamentals: Electromagnetic spectrum, satellite orbits, revisit times - Coordinate Systems: Projections, transformations, metadata handling - Spectral Analysis: Indices calculation, signatures, land cover discrimination - Temporal Analysis: Time series, phenology, seasonal patterns - Data Quality: Cloud detection, masking, quality assessment - Applications: Vegetation monitoring, change detection, environmental assessment
