TorchGeo is a PyTorch domain library for geospatial data, providing datasets, samplers, transforms, and pre-trained models for satellite imagery and geospatial applications.
import torch
import torchgeo
from torchgeo.datasets import RasterDataset, stack_samples
from torchgeo.transforms import AugmentationSequential
import matplotlib.pyplot as plt
import numpy as np
print(f"TorchGeo version: {torchgeo.__version__}")
print(f"PyTorch version: {torch.__version__}")TorchGeo version: 0.7.1
PyTorch version: 2.7.1from torchgeo.datasets import RasterDataset
from torchgeo.samplers import RandomGeoSampler
import tempfile
import os
from pathlib import Path
# Create a simple custom dataset (not inheriting from RasterDataset for demo)
from torchgeo.datasets import BoundingBox
from rtree.index import Index, Property
class SampleGeoDataset:
"""Sample geospatial dataset for demonstration"""
def __init__(self, transforms=None):
self.transforms = transforms
# Define dataset bounds
self.bounds = BoundingBox(-10.0, 10.0, -10.0, 10.0, 0, 100)
# Define resolution (meters per pixel)
self.res = 10.0 # 10 meter resolution
# Create spatial index required by TorchGeo samplers
self.index = Index(interleaved=False, properties=Property(dimension=3))
# Add the dataset bounds to the index
self.index.insert(0, tuple(self.bounds))
def __getitem__(self, query):
# Create synthetic data for demonstration
sample = {
'image': torch.rand(3, 256, 256), # RGB image
'bbox': query,
'crs': 'EPSG:4326'
}
if self.transforms:
sample = self.transforms(sample)
return sample
def __len__(self):
return 1000 # Arbitrary length for sampling
# Initialize dataset
dataset = SampleGeoDataset()
print(f"Dataset created: {type(dataset).__name__}")
print(f"Dataset bounds: {dataset.bounds}")Dataset created: SampleGeoDataset
Dataset bounds: BoundingBox(minx=-10.0, maxx=10.0, miny=-10.0, maxy=10.0, mint=0, maxt=100)from torchgeo.datasets import RESISC45, EuroSAT
# Note: These require downloaded data files
# For demonstration, we show the usage patterns
# RESISC45 - Remote sensing image scene classification
# resisc45 = RESISC45(root='data/resisc45', download=True)
# print(f"RESISC45 classes: {len(resisc45.classes)}")
# EuroSAT - Sentinel-2 image classification
# eurosat = EuroSAT(root='data/eurosat', download=True)
# print(f"EuroSAT classes: {len(eurosat.classes)}")
print("Vision dataset classes ready for use with downloaded data")Vision dataset classes ready for use with downloaded datafrom torchgeo.samplers import RandomGeoSampler, GridGeoSampler
from torchgeo.datasets import BoundingBox
# Define a region of interest
roi = BoundingBox(
minx=-10.0, maxx=10.0,
miny=-10.0, maxy=10.0,
mint=0, maxt=100
)
# For demonstration, show sampler concepts without full implementation
print("TorchGeo Samplers:")
print("- RandomGeoSampler: Randomly samples patches from spatial regions")
print("- GridGeoSampler: Systematically samples patches in a grid pattern")
print("- Units can be PIXELS or CRS (coordinate reference system)")
print(f"Sample ROI: {roi}")
# Note: Actual usage requires proper GeoDataset implementation
# random_sampler = RandomGeoSampler(dataset=dataset, size=256, length=100, roi=roi)TorchGeo Samplers:
- RandomGeoSampler: Randomly samples patches from spatial regions
- GridGeoSampler: Systematically samples patches in a grid pattern
- Units can be PIXELS or CRS (coordinate reference system)
Sample ROI: BoundingBox(minx=-10.0, maxx=10.0, miny=-10.0, maxy=10.0, mint=0, maxt=100)# Grid-based systematic sampling concept
print("GridGeoSampler Usage Pattern:")
print("- size: Patch size in pixels (e.g., 256)")
print("- stride: Step size between patches (e.g., 128 for overlap)")
print("- roi: Region of interest as BoundingBox")
print("- Provides systematic spatial coverage")
# Example conceptual usage:
# grid_sampler = GridGeoSampler(dataset=dataset, size=256, stride=128, roi=roi)GridGeoSampler Usage Pattern:
- size: Patch size in pixels (e.g., 256)
- stride: Step size between patches (e.g., 128 for overlap)
- roi: Region of interest as BoundingBox
- Provides systematic spatial coverageimport torchvision.transforms as T
from torchgeo.transforms import AugmentationSequential
# Standard computer vision transforms for preprocessing
normalization_transform = T.Normalize(mean=[0.485, 0.456, 0.406], std=[0.229, 0.224, 0.225])
# Basic geometric augmentations
basic_augments = T.Compose([
T.RandomHorizontalFlip(p=0.5),
T.RandomVerticalFlip(p=0.5),
])
print("Transform sequences created:")
print("- Normalization transform for pretrained models")
print("- Basic augmentations for training")
print("- TorchGeo's AugmentationSequential preserves spatial relationships")Transform sequences created:
- Normalization transform for pretrained models
- Basic augmentations for training
- TorchGeo's AugmentationSequential preserves spatial relationships# Create sample data for demonstration
sample_image = torch.rand(3, 256, 256)
sample_mask = torch.randint(0, 5, (256, 256))
# Apply basic transforms
augmented_image = basic_augments(sample_image)
normalized_image = normalization_transform(sample_image)
print(f"Original image shape: {sample_image.shape}")
print(f"Augmented image shape: {augmented_image.shape}")
print(f"Normalized image range: [{normalized_image.min():.3f}, {normalized_image.max():.3f}]")
# TorchGeo's AugmentationSequential provides spatial awareness
print("\nTorchGeo AugmentationSequential benefits:")
print("- Preserves spatial relationships between image and mask")
print("- Handles coordinate transformations")
print("- Supports multi-modal data (image + labels + metadata)")Original image shape: torch.Size([3, 256, 256])
Augmented image shape: torch.Size([3, 256, 256])
Normalized image range: [-2.118, 2.640]
TorchGeo AugmentationSequential benefits:
- Preserves spatial relationships between image and mask
- Handles coordinate transformations
- Supports multi-modal data (image + labels + metadata)from torchgeo.datasets import Landsat8
# Note: Requires actual Landsat data
# landsat = Landsat8(root='data/landsat8')
# Define query for specific area and time
query = BoundingBox(
minx=-100.0, maxx=-99.0, # Longitude
miny=40.0, maxy=41.0, # Latitude
mint=637110000, # Time (Unix timestamp)
maxt=637196400
)
# Sample usage pattern:
# sample = landsat[query]
# print(f"Landsat sample keys: {sample.keys()}")
print("Landsat dataset pattern demonstrated")Landsat dataset pattern demonstratedfrom torchgeo.datasets import Sentinel2
# Sentinel-2 usage pattern
# sentinel = Sentinel2(root='data/sentinel2')
# s2_sample = sentinel[query]
print("Sentinel-2 dataset pattern demonstrated")Sentinel-2 dataset pattern demonstratedfrom torchgeo.datasets import IntersectionDataset, UnionDataset
# Multi-modal data fusion concept
print("TorchGeo Dataset Fusion:")
print("- IntersectionDataset: Combines data that exists in ALL datasets")
print("- UnionDataset: Combines data that exists in ANY dataset")
print("- Useful for multi-modal analysis (optical + SAR + DEM)")
# Example fusion workflow:
print("\nTypical fusion workflow:")
print("1. Load optical imagery dataset (Sentinel-2)")
print("2. Load elevation dataset (DEM)")
print("3. Load land cover dataset (labels)")
print("4. Use IntersectionDataset to ensure spatial-temporal alignment")
print("5. Sample consistent patches across all modalities")
# Note: Requires proper GeoDataset implementations
# fused_ds = IntersectionDataset(optical_ds, dem_ds, landcover_ds)TorchGeo Dataset Fusion:
- IntersectionDataset: Combines data that exists in ALL datasets
- UnionDataset: Combines data that exists in ANY dataset
- Useful for multi-modal analysis (optical + SAR + DEM)
Typical fusion workflow:
1. Load optical imagery dataset (Sentinel-2)
2. Load elevation dataset (DEM)
3. Load land cover dataset (labels)
4. Use IntersectionDataset to ensure spatial-temporal alignment
5. Sample consistent patches across all modalities# Create multiple samples to stack
samples = []
for i in range(4):
sample = {
'image': torch.rand(3, 64, 64),
'mask': torch.randint(0, 2, (64, 64)),
'elevation': torch.rand(1, 64, 64)
}
samples.append(sample)
# Stack into batch
batch = stack_samples(samples)
print(f"Batch image shape: {batch['image'].shape}")
print(f"Batch mask shape: {batch['mask'].shape}")
print(f"Batch elevation shape: {batch['elevation'].shape}")Batch image shape: torch.Size([4, 3, 64, 64])
Batch mask shape: torch.Size([4, 64, 64])
Batch elevation shape: torch.Size([4, 1, 64, 64])import pytorch_lightning as pl
from torch.utils.data import DataLoader
class GeospatialDataModule(pl.LightningDataModule):
"""Data module for geospatial training"""
def __init__(self, batch_size=32, num_workers=4):
super().__init__()
self.batch_size = batch_size
self.num_workers = num_workers
def setup(self, stage=None):
print("Setting up geospatial data module:")
print("- Train/val split: 80/20")
print("- Spatial sampling strategy")
print("- Multi-worker data loading")
def train_dataloader(self):
print("Creating train dataloader with TorchGeo samplers")
return None # Would return actual DataLoader with GeoSampler
def val_dataloader(self):
print("Creating validation dataloader")
return None # Would return actual DataLoader
# Example usage pattern
print("PyTorch Lightning + TorchGeo Integration:")
print("- Use GeoDataModule for spatial-aware data loading")
print("- Combine with GeoSamplers for patch-based training")
print("- Stack samples for batch processing")
print("- Supports multi-modal geospatial data")
datamodule = GeospatialDataModule(batch_size=8)
datamodule.setup()PyTorch Lightning + TorchGeo Integration:
- Use GeoDataModule for spatial-aware data loading
- Combine with GeoSamplers for patch-based training
- Stack samples for batch processing
- Supports multi-modal geospatial data
Setting up geospatial data module:
- Train/val split: 80/20
- Spatial sampling strategy
- Multi-worker data loadingfrom torchgeo.models import ResNet18_Weights
import torchvision.models as models
# Load pre-trained weights for satellite imagery
# weights = ResNet18_Weights.SENTINEL2_ALL_MOCO
# model = models.resnet18(weights=weights)
# For demonstration without actual weights:
model = models.resnet18(pretrained=False)
model.conv1 = torch.nn.Conv2d(
in_channels=12, # Sentinel-2 has 12 bands
out_channels=64,
kernel_size=7,
stride=2,
padding=3,
bias=False
)
print(f"Model adapted for {model.conv1.in_channels} input channels")Model adapted for 12 input channels/Users/kellycaylor/mambaforge/envs/geoAI/lib/python3.11/site-packages/torchvision/models/_utils.py:208: UserWarning:
The parameter 'pretrained' is deprecated since 0.13 and may be removed in the future, please use 'weights' instead.
/Users/kellycaylor/mambaforge/envs/geoAI/lib/python3.11/site-packages/torchvision/models/_utils.py:223: UserWarning:
Arguments other than a weight enum or `None` for 'weights' are deprecated since 0.13 and may be removed in the future. The current behavior is equivalent to passing `weights=None`.
import torch.nn as nn
class GeospatialClassifier(nn.Module):
"""Classifier for geospatial data"""
def __init__(self, backbone, num_classes=10):
super().__init__()
self.backbone = backbone
# Replace classifier head
if hasattr(backbone, 'fc'):
in_features = backbone.fc.in_features
backbone.fc = nn.Linear(in_features, num_classes)
def forward(self, x):
return self.backbone(x)
# Create classifier
classifier = GeospatialClassifier(model, num_classes=10)
print(f"Classifier created for {classifier.backbone.fc.out_features} classes")Classifier created for 10 classesdef plot_sample(sample, figsize=(12, 4)):

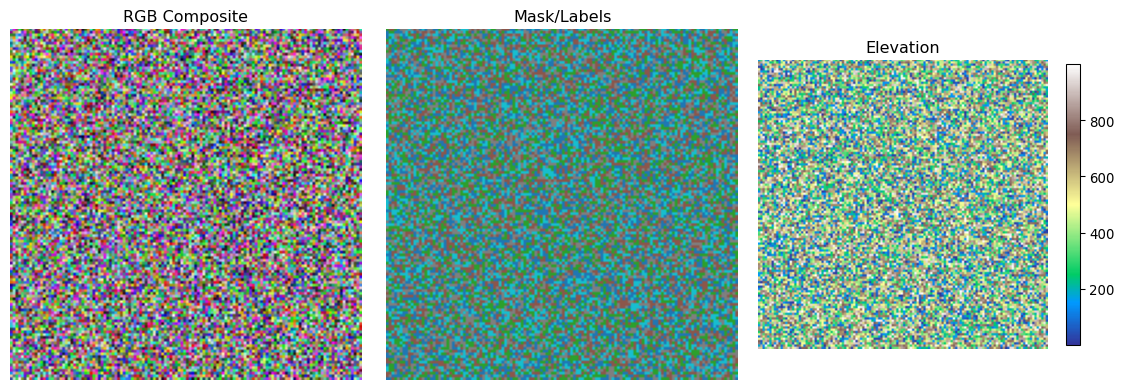

"""Plot a geospatial sample"""
fig, axes = plt.subplots(1, 3, figsize=figsize)
# RGB image (first 3 channels)
if 'image' in sample:
image = sample['image']
if image.shape[0] >= 3:
rgb = image[:3].permute(1, 2, 0)
# Normalize for display
rgb = (rgb - rgb.min()) / (rgb.max() - rgb.min())
axes[0].imshow(rgb)
axes[0].set_title('RGB Composite')
axes[0].axis('off')
# Mask/labels
if 'mask' in sample:
mask = sample['mask']
axes[1].imshow(mask, cmap='tab10')
axes[1].set_title('Mask/Labels')
axes[1].axis('off')
# Additional data (e.g., elevation)
if 'elevation' in sample:
elev = sample['elevation'].squeeze()
im = axes[2].imshow(elev, cmap='terrain')
axes[2].set_title('Elevation')
axes[2].axis('off')
plt.colorbar(im, ax=axes[2], shrink=0.8)
plt.tight_layout()
plt.show()
# Create and plot a sample
demo_sample = {
'image': torch.rand(3, 128, 128),
'mask': torch.randint(0, 5, (128, 128)),
'elevation': torch.rand(1, 128, 128) * 1000
}
plot_sample(demo_sample)
def compute_dataset_stats(dataloader, num_samples=100):
"""Compute dataset statistics for normalization"""
pixel_sum = torch.zeros(3)
pixel_squared_sum = torch.zeros(3)
num_pixels = 0
for i, batch in enumerate(dataloader):
if i >= num_samples:
break
images = batch['image']
batch_size, channels, height, width = images.shape
num_pixels += batch_size * height * width
pixel_sum += images.sum(dim=[0, 2, 3])
pixel_squared_sum += (images ** 2).sum(dim=[0, 2, 3])
mean = pixel_sum / num_pixels
var = (pixel_squared_sum / num_pixels) - (mean ** 2)
std = torch.sqrt(var)
return mean, std
# Example usage (would require actual dataloader)
# mean, std = compute_dataset_stats(train_loader)
# print(f"Dataset mean: {mean}")
# print(f"Dataset std: {std}")
print("Dataset statistics computation function ready")Dataset statistics computation function readyclass SpectralIndices:
"""Common spectral indices for satellite imagery"""
@staticmethod
def ndvi(red, nir):
"""Normalized Difference Vegetation Index"""
return (nir - red) / (nir + red + 1e-8)
@staticmethod
def ndwi(green, nir):
"""Normalized Difference Water Index"""
return (green - nir) / (green + nir + 1e-8)
@staticmethod
def evi(blue, red, nir, g=2.5, c1=6.0, c2=7.5, l=1.0):
"""Enhanced Vegetation Index"""
return g * (nir - red) / (nir + c1 * red - c2 * blue + l)
# Example with Sentinel-2 bands (simulated)
s2_image = torch.rand(12, 256, 256) # 12 Sentinel-2 bands
# Extract specific bands (0-indexed)
blue = s2_image[1] # B2
green = s2_image[2] # B3
red = s2_image[3] # B4
nir = s2_image[7] # B8
# Calculate indices
ndvi = SpectralIndices.ndvi(red, nir)
ndwi = SpectralIndices.ndwi(green, nir)
evi = SpectralIndices.evi(blue, red, nir)
print(f"NDVI shape: {ndvi.shape}, range: [{ndvi.min():.3f}, {ndvi.max():.3f}]")
print(f"NDWI shape: {ndwi.shape}, range: [{ndwi.min():.3f}, {ndwi.max():.3f}]")NDVI shape: torch.Size([256, 256]), range: [-1.000, 1.000]
NDWI shape: torch.Size([256, 256]), range: [-1.000, 1.000]class TemporalDataset:
"""Dataset for temporal satellite imagery"""
def __init__(self, time_steps=5):
self.time_steps = time_steps
self.bounds = BoundingBox(-10.0, 10.0, -10.0, 10.0, 0, 100)
# Create spatial index
self.index = Index(interleaved=False, properties=Property(dimension=3))
self.index.insert(0, tuple(self.bounds))
def __getitem__(self, query):
# Simulate temporal data
temporal_images = []
for t in range(self.time_steps):
# Each time step has slightly different data
image = torch.rand(3, 256, 256) + t * 0.1
temporal_images.append(image)
return {
'image': torch.stack(temporal_images, dim=0), # [T, C, H, W]
'bbox': query,
'timestamps': torch.arange(self.time_steps)
}
# Create temporal dataset
temporal_ds = TemporalDataset(time_steps=5)
print("Temporal dataset created for time series analysis")Temporal dataset created for time series analysisclass CachedDataset:
"""Dataset with caching for repeated access"""
def __init__(self, cache_size=1000):
self.cache = {}
self.cache_size = cache_size
self.bounds = BoundingBox(-10.0, 10.0, -10.0, 10.0, 0, 100)
# Create spatial index
self.index = Index(interleaved=False, properties=Property(dimension=3))
self.index.insert(0, tuple(self.bounds))
def __getitem__(self, query):
query_key = str(query)
if query_key in self.cache:
return self.cache[query_key]
# Generate/load data
sample = {
'image': torch.rand(3, 256, 256),
'bbox': query
}
# Cache if space available
if len(self.cache) < self.cache_size:
self.cache[query_key] = sample
return sample
print("Cached dataset implementation ready")Cached dataset implementation readydef create_efficient_dataloader(dataset, batch_size=32, num_workers=4):
"""Create memory-efficient dataloader"""
sampler = RandomGeoSampler(dataset, size=256, length=1000)
return DataLoader(
dataset,
sampler=sampler,
batch_size=batch_size,
num_workers=num_workers,
collate_fn=stack_samples,
pin_memory=True, # Faster GPU transfer
persistent_workers=True, # Keep workers alive
prefetch_factor=2 # Prefetch batches
)
print("Efficient dataloader configuration ready")Efficient dataloader configuration readyKey TorchGeo concepts: - RasterDataset: Base class for raster data - VisionDataset: Classification datasets (RESISC45, EuroSAT) - GeoSampler: Spatial sampling strategies - Transforms: Geospatial-aware data augmentation - DataModule: PyTorch Lightning integration - Multi-modal: Combining different data sources - Pre-trained models: Domain-specific model weights - Spectral indices: Vegetation, water, soil indices
