Model inference and feature extraction are crucial for applying trained models to satellite imagery analysis and extracting meaningful representations.
import torch
import torch.nn as nn
import torch.nn.functional as F
import numpy as np
import matplotlib.pyplot as plt
from sklearn.decomposition import PCA
from sklearn.manifold import TSNE
import seaborn as sns
print(f"PyTorch version: {torch.__version__}")
print(f"CUDA available: {torch.cuda.is_available()}")PyTorch version: 2.7.1
CUDA available: Falseclass GeospatialClassifier(nn.Module):
"""Example geospatial classifier for demonstration"""
def __init__(self, num_channels=6, num_classes=10, embed_dim=256):
super().__init__()
# Feature extraction layers
self.conv1 = nn.Conv2d(num_channels, 64, 7, stride=2, padding=3)
self.conv2 = nn.Conv2d(64, 128, 3, stride=2, padding=1)
self.conv3 = nn.Conv2d(128, 256, 3, stride=2, padding=1)
# Global pooling and classification
self.global_pool = nn.AdaptiveAvgPool2d(1)
self.classifier = nn.Linear(256, num_classes)
# Feature embedding layer
self.feature_embed = nn.Linear(256, embed_dim)
def forward(self, x, return_features=False):
# Feature extraction
x = F.relu(self.conv1(x))
x = F.relu(self.conv2(x))
features = F.relu(self.conv3(x))
# Global pooling
pooled = self.global_pool(features).flatten(1)
# Classification
logits = self.classifier(pooled)
if return_features:
embeddings = self.feature_embed(pooled)
return {
'logits': logits,
'features': embeddings,
'spatial_features': features,
'pooled_features': pooled
}
return logits
# Create model
model = GeospatialClassifier(num_channels=6, num_classes=10, embed_dim=256)
model.eval()
# Single image inference
sample_image = torch.randn(1, 6, 224, 224) # Batch of 1, 6 channels
with torch.no_grad():
# Basic inference
predictions = model(sample_image)
# Inference with features
outputs = model(sample_image, return_features=True)
print(f"Input shape: {sample_image.shape}")
print(f"Predictions shape: {predictions.shape}")
print(f"Logits shape: {outputs['logits'].shape}")
print(f"Features shape: {outputs['features'].shape}")
print(f"Spatial features shape: {outputs['spatial_features'].shape}")Input shape: torch.Size([1, 6, 224, 224])
Predictions shape: torch.Size([1, 10])
Logits shape: torch.Size([1, 10])
Features shape: torch.Size([1, 256])
Spatial features shape: torch.Size([1, 256, 28, 28])def batch_inference(model, images, batch_size=32, device='cpu'):
"""Perform batch inference on multiple images"""
model.to(device)
model.eval()
all_predictions = []
all_features = []
# Process in batches
n_images = len(images)
n_batches = (n_images + batch_size - 1) // batch_size
with torch.no_grad():
for i in range(n_batches):
start_idx = i * batch_size
end_idx = min(start_idx + batch_size, n_images)
batch = images[start_idx:end_idx].to(device)
# Get predictions and features
outputs = model(batch, return_features=True)
all_predictions.append(outputs['logits'].cpu())
all_features.append(outputs['features'].cpu())
print(f"Processed batch {i+1}/{n_batches}", end='\r')
# Concatenate results
final_predictions = torch.cat(all_predictions, dim=0)
final_features = torch.cat(all_features, dim=0)
print(f"\nCompleted inference on {n_images} images")
return final_predictions, final_features
# Create sample batch
batch_images = torch.randn(100, 6, 224, 224)
# Run batch inference
predictions, features = batch_inference(model, batch_images, batch_size=16)
print(f"Batch predictions shape: {predictions.shape}")
print(f"Batch features shape: {features.shape}")Processed batch 1/7Processed batch 2/7Processed batch 3/7Processed batch 4/7Processed batch 5/7Processed batch 6/7Processed batch 7/7
Completed inference on 100 images
Batch predictions shape: torch.Size([100, 10])
Batch features shape: torch.Size([100, 256])class FeatureExtractor:
"""Extract features from specific layers of a model"""
def __init__(self, model, layer_names=None):
self.model = model
self.model.eval()
self.features = {}
self.hooks = []
if layer_names is None:
# Extract from all named modules
layer_names = [name for name, _ in model.named_modules() if name]
self.register_hooks(layer_names)
def register_hooks(self, layer_names):
"""Register forward hooks for feature extraction"""
def make_hook(name):
def hook(module, input, output):
# Store detached copy to avoid gradient tracking
if isinstance(output, torch.Tensor):
self.features[name] = output.detach().cpu()
elif isinstance(output, (list, tuple)):
self.features[name] = [o.detach().cpu() if isinstance(o, torch.Tensor) else o for o in output]
elif isinstance(output, dict):
self.features[name] = {k: v.detach().cpu() if isinstance(v, torch.Tensor) else v
for k, v in output.items()}
return hook
# Register hooks
for name, module in self.model.named_modules():
if name in layer_names:
handle = module.register_forward_hook(make_hook(name))
self.hooks.append(handle)
print(f"Registered hook for layer: {name}")
def extract(self, images):
"""Extract features from registered layers"""
self.features.clear()
with torch.no_grad():
# Forward pass triggers hooks
_ = self.model(images)
return self.features.copy()
def remove_hooks(self):
"""Remove all registered hooks"""
for hook in self.hooks:
hook.remove()
self.hooks.clear()
# Create feature extractor
extractor = FeatureExtractor(
model,
layer_names=['conv1', 'conv2', 'conv3', 'global_pool']
)
# Extract features
sample_input = torch.randn(4, 6, 224, 224)
extracted_features = extractor.extract(sample_input)
print("Extracted features:")
for layer_name, features in extracted_features.items():
if isinstance(features, torch.Tensor):
print(f"{layer_name}: {features.shape}")
else:
print(f"{layer_name}: {type(features)}")
# Clean up
extractor.remove_hooks()Registered hook for layer: conv1
Registered hook for layer: conv2
Registered hook for layer: conv3
Registered hook for layer: global_pool
Extracted features:
conv1: torch.Size([4, 64, 112, 112])
conv2: torch.Size([4, 128, 56, 56])
conv3: torch.Size([4, 256, 28, 28])
global_pool: torch.Size([4, 256, 1, 1])class MultiScaleFeatureExtractor(nn.Module):
"""Extract features at multiple scales"""
def __init__(self, backbone):
super().__init__()
self.backbone = backbone
# Feature pyramid levels
self.scales = [1.0, 0.75, 0.5, 0.25]
def forward(self, x):
batch_size, channels, height, width = x.shape
multiscale_features = {}
for scale in self.scales:
# Resize input
if scale != 1.0:
new_size = (int(height * scale), int(width * scale))
scaled_input = F.interpolate(x, size=new_size, mode='bilinear', align_corners=False)
else:
scaled_input = x
# Extract features
with torch.no_grad():
outputs = self.backbone(scaled_input, return_features=True)
# Store features with scale info
scale_key = f"scale_{scale:.2f}"
multiscale_features[scale_key] = {
'features': outputs['features'],
'spatial_features': outputs['spatial_features'],
'input_size': scaled_input.shape[-2:]
}
return multiscale_features
# Create multi-scale extractor
multiscale_extractor = MultiScaleFeatureExtractor(model)
multiscale_extractor.eval()
# Extract multi-scale features
sample_input = torch.randn(2, 6, 224, 224)
multiscale_features = multiscale_extractor(sample_input)
print("Multi-scale features:")
for scale, features in multiscale_features.items():
print(f"{scale}:")
print(f" Features: {features['features'].shape}")
print(f" Spatial: {features['spatial_features'].shape}")
print(f" Input size: {features['input_size']}")Multi-scale features:
scale_1.00:
Features: torch.Size([2, 256])
Spatial: torch.Size([2, 256, 28, 28])
Input size: torch.Size([224, 224])
scale_0.75:
Features: torch.Size([2, 256])
Spatial: torch.Size([2, 256, 21, 21])
Input size: torch.Size([168, 168])
scale_0.50:
Features: torch.Size([2, 256])
Spatial: torch.Size([2, 256, 14, 14])
Input size: torch.Size([112, 112])
scale_0.25:
Features: torch.Size([2, 256])
Spatial: torch.Size([2, 256, 7, 7])
Input size: torch.Size([56, 56])class AttentionExtractor:
"""Extract and visualize attention maps"""
def __init__(self, model):
self.model = model
self.attention_maps = {}
self.hooks = []
def register_attention_hooks(self):
"""Register hooks for attention layers"""
def attention_hook(name):
def hook(module, input, output):
# For attention mechanisms, we typically want the attention weights
# This is a simplified example - actual implementation depends on model architecture
if hasattr(module, 'attention_weights'):
self.attention_maps[name] = module.attention_weights.detach().cpu()
elif isinstance(output, tuple) and len(output) > 1:
# Assume second output contains attention weights
self.attention_maps[name] = output[1].detach().cpu()
elif hasattr(output, 'attentions'):
self.attention_maps[name] = output.attentions.detach().cpu()
return hook
# Look for attention-related modules
for name, module in self.model.named_modules():
if 'attention' in name.lower() or 'attn' in name.lower():
handle = module.register_forward_hook(attention_hook(name))
self.hooks.append(handle)
print(f"Registered attention hook: {name}")
def extract_attention(self, images):
"""Extract attention maps"""
self.attention_maps.clear()
with torch.no_grad():
_ = self.model(images)
return self.attention_maps.copy()
def visualize_attention(self, image, attention_map, alpha=0.6):
"""Visualize attention map overlaid on image"""
# Convert image to RGB if needed
if image.shape[0] > 3:
# Use first 3 channels as RGB
rgb_image = image[:3]
else:
rgb_image = image
# Normalize image for display
rgb_image = (rgb_image - rgb_image.min()) / (rgb_image.max() - rgb_image.min())
rgb_image = rgb_image.permute(1, 2, 0).numpy()
# Process attention map
if attention_map.dim() > 2:
attention_map = attention_map.mean(dim=0) # Average over heads/channels
# Resize attention map to match image size
attention_resized = F.interpolate(
attention_map.unsqueeze(0).unsqueeze(0),
size=rgb_image.shape[:2],
mode='bilinear',
align_corners=False
).squeeze().numpy()
# Create visualization
fig, axes = plt.subplots(1, 3, figsize=(15, 5))
# Original image
axes[0].imshow(rgb_image)
axes[0].set_title('Original Image')
axes[0].axis('off')
# Attention map
axes[1].imshow(attention_resized, cmap='hot')
axes[1].set_title('Attention Map')
axes[1].axis('off')
# Overlay
axes[2].imshow(rgb_image)
axes[2].imshow(attention_resized, alpha=alpha, cmap='hot')
axes[2].set_title('Attention Overlay')
axes[2].axis('off')
plt.tight_layout()
plt.show()
def remove_hooks(self):
"""Remove attention hooks"""
for hook in self.hooks:
hook.remove()
self.hooks.clear()
# Create attention extractor (mock example)
attention_extractor = AttentionExtractor(model)
# attention_extractor.register_attention_hooks() # Would need actual attention layers
print("Attention extractor ready (requires model with attention layers)")Attention extractor ready (requires model with attention layers)class GradCAM:

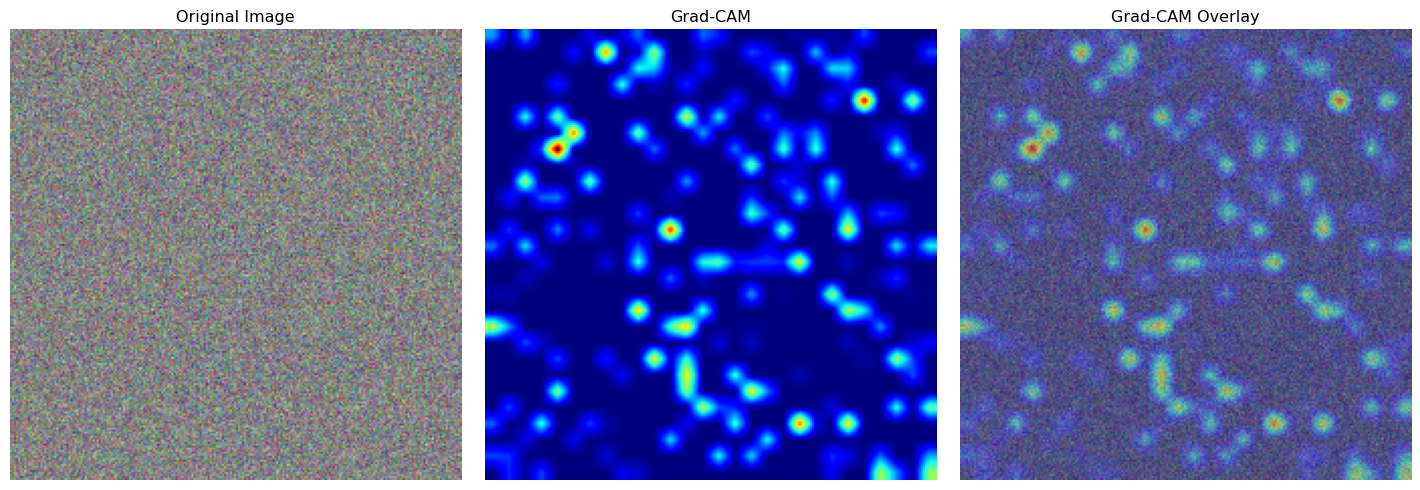

"""Gradient-weighted Class Activation Mapping"""
def __init__(self, model, target_layer):
self.model = model
self.target_layer = target_layer
self.gradients = None
self.activations = None
# Register hooks
self.register_hooks()
def register_hooks(self):
"""Register hooks for gradients and activations"""
def backward_hook(module, grad_input, grad_output):
self.gradients = grad_output[0].detach()
def forward_hook(module, input, output):
self.activations = output.detach()
# Find target layer
target_module = dict(self.model.named_modules())[self.target_layer]
target_module.register_forward_hook(forward_hook)
target_module.register_backward_hook(backward_hook)
def generate_cam(self, images, class_idx=None):
"""Generate Class Activation Map"""
# Enable gradients
images.requires_grad_(True)
# Forward pass
outputs = self.model(images)
# If class_idx not specified, use predicted class
if class_idx is None:
class_idx = outputs.argmax(dim=1)
# Backward pass for target class
self.model.zero_grad()
class_loss = outputs[0, class_idx[0]] if isinstance(class_idx, torch.Tensor) else outputs[0, class_idx]
class_loss.backward()
# Compute CAM
gradients = self.gradients[0] # First image in batch
activations = self.activations[0] # First image in batch
# Global average pooling of gradients
weights = torch.mean(gradients, dim=[1, 2])
# Weighted combination of activation maps
cam = torch.zeros(activations.shape[1], activations.shape[2])
for i, w in enumerate(weights):
cam += w * activations[i]
# Apply ReLU and normalize
cam = F.relu(cam)
cam = cam / torch.max(cam) if torch.max(cam) > 0 else cam
return cam
def visualize_cam(self, image, cam, alpha=0.4):
"""Visualize CAM overlaid on original image"""
# Convert image for display
if image.shape[0] > 3:
display_image = image[:3] # Use first 3 channels
else:
display_image = image
display_image = (display_image - display_image.min()) / (display_image.max() - display_image.min())
display_image = display_image.permute(1, 2, 0).detach().numpy()
# Resize CAM to match image size
cam_resized = F.interpolate(
cam.unsqueeze(0).unsqueeze(0),
size=display_image.shape[:2],
mode='bilinear',
align_corners=False
).squeeze().numpy()
# Create visualization
fig, axes = plt.subplots(1, 3, figsize=(15, 5))
axes[0].imshow(display_image)
axes[0].set_title('Original Image')
axes[0].axis('off')
axes[1].imshow(cam_resized, cmap='jet')
axes[1].set_title('Grad-CAM')
axes[1].axis('off')
axes[2].imshow(display_image)
axes[2].imshow(cam_resized, alpha=alpha, cmap='jet')
axes[2].set_title('Grad-CAM Overlay')
axes[2].axis('off')
plt.tight_layout()
plt.show()
# Create GradCAM for conv3 layer
gradcam = GradCAM(model, target_layer='conv3')
# Generate CAM
sample_input = torch.randn(1, 6, 224, 224)
cam = gradcam.generate_cam(sample_input)
print(f"Generated CAM shape: {cam.shape}")
print(f"CAM range: [{cam.min():.3f}, {cam.max():.3f}]")
# Visualize
gradcam.visualize_cam(sample_input[0], cam)Generated CAM shape: torch.Size([28, 28])
CAM range: [0.000, 1.000]/Users/kellycaylor/mambaforge/envs/geoAI/lib/python3.11/site-packages/torch/nn/modules/module.py:1842: FutureWarning:
Using a non-full backward hook when the forward contains multiple autograd Nodes is deprecated and will be removed in future versions. This hook will be missing some grad_input. Please use register_full_backward_hook to get the documented behavior.

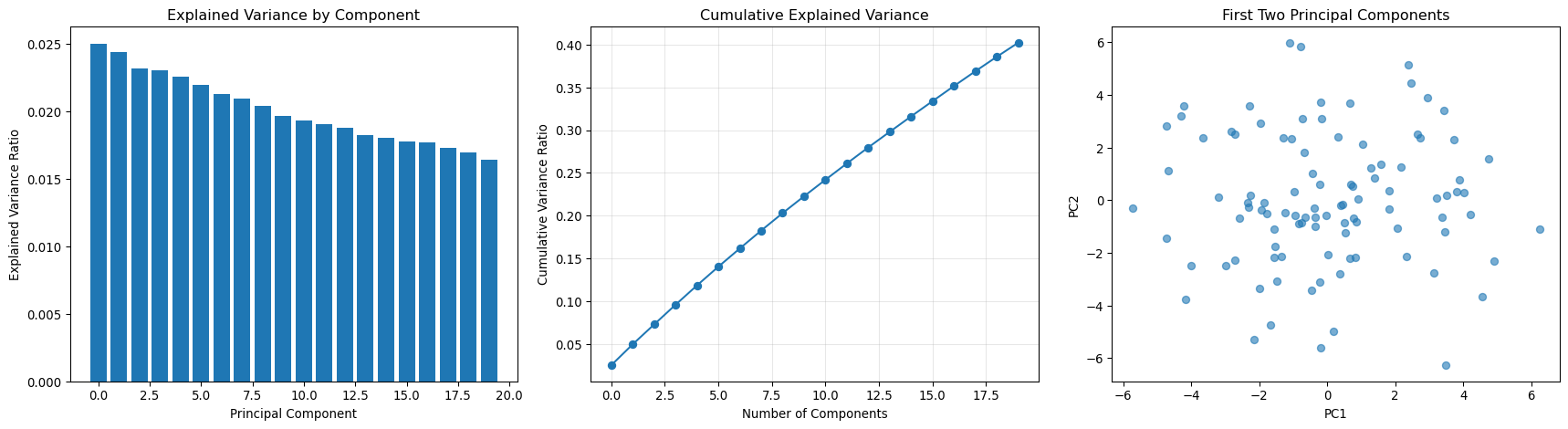

def analyze_features_pca(features, n_components=50, visualize=True):
"""Analyze features using PCA"""
# Flatten features if needed
if features.dim() > 2:
original_shape = features.shape
features_flat = features.view(features.shape[0], -1)
else:
features_flat = features
original_shape = features.shape
# Convert to numpy
features_np = features_flat.numpy()
# Apply PCA
pca = PCA(n_components=n_components)
features_pca = pca.fit_transform(features_np)
# Analyze explained variance
explained_var_ratio = pca.explained_variance_ratio_
cumulative_var = np.cumsum(explained_var_ratio)
if visualize:
fig, axes = plt.subplots(1, 3, figsize=(18, 5))
# Explained variance
axes[0].bar(range(len(explained_var_ratio)), explained_var_ratio)
axes[0].set_title('Explained Variance by Component')
axes[0].set_xlabel('Principal Component')
axes[0].set_ylabel('Explained Variance Ratio')
# Cumulative explained variance
axes[1].plot(cumulative_var, marker='o')
axes[1].set_title('Cumulative Explained Variance')
axes[1].set_xlabel('Number of Components')
axes[1].set_ylabel('Cumulative Variance Ratio')
axes[1].grid(True, alpha=0.3)
# First two components
axes[2].scatter(features_pca[:, 0], features_pca[:, 1], alpha=0.6)
axes[2].set_title('First Two Principal Components')
axes[2].set_xlabel('PC1')
axes[2].set_ylabel('PC2')
plt.tight_layout()
plt.show()
return {
'features_pca': features_pca,
'explained_variance_ratio': explained_var_ratio,
'cumulative_variance': cumulative_var,
'pca_model': pca
}
# Generate sample features for analysis
sample_features = torch.randn(100, 256) # 100 samples, 256 features
pca_results = analyze_features_pca(sample_features, n_components=20)
print(f"PCA features shape: {pca_results['features_pca'].shape}")
print(f"First 5 components explain {pca_results['cumulative_variance'][4]:.1%} of variance")
PCA features shape: (100, 20)
First 5 components explain 11.8% of variancedef visualize_features_tsne(features, labels=None, perplexity=30, random_state=42):
"""Visualize features using t-SNE"""
# Flatten features if needed
if features.dim() > 2:
features_flat = features.view(features.shape[0], -1)
else:
features_flat = features
features_np = features_flat.numpy()
# Apply t-SNE
print("Computing t-SNE embedding...")
tsne = TSNE(n_components=2, perplexity=perplexity, random_state=random_state)
features_tsne = tsne.fit_transform(features_np)
# Create visualization
plt.figure(figsize=(10, 8))
if labels is not None:
# Color by labels
unique_labels = np.unique(labels)
colors = plt.cm.tab10(np.linspace(0, 1, len(unique_labels)))
for i, label in enumerate(unique_labels):
mask = labels == label
plt.scatter(features_tsne[mask, 0], features_tsne[mask, 1],
c=[colors[i]], label=f'Class {label}', alpha=0.6)
plt.legend()
else:
plt.scatter(features_tsne[:, 0], features_tsne[:, 1], alpha=0.6)
plt.title('t-SNE Visualization of Features')
plt.xlabel('t-SNE 1')
plt.ylabel('t-SNE 2')
plt.grid(True, alpha=0.3)
plt.show()
return features_tsne
# Generate sample data with labels
sample_features = torch.randn(200, 256)
sample_labels = np.random.randint(0, 5, 200) # 5 classes
# Visualize with t-SNE
tsne_features = visualize_features_tsne(sample_features, sample_labels)
print(f"t-SNE features shape: {tsne_features.shape}")Computing t-SNE embedding...
t-SNE features shape: (200, 2)def quantize_model(model, calibration_data=None):
"""Quantize model for faster inference"""
# Dynamic quantization (post-training)
quantized_model = torch.quantization.quantize_dynamic(
model,
{nn.Linear, nn.Conv2d}, # Layers to quantize
dtype=torch.qint8
)
print("Applied dynamic quantization")
return quantized_model
def compare_inference_speed(original_model, quantized_model, test_input, num_runs=100):
"""Compare inference speed between models"""
import time
# Warm up
for _ in range(10):
with torch.no_grad():
_ = original_model(test_input)
_ = quantized_model(test_input)
# Time original model
start_time = time.time()
for _ in range(num_runs):
with torch.no_grad():
_ = original_model(test_input)
original_time = time.time() - start_time
# Time quantized model
start_time = time.time()
for _ in range(num_runs):
with torch.no_grad():
_ = quantized_model(test_input)
quantized_time = time.time() - start_time
speedup = original_time / quantized_time
print(f"Original model: {original_time:.3f}s")
print(f"Quantized model: {quantized_time:.3f}s")
print(f"Speedup: {speedup:.2f}x")
return speedup
# Create quantized version
model.eval() # Important: set to eval mode
quantized_model = quantize_model(model)
# Compare speeds
test_input = torch.randn(1, 6, 224, 224)
speedup = compare_inference_speed(model, quantized_model, test_input, num_runs=50)Applied dynamic quantization
Original model: 0.305s
Quantized model: 0.301s
Speedup: 1.01xdef find_optimal_batch_size(model, input_shape, device='cpu', max_batch_size=128):
"""Find optimal batch size for memory and speed"""
model.to(device)
model.eval()
batch_sizes = [1, 2, 4, 8, 16, 32, 64]
if max_batch_size > 64:
batch_sizes.extend([128, 256])
batch_sizes = [bs for bs in batch_sizes if bs <= max_batch_size]
results = {}
for batch_size in batch_sizes:
try:
# Create test batch
test_batch = torch.randn(batch_size, *input_shape[1:]).to(device)
# Measure memory and time
if device != 'cpu' and torch.cuda.is_available():
torch.cuda.reset_peak_memory_stats()
start_memory = torch.cuda.memory_allocated()
import time
start_time = time.time()
with torch.no_grad():
for _ in range(10): # Average over multiple runs
outputs = model(test_batch)
elapsed_time = time.time() - start_time
throughput = (batch_size * 10) / elapsed_time # samples per second
if device != 'cpu' and torch.cuda.is_available():
peak_memory = torch.cuda.max_memory_allocated()
memory_per_sample = (peak_memory - start_memory) / batch_size
else:
memory_per_sample = 0
results[batch_size] = {
'throughput': throughput,
'time_per_sample': elapsed_time / (batch_size * 10),
'memory_per_sample': memory_per_sample / (1024**2) # MB
}
print(f"Batch size {batch_size}: {throughput:.1f} samples/sec, "
f"{memory_per_sample / (1024**2):.1f} MB/sample")
except RuntimeError as e:
if "out of memory" in str(e):
print(f"Batch size {batch_size}: Out of memory")
break
else:
raise e
# Find optimal batch size (highest throughput)
if results:
optimal_batch_size = max(results.keys(), key=lambda k: results[k]['throughput'])
print(f"\nOptimal batch size: {optimal_batch_size}")
return optimal_batch_size, results
return 1, results
# Find optimal batch size
optimal_bs, batch_results = find_optimal_batch_size(
model,
input_shape=(1, 6, 224, 224),
device='cpu',
max_batch_size=64
)Batch size 1: 167.5 samples/sec, 0.0 MB/sample
Batch size 2: 152.9 samples/sec, 0.0 MB/sample
Batch size 4: 203.1 samples/sec, 0.0 MB/sample
Batch size 8: 200.3 samples/sec, 0.0 MB/sample
Batch size 16: 222.5 samples/sec, 0.0 MB/sample
Batch size 32: 252.3 samples/sec, 0.0 MB/sample
Batch size 64: 273.1 samples/sec, 0.0 MB/sample
Optimal batch size: 64Key inference and feature extraction techniques: - Basic inference: Single image and batch processing - Feature extraction: Layer-wise and multi-scale features
- Attention visualization: Understanding model focus - Gradient explanations: Grad-CAM for interpretability - Dimensionality reduction: PCA and t-SNE analysis - Optimization: Quantization and batch size tuning - Performance monitoring: Speed and memory profiling
